Ceramic Wire Wound Inductors
AISC-1206
FEATURES:
• Exceptionally high Q compared to non-wirewound inductor,
especially at high frequencies
• Inductance values available from 3.3 nH to 1200nH
Pb
RoHS/RoHS II Compliant
3.56 x 2.16 x 1.52mm
APPLICATIONS:
• Widely applied in the VCO, SAW circuit for GSM, CDMA
Communications
• Bluetooth, W-LAN
• Used in hard disk, notebook computer and other
electronic equipment
STANDARD SPECIFICATIONS:
Part Number
AISC-1206-
Inductance Code
Units
Symbol
AISC-1206-3N3
AISC-1206-6N8
AISC-1206-10N
AISC-1206-12N
AISC-1206-15N
AISC-1206-18N
AISC-1206-22N
AISC-1206-27N
AISC-1206-33N
AISC-1206-39N
AISC-1206-47N
AISC-1206-56N
AISC-1206-68N
AISC-1206-82N
AISC-1206-R10
AISC-1206-R12
AISC-1206-R15
AISC-1206-R18
AISC-1206-R22
AISC-1206-R27
AISC-1206-R33
AISC-1206-R39
AISC-1206-R47
AISC-1206-R56
AISC-1206-R68
AISC-1206-R82
AISC-1206-1R0
AISC-1206-1R2
Inductance
nH
L
3.3
6.8
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
Tolerance
-
-
J, K
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
G,
J, K
Min.
Quality
Factor
-
Q
20
30
40
40
40
45
50
50
50
50
50
55
55
55
55
60
55
60
60
50
45
45
45
45
45
45
45
45
L/Q Test
Freq.
MHz
Freq.
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
100/300
50/300
50/300
50/300
50/150
50/150
50/150
35/150
35/150
35/150
35/150
35/150
Max. DC
Resistance
Ω
DCR
0.07
0.07
0.09
0.09
0.12
0.12
0.12
0.12
0.12
0.12
0.13
0.14
0.26
0.21
0.30
0.30
0.31
0.43
0.56
0.56
0.70
0.80
1.30
1.34
1.58
1.82
2.80
3.20
Max. Rated
Current
mA
Ir
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
900
900
850
800
750
700
670
630
590
530
490
460
430
400
320
300
Min. Self-resonant
Frequency
MHz
S.R.F
6200
5500
4000
3200
3200
2800
2200
1800
1800
1800
1500
1450
1200
1200
1100
1100
950
900
760
730
650
600
550
470
450
420
400
380
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 :2008
CE RTIFIED
Revised: 10.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Ceramic Wire Wound Inductors
AISC-1206
Pb
RoHS/RoHS II Compliant
3.56 x 2.16 x 1.52mm
Test Equipment
Inductance (L): Agilent4287A+Agilent16197A or equivalent, -13dBm or 10mA
Direct Current Resistance (DCR): HIOKI 3540 or equivalent
Q Factor (Q): Agilent4287A+Agilent16197A or equivalent, -13dBm or 10mA
Self-Resonant Frequency (SRF): Agilent4991B+Agilent16197A and HP 8753E or equivalent, -20dBm or 50mV
Rated Current (Ir): Ir is direct electric current as chip surface temperature rose just 20oC against chip initial surface temperature (Ta)
Operating Temperature:
-40ºC to +125ºC
Storage Temperature:
-10ºC to +40ºC, 70% RH max.

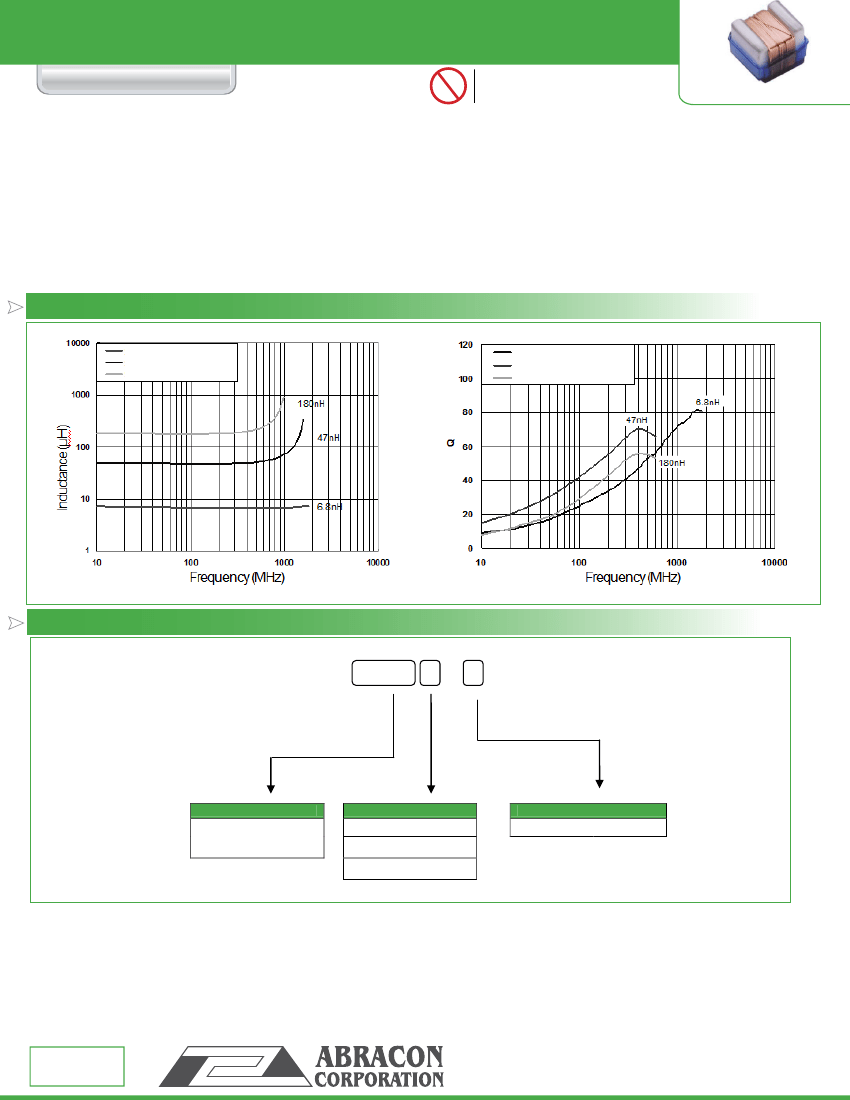

ELECTRICAL CHARACTERISTICS CURVES
AISC-1206-6N8
AISC-1206-47N
AISC-1206-R18
AISC-1206-6N8
AISC-1206-47N
AISC-1206-R18
PART NUMBER IDENTIFICATION
AISC-1206 -
-
Inductance Code
Please
refer to the table
Tolerance Code
G:
±2%
J:
±5%
K: ±10%
Packaging
T: Tape & Reel
(2k/reel)
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 :2008
CE RTIFIED
Revised: 10.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Ceramic Wire Wound Inductors
AISC-1206

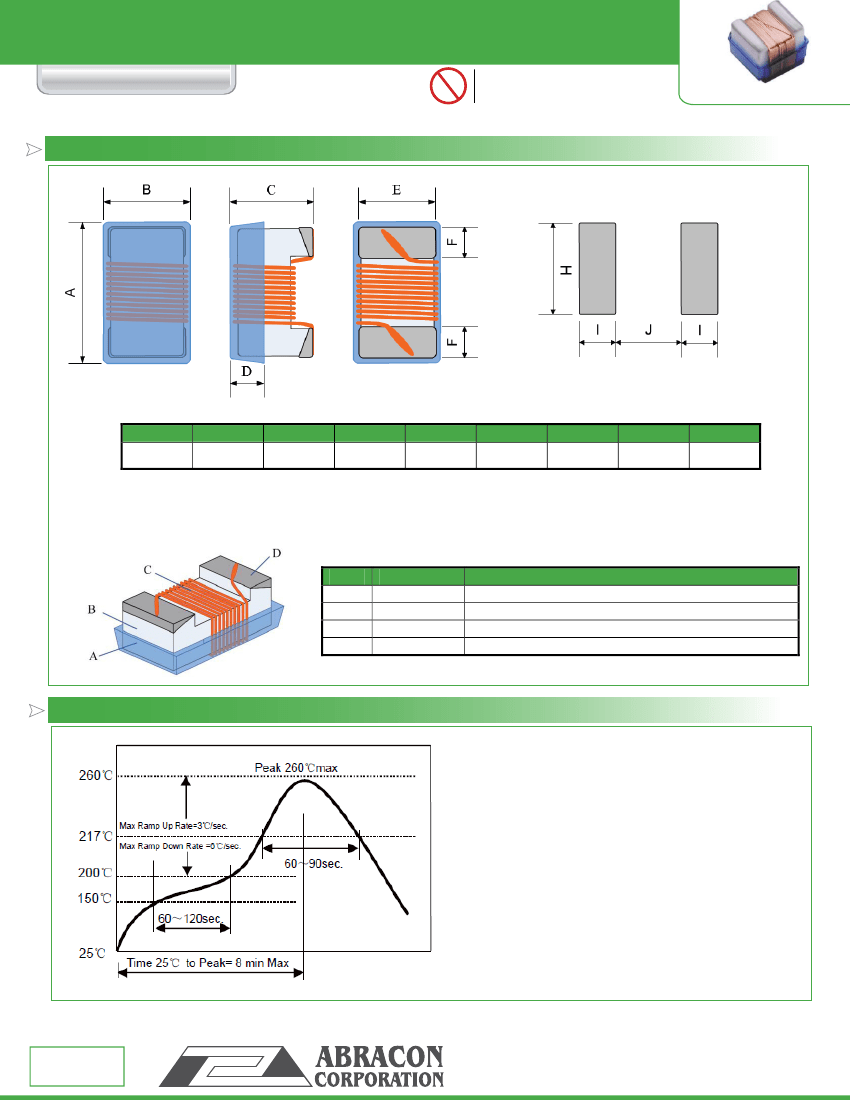

OUTLINE DIMENSIONS:
Pb
RoHS/RoHS II Compliant
3.56 x 2.16 x 1.52mm
A
MAX.
3.56
B
MAX.
2.16
C
MAX.
1.52
D
REF.
0.51
E
1.6±0.2
F
0.5±0.2
H
REF.
1.93
I
REF.
1.02
J
REF.
1.78
Materials
Dimension: mm
No.
A
B
C
D
Components
Coating
Core
Wire
Electrodes
Material
Ultraviolet
epoxy resin
Ceramic
Polyurethane
system enameled copper wire
Mo-Mn with Ni and Au plating
REFLOW PROFILE:
∆
1~2
o
C/sec. Ramp
∆
Pre-heating: 150~190
o
C /90±30 sec.
∆
Time above 240
o
C: 20~40sec
∆
Peak temperature: 260
o
C Max./10sec;
∆
Solder paste: Sn/3.0Ag/0.5Cu
∆
Max.2 times for Re-flowing
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 :2008
CE RTIFIED
Revised: 10.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
Ceramic Wire Wound Inductors
AISC-1206

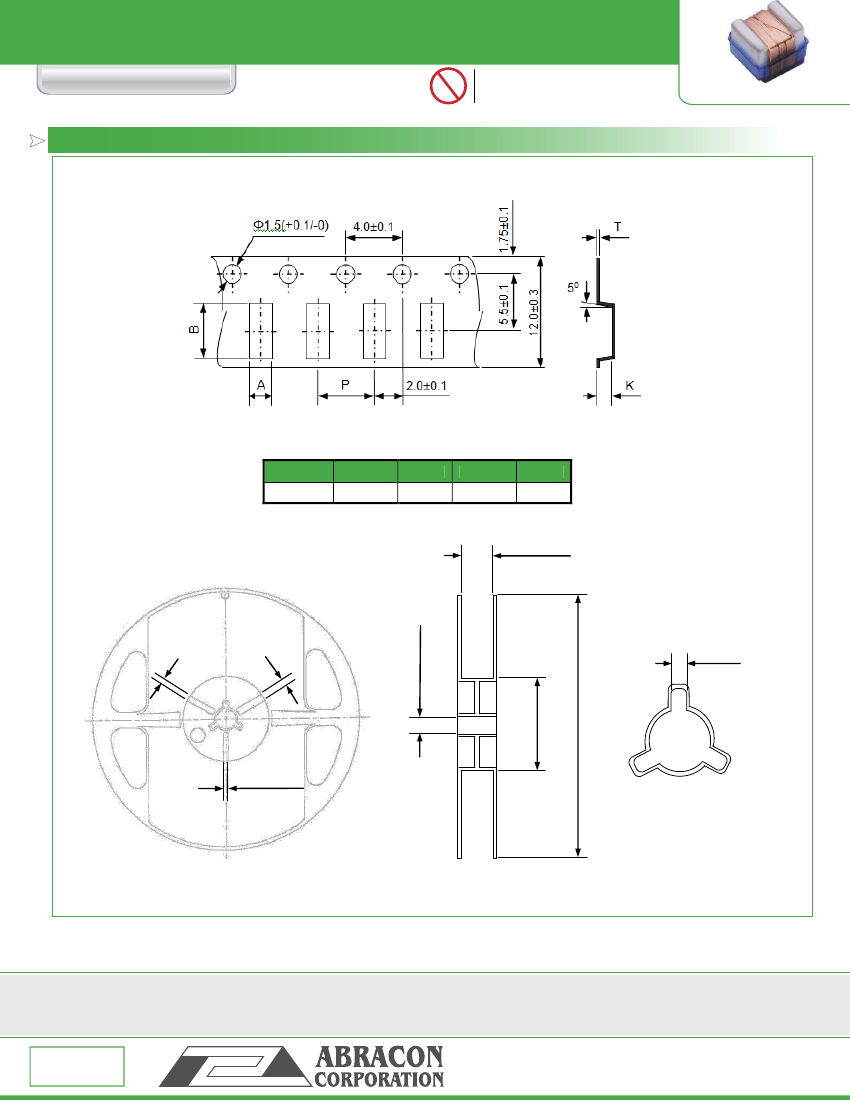

TAPE & REEL:
T= tape and reel (2,000pcs/reel)
Pb
RoHS/RoHS II Compliant
3.56 x 2.16 x 1.52mm
A
2.40±0.2
B
3.80±0.2
P
4.0±0.1
K
1.60±0.3
T
0.3±0.1
10 ±1.5
4.0±0.1
5.0 ±0.1
2.45 ±0.2
13.5 ±0.2
58 ±2
3.0 ±0.1
178 ±2
Dimension: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products;
suitable
for Commercial,
Industrial
and, where designated,
Automotive
Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace,
Life-dependant
Medical applications or any application requiring high reliability where component
failure
could
result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating
environment,
written consent and
authorization
from
Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 :2008
CE RTIFIED
Revised: 10.11.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
