18-136-8AR datasheet, PDF - EEWORLD Datasheet

18-136-8AR: DescriptionWirewound Resistors - Chassis Mount 300watts 8ohms 10% Adjustable Ribwound; CategoryPassive components; File Size2MB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

18-136-8AR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	18-136-8AR	-	-	View	Buy Now

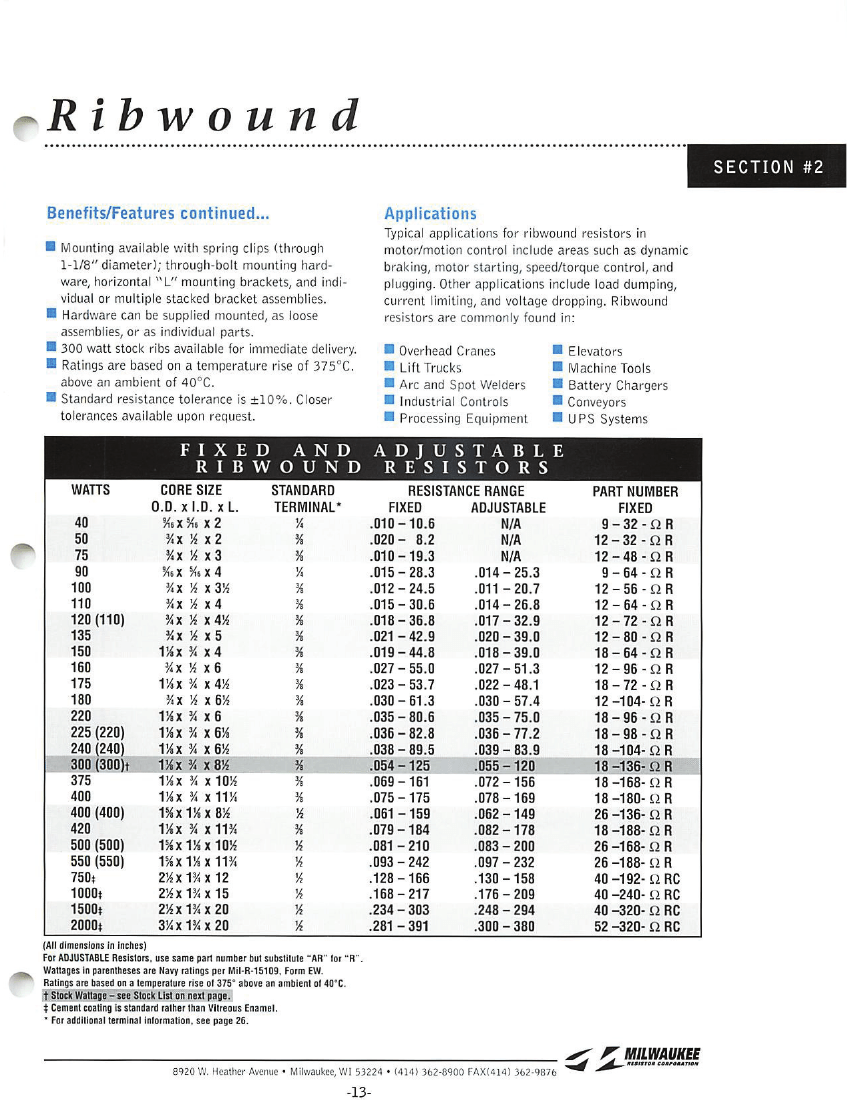

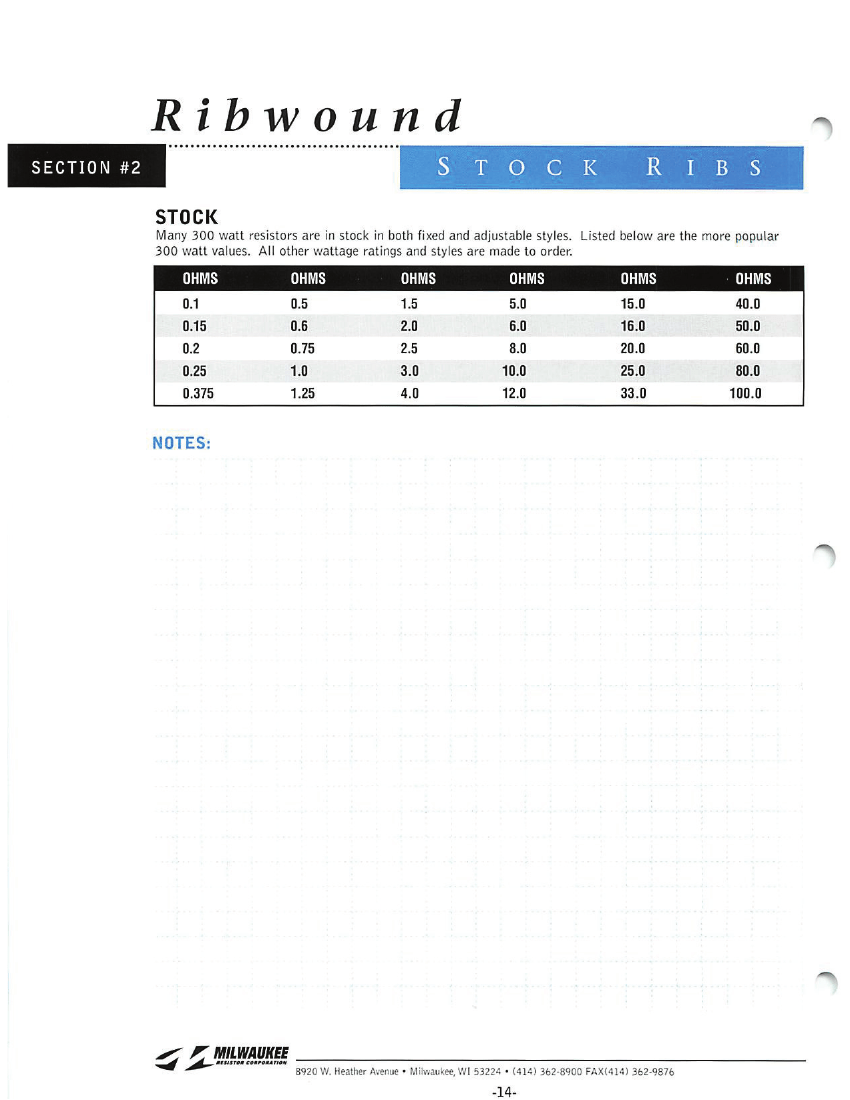

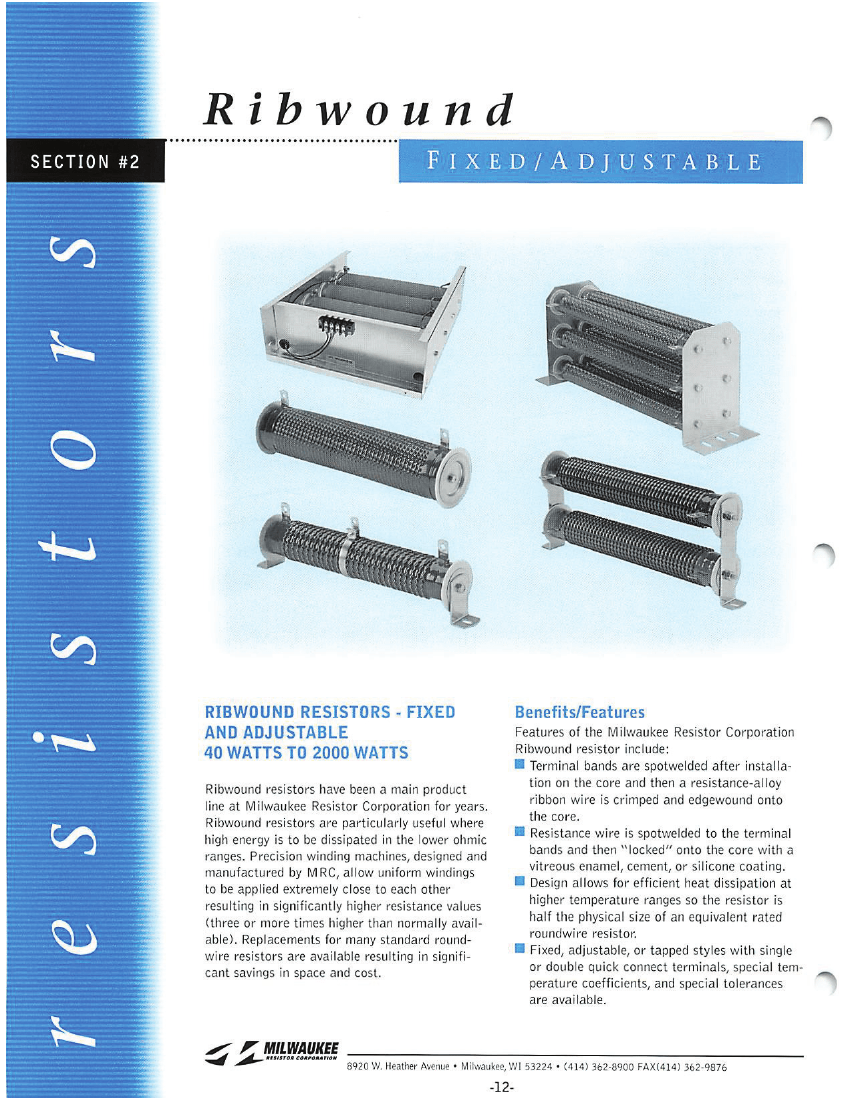

Wirewound Resistors - Chassis Mount 300watts 8ohms 10% Adjustable Ribwound

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Vishay
Product Category	Wirewound Resistors - Chassis Mount
RoHS	Details
Resistance	8 Ohms
Power Rating	300 W
Tolerance	10 %
Operating Temperature Range	0 C to + 375 C
Length	8.5 mm
Packaging	Bulk
Diameter	1.125 mm
Features	Adjustable/Variable Resistors
Technology	Wirewound
Termination Style	Solder Lug
Mounting Style	Chassis Mount
Maximum Operating Temperature	+ 375 C
Minimum Operating Temperature	0 C
Factory Pack Quantity	5
