Power Line Chokes
Current-compensated ring core double chokes
250 V AC, 0.56 … 82 mH, 1 … 16 A,
+40 °C / +45 °C / +55 °C / +60 °C
Series/Type:
Date:
B82725A
January 2018
EPCOS AG 2018. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Power line chokes
Current-compensated ring core double chokes
Rated voltage 250 V AC
Rated inductance 0.56 ... 82 mH
Rated current 1 ... 16 A / +40 °C, +45 °C, +55 °C, +60 °C
Construction
■
■
■
■
■
B82725A
Current-compensated ring core double choke
Ferrite core wih epoxy coating (UL 94 V-0)
Plastic case with in-molded pins (UL 94 V-0)
1)
Potting (UL 94 V-0)
Sector winding
Features
■
■
■
■
■
■
High resonance frequency due to special winding technique
Approx. 1% stray inductance for symmetrical interference suppression
Suitable for wave soldering
Design complies with EN 60938-2 (VDE 0565-2) and UL 1283
UL
2)
and/or ENEC (VDE) approvals
RoHS-compatible
Applications
■
■
■
■
Suppression of common-mode interferences
Switch-mode power applications
Electronic ballasts in lamps
Power inverters
Terminals
■
■
■
■
■
Base material CuNi18Zn20
Layer composition Ni, Sn
Hot-dipped
Pins 1
×
1 (mm)
Lead spacing 40
×
15 (mm)
Marking
■
Product brand, approval signs and VDE standard number, ordering code, graphic symbol, rated
current, rated voltage, rated inductance, date of manufacture (YYWWD.internal ID code)
Delivery mode
■
Blister tray in cardboard box
1) Additionally certified values:
Glow wire flammability index (GWFI to IEC 60695-2-12):
Glow wire ignition temperature (GWIT to IEC 60695-2-13):
Comparative tracking index (CTI to IEC 60112):
Ball pressure test (BP to IEC 60695-10-2):
2) UL approval with 300 V AC
+850 °C
+775 °C
175 V
+125 °C
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
01/18
Power line chokes
Current-compensated ring core double chokes
Dimensional drawing and pin configuration
B82725A
Technical data and measuring conditions
Rated voltage V
R
Test voltage V
test
Rated temperature T
R
Rated current I
R
Rated inductance L
R
250 V AC (50/60 Hz)
1500 V AC, 2 s (line/line)
+40 °C / +45 °C / +55 °C / +60 °C
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 0.1 mA, +20 °C
Measuring frequency: L
R
≤
1 mH = 100 kHz
L
R
> 1 mH = 10 kHz
Inductance is specified per winding.
±30%
at +20 °C
< 10% at DC magnetic bias with I
R
, +20 °C
Measured with Agilent 4284A at 5 mA, +20 °C, typical
values
Measuring frequency: L
R
≤
1 mH = 100 kHz
L
R
> 1 mH = 10 kHz
Measured at +20 °C, typical values, specified per winding
Sn96.5Ag3.0Cu0.5: +(245
±3)
°C, (3
±0.3)
s
Wetting of soldering area
≥
95%
(to IEC 60068-2-20, test Ta)
+(260
±5)
°C, (10
±1)
s
(to IEC 60068-2-20, test Tb)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
≤
75% RH
Approx. 46 g … 72 g
IEC/EN 60938-2, UL 1283 (E70122)
3
01/18
Inductance tolerance
Inductance decrease
ΔL/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability (lead-free)
Resistance to soldering heat
(wave soldering)
Climatic category
Storage conditions (packaged)
Weight
Approvals
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Power line chokes
Current-compensated ring core double chokes
Characteristics and ordering codes
I
R
A
1
1.2
2
4
4
6
8
8
10
12
12
14
16
L
R
mH
68
82
18
14
6.8
3.9
3.9
2.7
1.8
3.3
1.0
1.2
0.56
L
stray,typ
μH
850
800
220
100
75
40
35
25
20
16
14
12
6
R
typ
mΩ
1300
950
330
80
80
40
31
22
14
12
11
10
7
T
R
°C
+60
+60
+60
+60
+60
+60
+40
+60
+60
+60
+55
+45
+40
B82725A2102N001
B82725A2122N020
B82725A2202N001
B82725A2402N020
B82725A2402N001
B82725A2602N001
B82725A2802N020
B82725A2802N001
B82725A2103N001
B82725A2123N040
B82725A2123N001
B82725A2143N020
B82725A2163N020
Ordering code
B82725A
Approvals
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
×
= approval granted
Display of ordering codes for EPCOS products
The ordering code for one and the same product can be represented differently in data sheets,
data books, other publications and the website of EPCOS, or in order-related documents such as
shipping notes, order confirmations and product labels.
The varying representations of the
ordering codes are due to different processes employed and do not affect the
specifications of the respective products.
Detailed information can be found on the Internet
under www.epcos.com/orderingcodes.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
01/18
Power line chokes
Current-compensated ring core double chokes

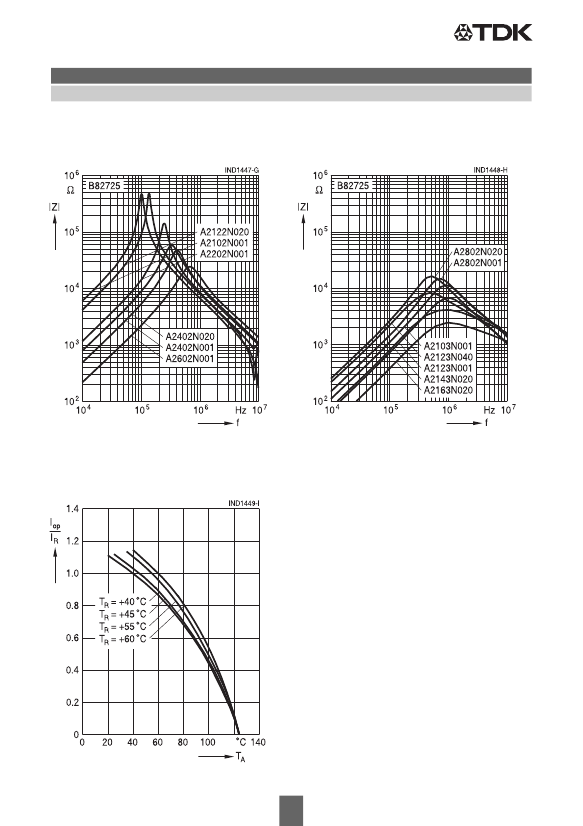

Impedance |Z| versus frequency f
measured with windings in parallel at +20 °C,
typical values
B82725A
Impedance |Z| versus frequency f
measured with windings in parallel at +20 °C,
typical values
Current derating I
op
/I
R
versus temperature T
A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
01/18
