89039-1,-2,-3,-911LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 89039-1,-2,-3,-911LF

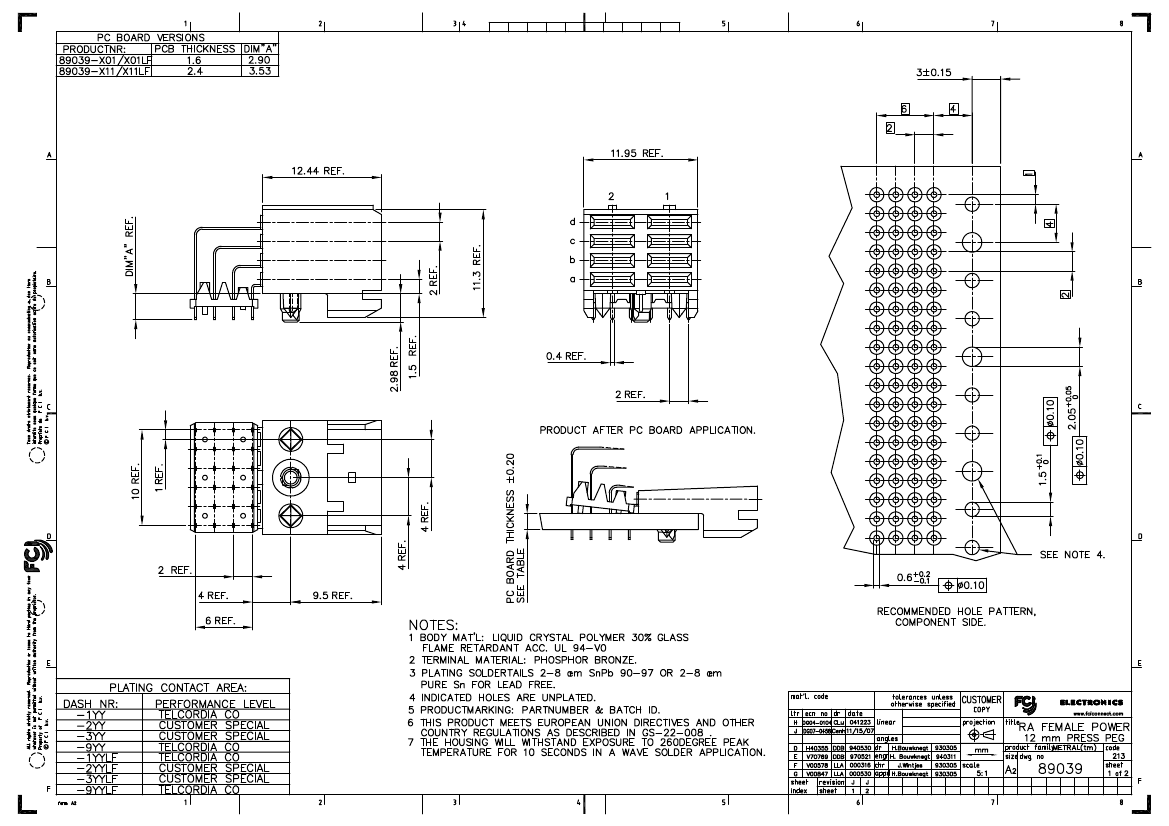

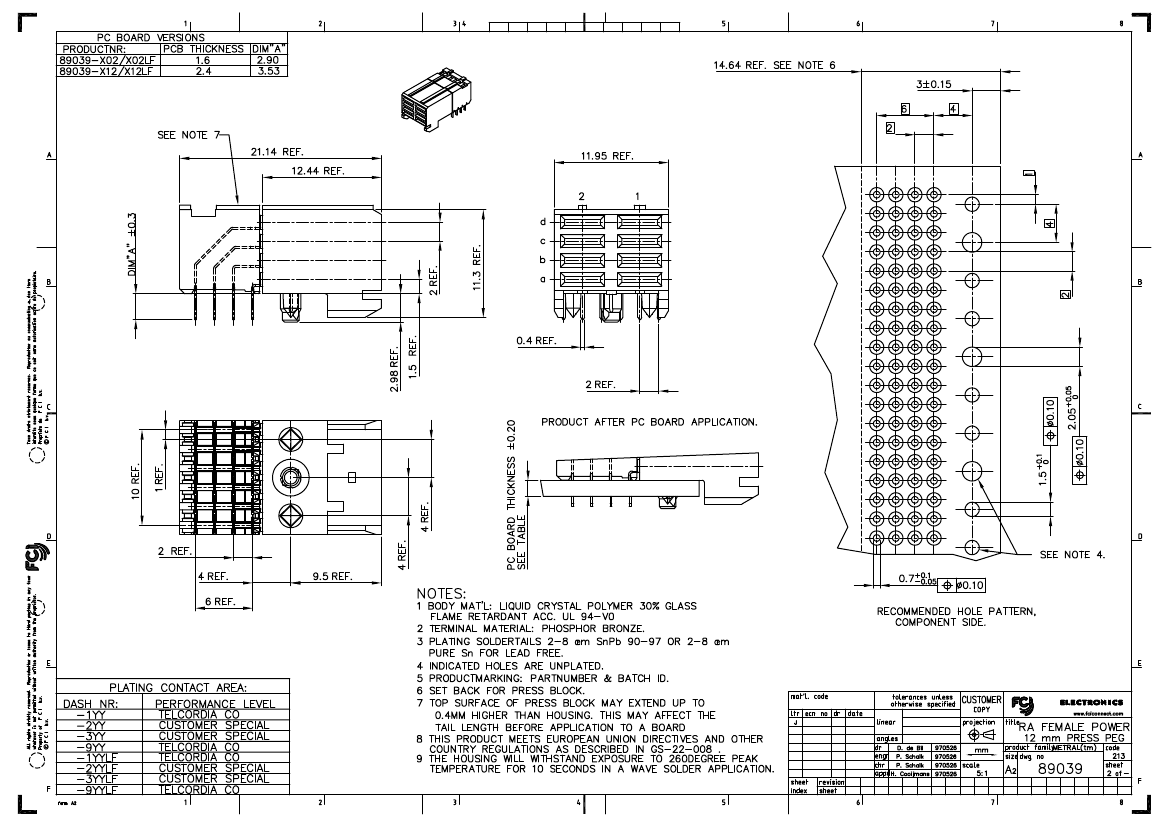

89039-1,-2,-3,-911LF: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size195KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89039-1,-2,-3,-911LF Overview

Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE

89039-1,-2,-3,-911LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	89039
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Nov 23, 2007

89039-1,-2,-3,-911LF Related Products

	89039-1,-2,-3,-911LF	89039-1,-2,-3,-901	89039-1,-2,-3,-911	89039-1,-2,-3,-912	89039-1,-2,-3,-912LF	89039-1,-2,-3,-901LF	89039-1,-2,-3,-902LF	89039-1,-2,-3,-902
Description	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 8 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	TIN LEAD	TIN LEAD	TIN LEAD	TIN	TIN	TIN	TIN LEAD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e0	e3	e3	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	89039	89039	89039	89039	89039	89039	89039	89039
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
