80.010.5102.2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 80.010.5102.2

Preview

80.010.5102.2: DescriptionPower/Signal Relay, DPDT, Momentary, 0.022A (Coil), 24VDC (Coil), 500mW (Coil), 8A (Contact), 30VDC (Contact), DC Input, DC Output, DIN-Rail Mount; CategoryMechanical and electronic products relay; File Size173KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/

Download Datasheet Parametric View All

80.010.5102.2 Overview

Power/Signal Relay, DPDT, Momentary, 0.022A (Coil), 24VDC (Coil), 500mW (Coil), 8A (Contact), 30VDC (Contact), DC Input, DC Output, DIN-Rail Mount

80.010.5102.2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Maximum coil current (DC)	0.022 A
Coil power	500 mW
Coil resistance	1091 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Maximum contact current (DC)	8 A
Contact (DC) maximum rated R load	8A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	DC
Electrical life	100000 Cycle(s)
Installation features	DIN-RAIL MOUNT
operating hours	15 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Guideline	CE; CUL; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	12 ms
seal	IP20
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

flare

MOVE 24VDC-2W-8A

flare MOVE 24VDC-2W-8A

Pluggable coupling relay

24 V DC

80.010.5102.2

Pluggable coupling relay

Input voltage range 17,5 … 40,8 V DC

2 changeover contacts

Mounting width 15,8 mm

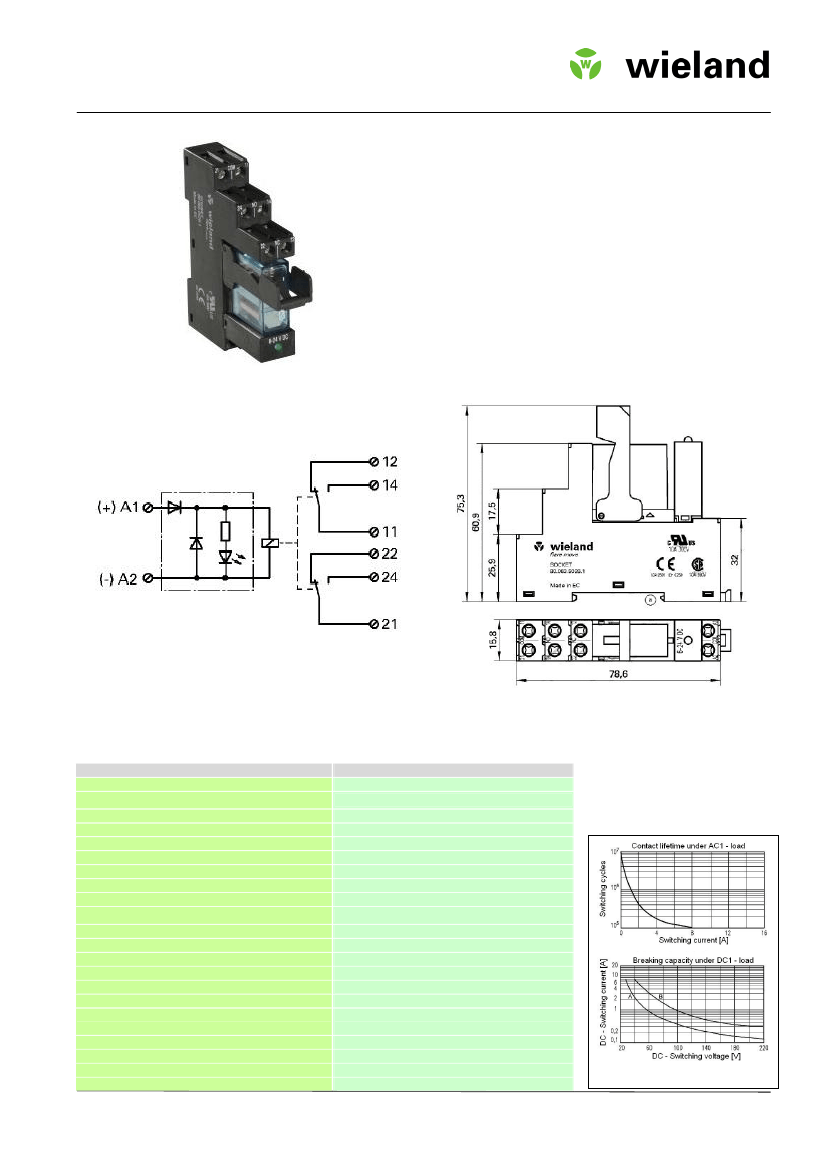

Wiring diagram

Dimensional diagram

Technical Data

flare MOVE 24VDC-2W-8A

Order no. 80.010.5102.2

Coil circuit

Operating voltage

Minimum input voltage

Maximum input voltage

Nominal input current

Nominal input capacity

Status display

24 V DC

17,5 V DC

40,8 V DC

22 mA

0,5 W

LED green

Switching characteristics

Contacts

2 changeover contacts

Contact material

AgNi

Nominal switching voltage

250 V AC

Maximum switching voltage

250 V AC

Maximum continuous current

8 A (see Fig. 1 Load limiting curves)

Maximum starting current

15 A

Maximum switching current

(see Fig. 1 Load limiting curves)

DC1 30 / 110 / 220 V DC

8 A / 0,3 A / 0,12 A

Maximum breaking capacity (ohmic load)

2000 V A

Maximum switching capacity AC 15

400 V A

Minimum selectable voltage

5V

Minimum selectable current

5 mA

Wieland Electric GmbH, Brennerstr. 10–14, D - 96052 Bamberg

www.wieland-electric.com

Fig. 1 Load limiting curves

Type:

flare MOVE 24VDC-2W-8A

Rev.: 06/2012 – Page 1 of 2
