Document 275-1

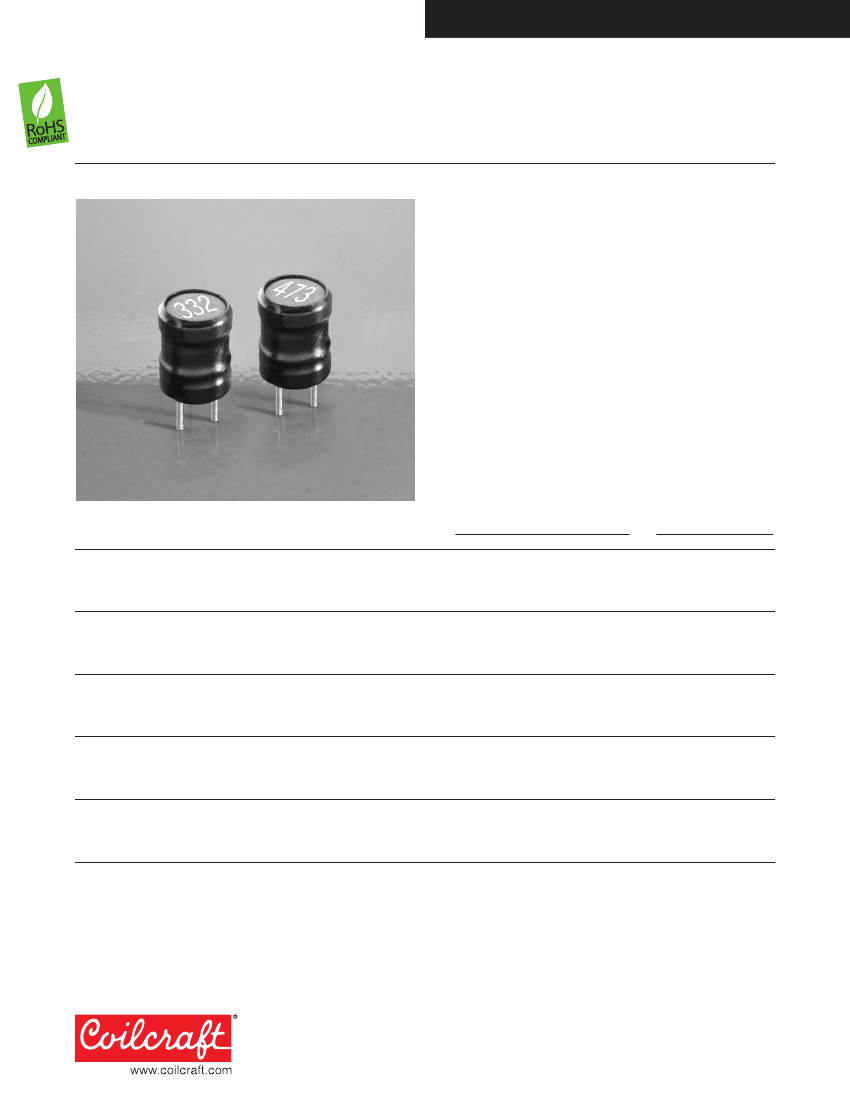

Power Inductors – DR0608 Series
• Small footprint power inductors designed for maximum efficiency
and low cost.
• Ideal for noise filtering in power amplifiers, power supplies and
speaker crossover networks.
• Inductance values from 3.3 to 1000 µH, most at 10% tolerance
• Current ratings up to 6.4 Amps with only 0.012 Ohms DCR
• Industry-standard pin spacings; protective PVC sleeve
Core material
Ferrite
Terminations
RoHS compliant tin-silver over copper
Weight:
1.0 – 1.3 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tray packaging: –40°C to +80°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
300 parts per tray; 1200 parts in optional fan-fold tape
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf
Part
number
DR0608-332L
DR0608-472L
DR0608-562L
DR0608-682L
DR0608-822L
DR0608-103L
DR0608-123L
DR0608-153L
DR0608-183L
DR0608-223L
DR0608-273L
DR0608-333L
DR0608-393L
DR0608-473L
DR0608-563L
DR0608-683L
DR0608-823L
DR0608-104L
DR0608-124L
DR0608-154L
DR0608-184L
DR0608-224L
DR0608-274L
DR0608-334L
DR0608-394L
DR0608-474L
DR0608-564L
DR0608-684L
DR0608-824L
DR0608-105L
Inductance
1
(µH)
3.3 ±20%
4.7 ±20%
5.6 ±20%
6.8 ±20%
8.2 ±20%
10 ±10%
12 ±10%
15 ±10%
18 ±10%
22 ±10%
27 ±10%
33 ±10%
39 ±10%
47 ±10%
56 ±10%
68 ±10%
82 ±10%
100 ±10%
120 ±10%
150 ±10%
180 ±10%
220 ±10%
270 ±10%
330 ±10%
390 ±10%
470 ±10%
560 ±10%
680 ±10%
820 ±10%
1000 ±10%
DCR max
(Ohms)
0.012
0.018
0.022
0.025
0.028
0.035
0.045
0.052
0.065
0.078
0.086
0.12
0.13
0.16
0.19
0.25
0.28
0.38
0.42
0.50
0.65
0.73
0.96
1.11
1.25
1.60
1.85
2.40
2.70
3.00
SRF typ
2
(MHz)
40
36
32
30
25
23
20
19
17
16
12
11
10
9.5
9.0
9.0
7.0
6.5
6.0
5.5
5.0
4.8
4.0
3.7
3.0
2.8
2.5
2.5
2.1
2.1
10% drop
5.3
4.6
4.6
3.9
3.6
3.2
2.8
2.7
2.4
2.1
1.9
1.7
1.6
1.4
1.3
1.3
1.2
1.0
0.96
0.83
0.76
0.73
0.69
0.60
0.59
0.50
0.47
0.43
0.40
0.35
Isat
(A)
3
20% drop 30% drop
6.1
6.4
5.4
5.8
5.2
5.5
4.5
4.8
4.1
4.4
3.6
4.0
3.2
3.5
3.0
3.2
2.7
2.9
2.5
2.7
2.2
2.4
2.0
2.2
1.9
2.0
1.7
1.8
1.5
1.7
1.4
1.5
1.3
1.4
1.2
1.3
1.0
1.1
0.93
1.0
0.85
0.93
0.83
0.89
0.77
0.82
0.68
0.72
0.66
0.70
0.56
0.61
0.53
0.56
0.48
0.51
0.45
0.48
0.40
0.43
Irms
(A)
4
20°C rise 40°C rise
5.0
7.5
4.6
6.9
4.2
6.3
3.8
5.7
3.4
5.1
3.0
4.5
2.8
4.2
2.7
4.0
2.5
3.7
2.3
3.4
2.2
3.2
2.0
2.9
1.8
2.6
1.7
2.4
1.5
2.1
1.3
1.8
1.2
1.6
1.0
1.3
0.94
1.23
0.88
1.15
0.82
1.08
0.76
1.00
0.70
0.93
0.64
0.85
0.58
0.78
0.52
0.70
0.46
0.63
0.40
0.55
0.34
0.48
0.30
0.40
1. To order parts packaged in optional fanfold tape (1200 parts per box), add
the letter “F” at the end of the part number, e.g. DR0608-824LF
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-
meter or equivalent.
3. SRF measured using an Agilent/HP 4191A or equilvalent.
4. DC current at which the inductance drops the specified amount from its value
without current
5. Current that causes the specified temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 275-1
Revised 05/14/13
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 275-2
Power Inductors - DR0608 Series

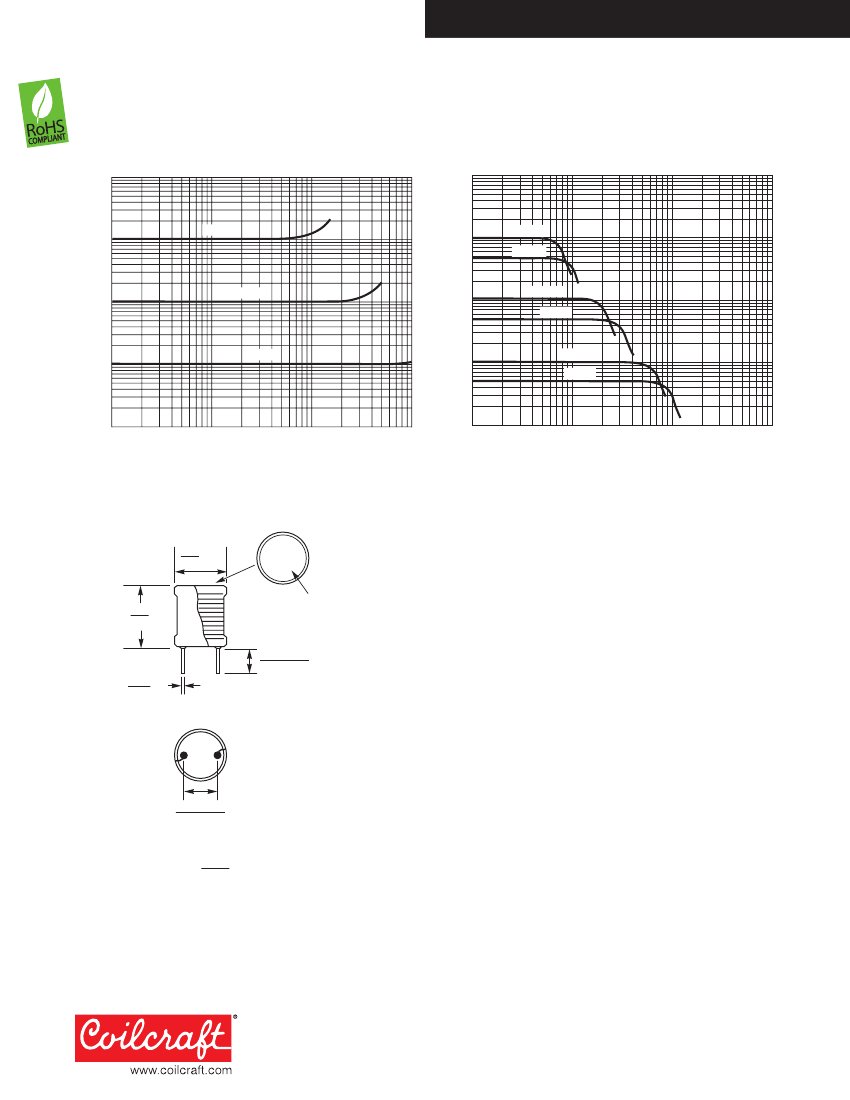

Typical L vs Frequency
10000
1000 µH
Typical L vs Current
10,000
1000 µH
470 µH
1000
1000
Inductance (µH)
Inductance (µH)
100
100 µH
100
100 µH
47 µH
10
10 µH
10
10 µH
4.7 µH
1
1
0.01
0.1
1
10
0.1
1
10
100
Frequency (MHz)
Current (A)
0.41
max
10,5
0.30 max
7,5
XXX
Dash number
XXX
Dash number
0.47
max
12,0
0.39
max
10,0
0.157 ±0.02
4,0 ±0,5
0.024 dia
0,6
0.024
dia
0,6
0.157 ±0.02
4,0 ±0,5
0.138 ±0.02
3,5 ±0,5
0.197 ±0.02
5,0 ±0,5
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 275-2
Revised 05/14/13
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
