ECS-250-20-5PXDU-F-TR datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-250-20-5PXDU-F-TR

Preview

ECS-250-20-5PXDU-F-TR: DescriptionECS 25MHz -55 to +125C; CategoryPassive components Crystal/resonator; File Size142KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-250-20-5PXDU-F-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ECS-250-20-5PXDU-F-TR	-	-	View	Buy Now

ECS-250-20-5PXDU-F-TR Overview

ECS 25MHz -55 to +125C

ECS-250-20-5PXDU-F-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
Factory Lead Time	16 weeks
Samacsys Description	Crystals 25MHz -55 to +125C
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.01%
frequency tolerance	30 ppm
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	L11.4XB4.8XH4.3 (mm)/L0.449XB0.189XH0.169 (inch)
Series resistance	30 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

-55 to +125°C Temp Range

Industry Std. Footprint

Pb Free/RoHS Compliant

CSM-7X-DU

SMD CRYSTAL

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

CSM-7X-DU

MIN

3.57

TYP

MAX

70.000

± 30

± 100

7

Series

500

+125

±5

UNITS

MHz

ppm

pF

µW

°C

ppm

at +25°C

-55 to +125°C

Specify in P/N

10

-55

@ +25°C ±3°C

20

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

3.57 ~ 4.999

Fundamental

150

13.000 ~ 19.999

Fundamental

40

5.000 ~ 5.999

Fundamental

100

20.000 ~ 30.000

Fundamental

30

6.000 ~ 6.999

Fundamental

80

26.000 ~ 39.999

3rd Overtone

100

7.000 ~ 8.999

Fundamental

60

40.000 ~ 70.000

3rd Overtone

80

9.000 ~ 12.999

Fundamental

50

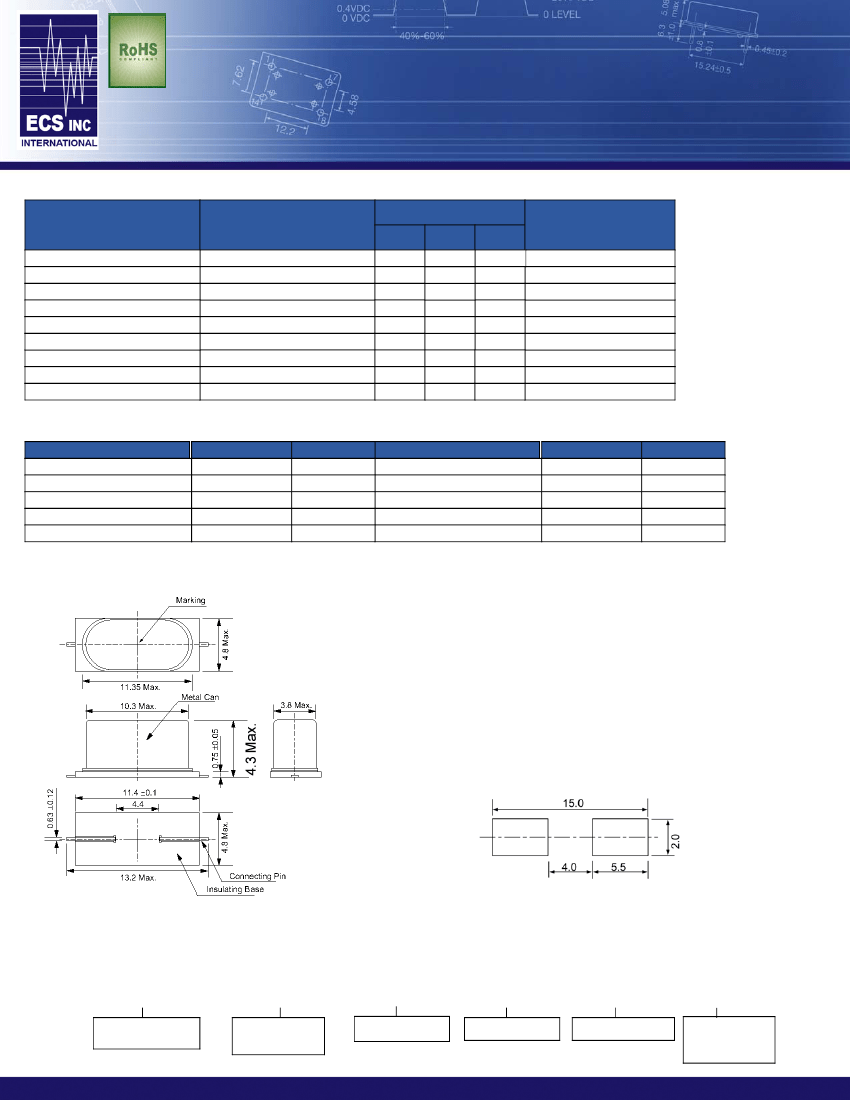

DIMENSIONS (mm)

Figure 1) Top, Side, Bottom and End views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-5PXDU-TR

ECS - Frequency Abbreviation - Load Capacitance

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

- Package

5PX = CSM-7X

Stability

D= ± 100 ppm

Temperature

U= -55 ~ +125°C

-

Packaging

TR= Tape

& Reel

1K/Reel

www.ecsxtal.com

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991
