Type AVGA
–40 °C to +105 °C
High Capacitance SMT Aluminum Electrolytic Capacitors
For Filtering, Bypassing and Power Supply Decoupling with High Capacitance Requirements

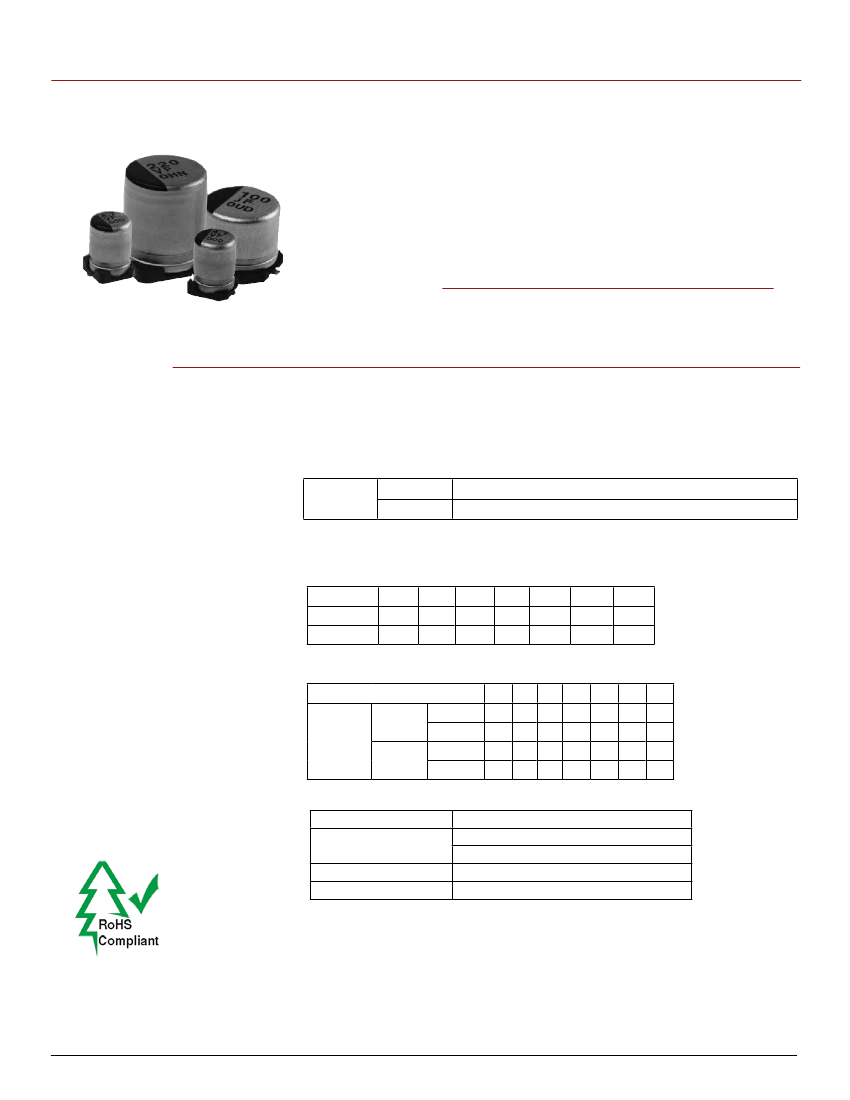

Type AVGA Capacitors are rated for 2000 hours at 105 ºC and up to 63
Vdc. They are ideal for high density PC board packaging. The Type
AVGA offers a low in-place-cost for a high quality performer. The
vertical cylindrical cases facilitate automatic mounting and reflow
soldering into the same footprint of like-rated tantalum capacitors
except without the need for voltage derating. Type AVGA is RoHS
compliant.
Highlights
•
+105
°C,
Up to 2000 Hours Load Life
•
Capacitance Range: 0.1 µF to 4700 µF
•
Voltage Range: 6.3 Vdc to 63 Vdc
–40 °C to +105 °C
6.3, 10, 16, 25, 35, 50, 63 Vdc
0.1µF to 4700 µF
±20% @ 120 Hz and +20 °C
6.3 – 63 V
4 – 10 Ø
12.5 ~ 16 Ø
I = 0.01 CV or 3 µA, whichever is greater, after 2 minutes at +20 ºC
I = 0.03 CV or 4 µA, whichever is greater, after 2 minutes at +20 ºC
C = rated capacitance in µF
V = rated DC Working voltage in V
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Leakage Current (at 20 ºC):
I = leakage current
Dissipation Factor:
(Tan
d
at 120 Hz, 20 ºC)
Rated Voltage
4 ~ 10 Ø
12.5 ~ 16 Ø
6.3
0.45
0.4
10
0.35
0.38
16
0.28
0.34
25
0.18
0.26
35
0.16
0.22
50
0.14
0.18
63
0.12
0.14
Low Temperature
Characteristic (at 120 Hz):
When the capacitance exceeds 1000 µF, .02 shall be added for every 1000 µF increase
Rated Voltage
Z(–25 ºC)
4 ~ 10 Ø
6.3
4
10
3
4
8
16
2
3
6
25
2
2
4
35
2
2
3
50
2
2
3
63
2
2
3
Impedance
/Z(+20 ºC) 12.5 ~ 16 Ø 5
Ratio
Z(–40 ºC) 4 ~ 10 Ø 12
/Z(+20 ºC) 12.5 ~ 16 Ø 10 8
6
4
3
3
3
Impedance ratio shall not exceed the values given in the table above.
Load Life Test:
Test Time
Capacitance Change
Dissipation Factor
Leakage Current
8 ~ 16 Ø
2,000 Hours
4 ~ 6.3 Ø : Within ±25 % of initial value
: Within ±20 % of initial value
Within specified value
< 200% of specified value
* The above specifications shall be satisfied when the capacitors are
restored to 20 ºC after the rated voltage is applied for 2,000 hrs at 105 ºC
Shelf LifeTest:
Test time: 1000 hours; other items are the same as those for life test.
Complies with the EU Directive 2002/95/EC requirement
restricting the use of Lead (Pb), Mercury (Hg), Cadmium
(Cd), Hexavalent chromium (Cr(VI)), PolyBrominated
Biphenyls (PBB) and PolyBrominated Diphenyl Ethers
(PBDE).
