851-43-050-10-011000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 851-43-050-10-011000

Preview

851-43-050-10-011000: DescriptionIC & Component Sockets STANDARD SOCKET HEADER; CategoryThe connector; File Size331KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

851-43-050-10-011000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	851-43-050-10-011000	-	-	View	Buy Now

851-43-050-10-011000 Overview

IC & Component Sockets STANDARD SOCKET HEADER

851-43-050-10-011000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mill-Max
Product Category	IC & Component Sockets
RoHS	Details
Product	DIP / SIP Sockets
Packaging	Tube
Factory Pack Quantity	8

Preview

Download Datasheet

View All

INTERCONNECTS

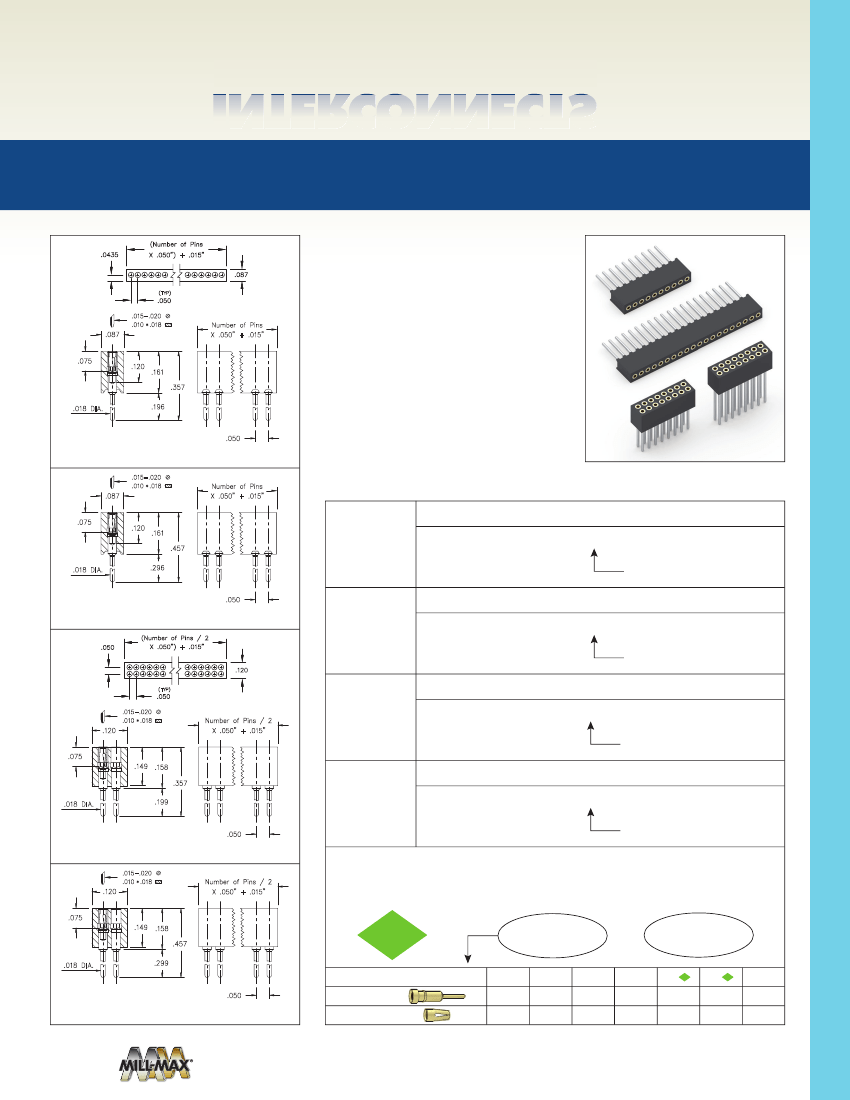

SERIES 851 & 853 • .050” GRID LONG TAIL SOCKETS •

SINGLE AND DOUBLE ROW STRIPS

(Number of Pins

.0435

X .050") + .015"

.087

(TYP)

•

Series 851...011 and 853...011 use MM #4890-1

pins. See page 160 for details

.050

•

Series 851...021 and 853...021 use MM #4890-2

pins. See page 160 for details

Number of Pins

X .050" + .015"

.015-.020

.010 * .018

.087

•

Receptacles use Hi-Rel, 3- nger BeCu #11

contact rated at 3 amps. ( #11 contact accepts

pin diameters from .015”-.020” ). See page 251

for details

.075

.120

.161

.357

.018 DIA.

.196

•

Insulators are high temperature thermoplastic,

.050

FIG. 1

.015-.020

.010 * .018

suitable for all soldering operations

Number of Pins

X .050" + .015"

.087

ORDERING INFORMATION

Series 851...011

Single Row Socket

851 XX 0_ _ 10 011000

Specify number of pins

01-50

.075

.120

.161

.457

FIG. 1

.050

.018 DIA.

.296

FIG. 2

(Number of Pins / 2

.050

X .050") + .015"

Series 851...021

Single Row Socket

851 XX 0_ _ 10 021000

FIG. 2

.120

Specify number of pins

01-50

(TYP)

.050

Series 853...011

Number of Pins / 2

X .050" + .015"

Double Row Socket

853 XX _ _ _ 10 011000

.015-.020

.010 * .018

.120

FIG. 3

Series 853...021

Specify number of pins

.075

.149

.158

.357

.018 DIA.

.199

004-100

Double Row Socket

853 XX _ _ _ 10 021000

FIG. 4

.050

.015-.020

.010 * .018

Number of Pins / 2

X .050" + .015"

.120

.075

.149

.158

.457

.018 DIA.

.299

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

41

200

µ”

Sn

10

µ”

Au

43

200

µ”

Sn

30

µ”

Au

FIG. 4

.050

Sleeve (Pin)

Contact (Clip)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 35 | INTERCONNECTS

FIG. 3

Specify number of pins

004-100

851-43-050-10-011000 Related Products

	851-43-050-10-011000	851-43-050-10-021000	853-43-100-10-011000	853-43-100-10-021000
Description	IC & Component Sockets STANDARD SOCKET HEADER	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets STANDARD SOCKET HEADER
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Mill-Max	Mill-Max	Mill-Max	Mill-Max
Product Category	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets	IC & Component Sockets
Packaging	Tube	Tube	-	Tube
Factory Pack Quantity	8	8	-	8
