HM629127HBJP-20: Description1 M HIGH SPEED SRAM(128-KWORD X 9-BIT); Categorystorage storage; File Size384KB，11 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HM629127HBJP-20 Overview

1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)

HM629127HBJP-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	SOJ
package instruction	SOJ, SOJ36,.44
Contacts	36
Reach Compliance Code	unknow
ECCN code	3A991.B.2.A
Maximum access time	20 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON
JESD-30 code	R-PDSO-J36
JESD-609 code	e0
length	23.25 mm
memory density	1179648 bi
Memory IC Type	CACHE SRAM
memory width	9
Number of functions	1
Number of terminals	36
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX9
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ36,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum standby current	0.002 A
Minimum standby current	4.5 V
Maximum slew rate	0.15 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

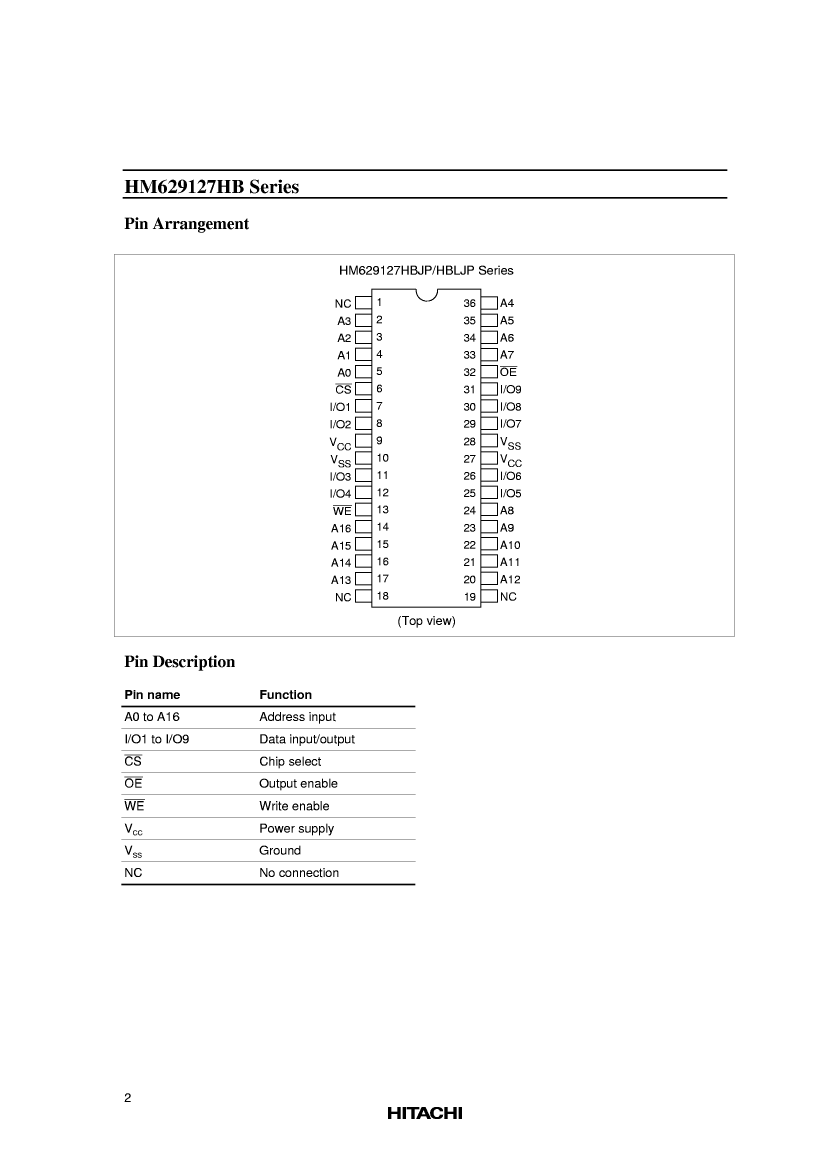

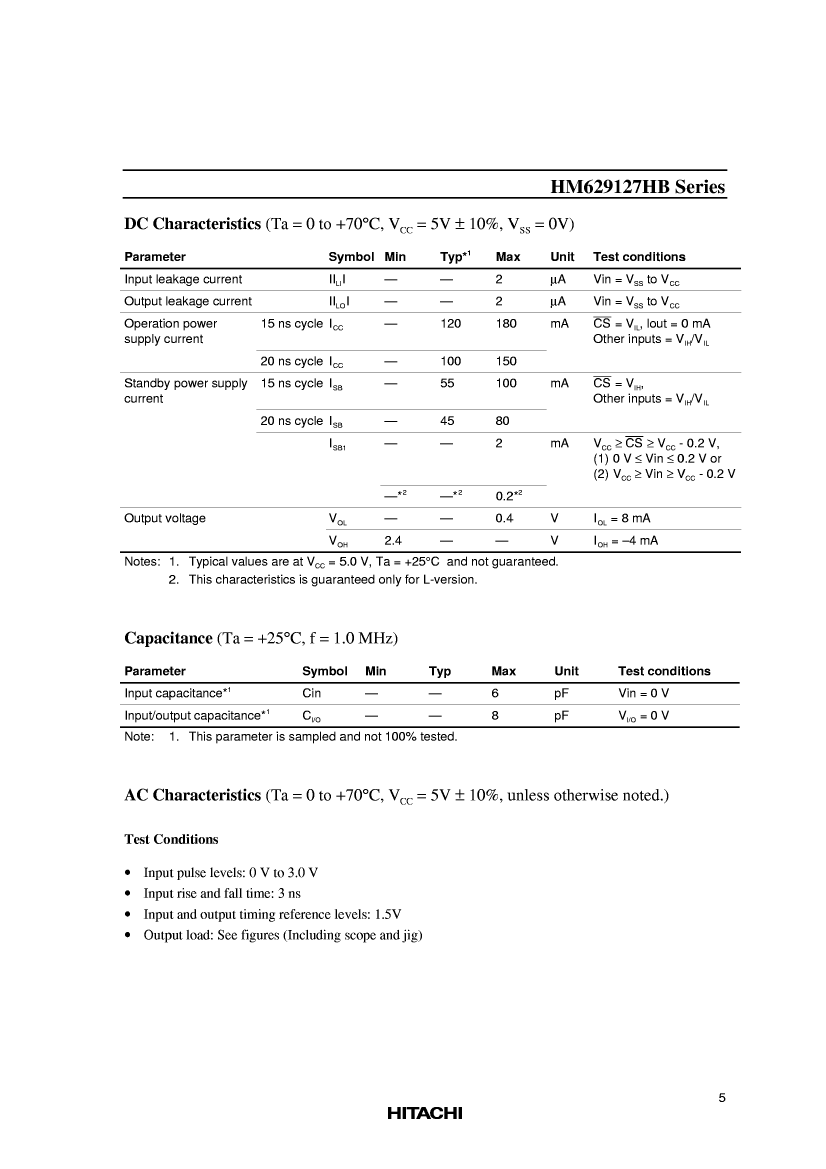

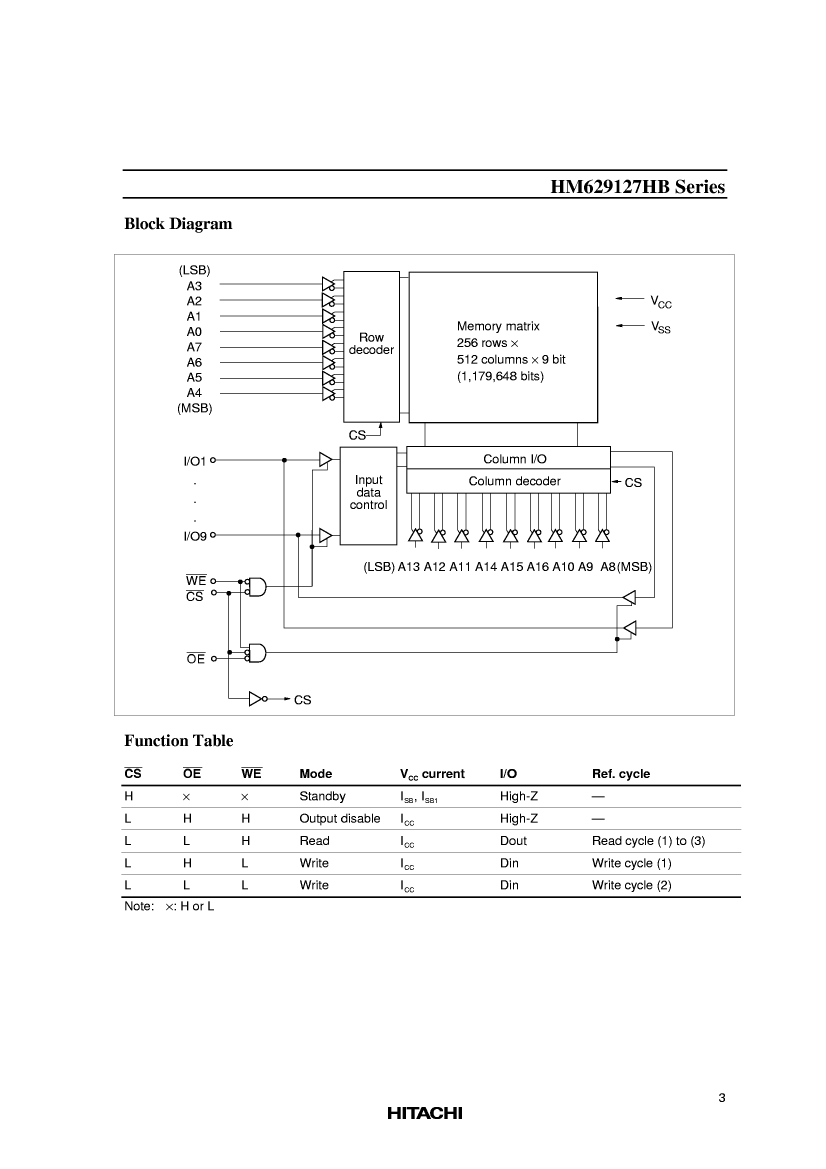

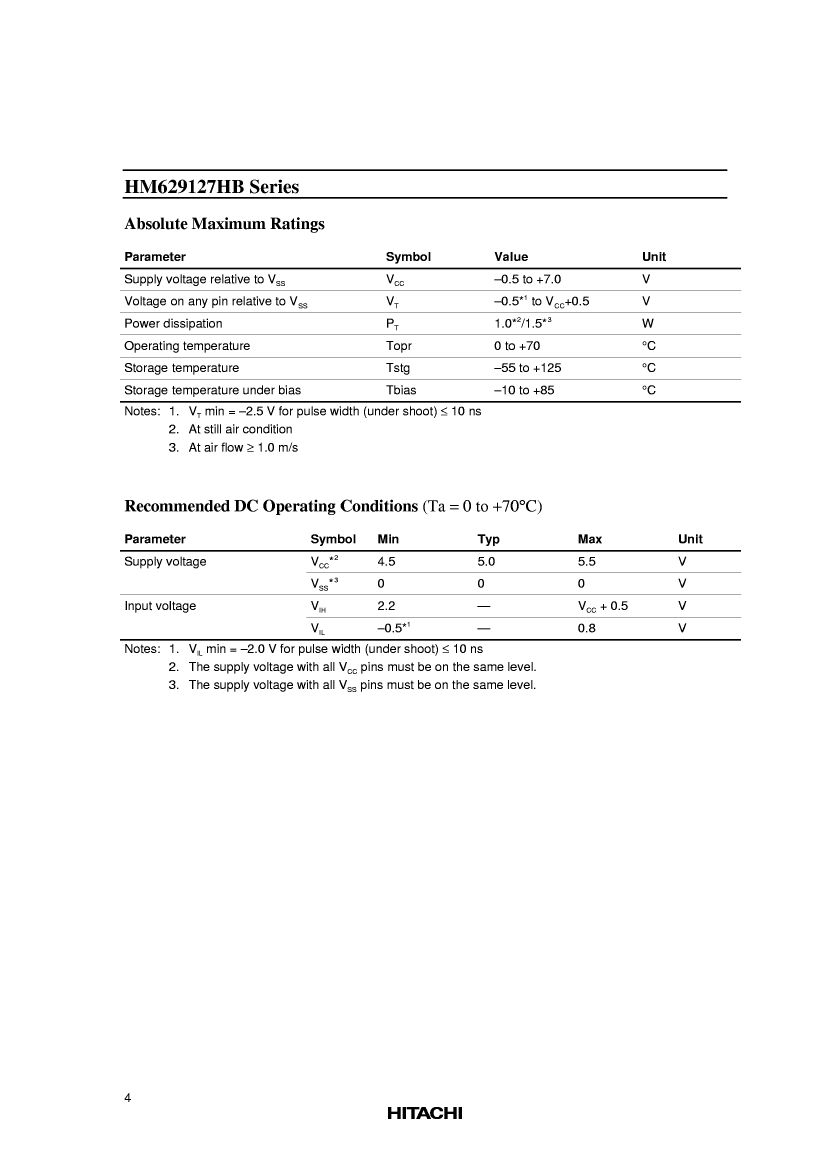

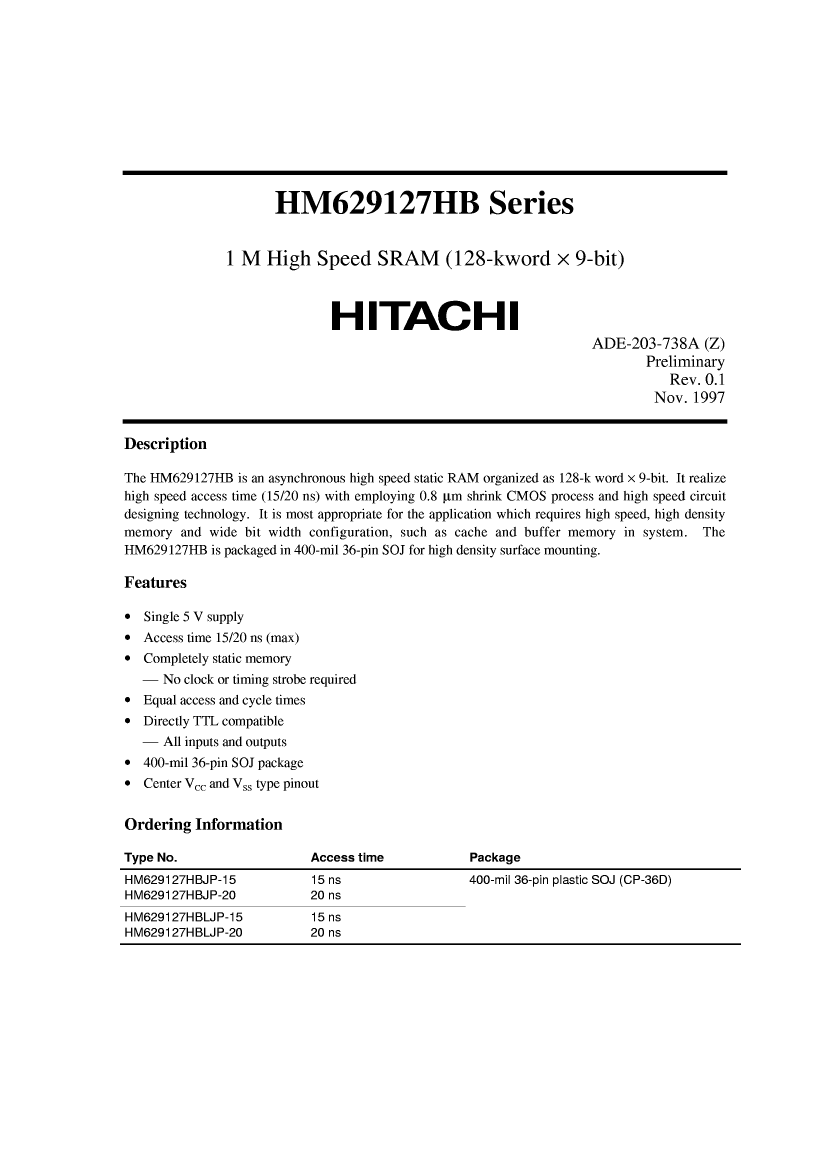

Preview

Download Datasheet

View All

HM629127HBJP-20 Related Products

	HM629127HBJP-20	HM629127HB-15	HM629127HBJP-15	HM629127HB	HM629127HB-20	HM629127HBLJP-15	HM629127HBLJP-20
Description	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)	1 M HIGH SPEED SRAM(128-KWORD X 9-BIT)
Maker	Hitachi （Renesas ）	-	Hitachi （Renesas ）	-	-	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOJ	-	SOJ	-	-	SOJ	SOJ
package instruction	SOJ, SOJ36,.44	-	SOJ, SOJ36,.44	-	-	SOJ, SOJ36,.44	SOJ, SOJ36,.44
Contacts	36	-	36	-	-	36	36
Reach Compliance Code	unknow	-	unknow	-	-	unknow	unknow
ECCN code	3A991.B.2.A	-	3A991.B.2.A	-	-	3A991.B.2.A	3A991.B.2.A
Maximum access time	20 ns	-	15 ns	-	-	15 ns	20 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS	-	TTL COMPATIBLE INPUTS/OUTPUTS	-	-	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON	-	COMMON	-	-	COMMON	COMMON
JESD-30 code	R-PDSO-J36	-	R-PDSO-J36	-	-	R-PDSO-J36	R-PDSO-J36
length	23.25 mm	-	23.25 mm	-	-	23.25 mm	23.25 mm
memory density	1179648 bi	-	1179648 bi	-	-	1179648 bi	1179648 bi
Memory IC Type	CACHE SRAM	-	CACHE SRAM	-	-	CACHE SRAM	CACHE SRAM
memory width	9	-	9	-	-	9	9
Number of functions	1	-	1	-	-	1	1
Number of terminals	36	-	36	-	-	36	36
word count	131072 words	-	131072 words	-	-	131072 words	131072 words
character code	128000	-	128000	-	-	128000	128000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	-	-	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	-	70 °C	-	-	70 °C	70 °C
organize	128KX9	-	128KX9	-	-	128KX9	128KX9
Output characteristics	3-STATE	-	3-STATE	-	-	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	-	SOJ	-	-	SOJ	SOJ
Encapsulate equivalent code	SOJ36,.44	-	SOJ36,.44	-	-	SOJ36,.44	SOJ36,.44
Package shape	RECTANGULAR	-	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	-	-	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	-	PARALLEL	-	-	PARALLEL	PARALLEL
power supply	5 V	-	5 V	-	-	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified
Maximum seat height	3.76 mm	-	3.76 mm	-	-	3.76 mm	3.76 mm
Maximum standby current	0.002 A	-	0.002 A	-	-	0.00008 A	0.00008 A
Minimum standby current	4.5 V	-	4.5 V	-	-	2 V	2 V
Maximum slew rate	0.15 mA	-	0.18 mA	-	-	0.18 mA	0.15 mA
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	-	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	-	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	-	-	5 V	5 V
surface mount	YES	-	YES	-	-	YES	YES
technology	CMOS	-	CMOS	-	-	CMOS	CMOS
Temperature level	COMMERCIAL	-	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	-	J BEND	-	-	J BEND	J BEND
Terminal pitch	1.27 mm	-	1.27 mm	-	-	1.27 mm	1.27 mm
Terminal location	DUAL	-	DUAL	-	-	DUAL	DUAL
width	10.16 mm	-	10.16 mm	-	-	10.16 mm	10.16 mm
