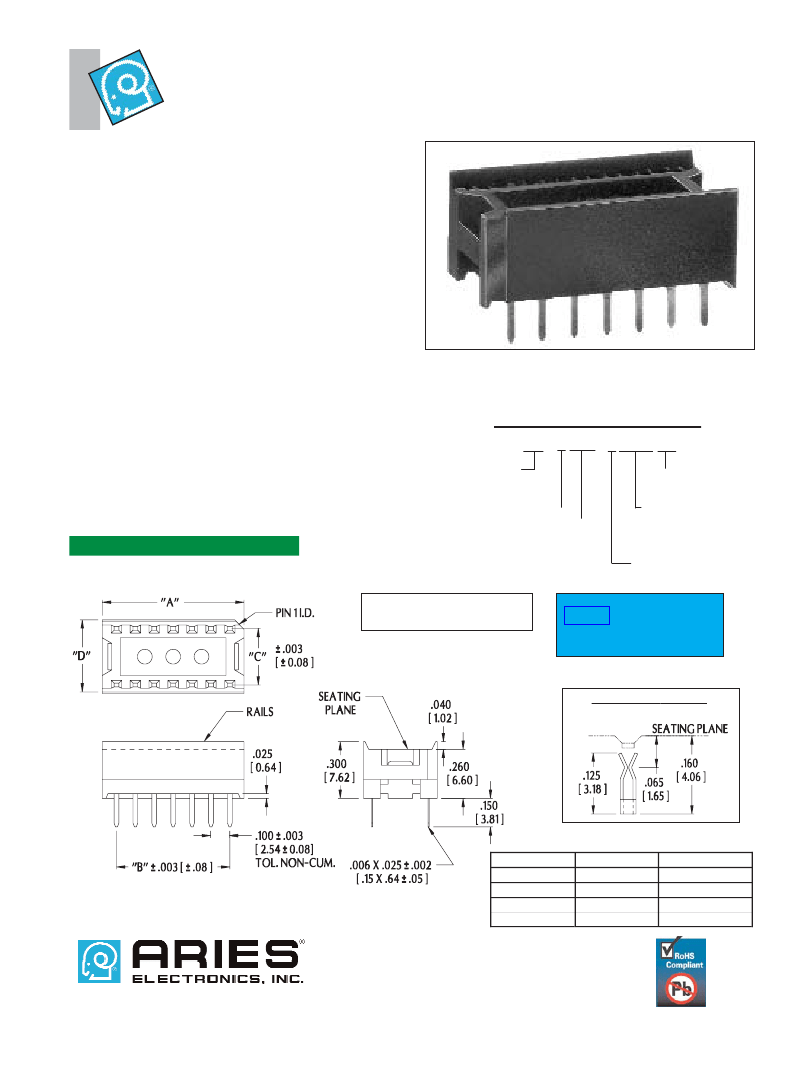

Series 511 Standard DIP Sockets with
Solder Tail Bifurcated Contacts
FEATURES:
• Standard DIP sockets are available with solder t ail or wire
wrap pins, all with bifurcated cont acts. Consult Data Sheet
No. 12005 for wire wrap pins.
• Aries offers these standard DIP sockets in more sizes than
any other manufacturer.
SPECIFICATIONS:
• Standard body material is black UL 94 V-0 Glass-filled 4/6
Nylon.
• Bifurcated contacts are Grade A spring-tempered Phosphor
Bronze per QQ-B-750.
• Pin plating is:
0
= 50-130μ” min Matte Tin per ASTM B545-97 over 50μ”
Nickel per SAE-AMS-QQ-N-290.
0TL
= 50-130μ” 90/10 Tin/Lead per MIL-T-10727 Type 1 over
50μ” Nickel per SAE-AMS-QQ-N-290.
1
= 10μ” min. Gold per MIL-G-45204 over 50
μ”
Nickel per
SAE-AMS-QQ-N-290.
• Contact current rating=1 Amp.
• Operating Temp. = -67°F to 221°F [-55°C to105°C] Tin
= -67°F to 257°F [-55°C 125°C] Gold
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Accepts flat leads up to .014 thk. x .020 wide
[.36 x .51], round leads up to .020 [.51] in diameter .
• Socket accepts lead lengths from seating plane from .075-
.160 [1.91-4.06].
Mounting Considerations:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05]. dia.
Note: Aries specializes in custom design and production. In addition to the stan-
dard products shown on this page, special materials, platings, sizes, and configu-
rations can be furnished, depending on quantities. Aries reserves the right to
change product specifications without notice.
ORDERING INFORMATION
X X - X 5 11 - 1 X X X X X
No. of pins
(see table)
Row-to-row spacing:
2: ”C”=.200 [5.08]
Series
3: “C”=.300 [7.62]
4: “C”=.400 [10.16]
6: “C”=.600 [15.24]
Optional suffix:
WR=Without rails
Plating:
0=Tin
1=Gold
0TL = Tin/Lead
Solder tail pin
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
Consult Data Sheet No.
12005 for standard DIP
sockets with wire wrap
bifurcated contacts.
CONTACT DETAIL
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Centers “C”
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Width “D”
.290 [7.36]
.390 [9.90]
.490 [12.45]
.690 [17.54]
Available Sizes
8, 10
8, 14-20
22
8-24, 28-40, 48
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
12004
REV. E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
