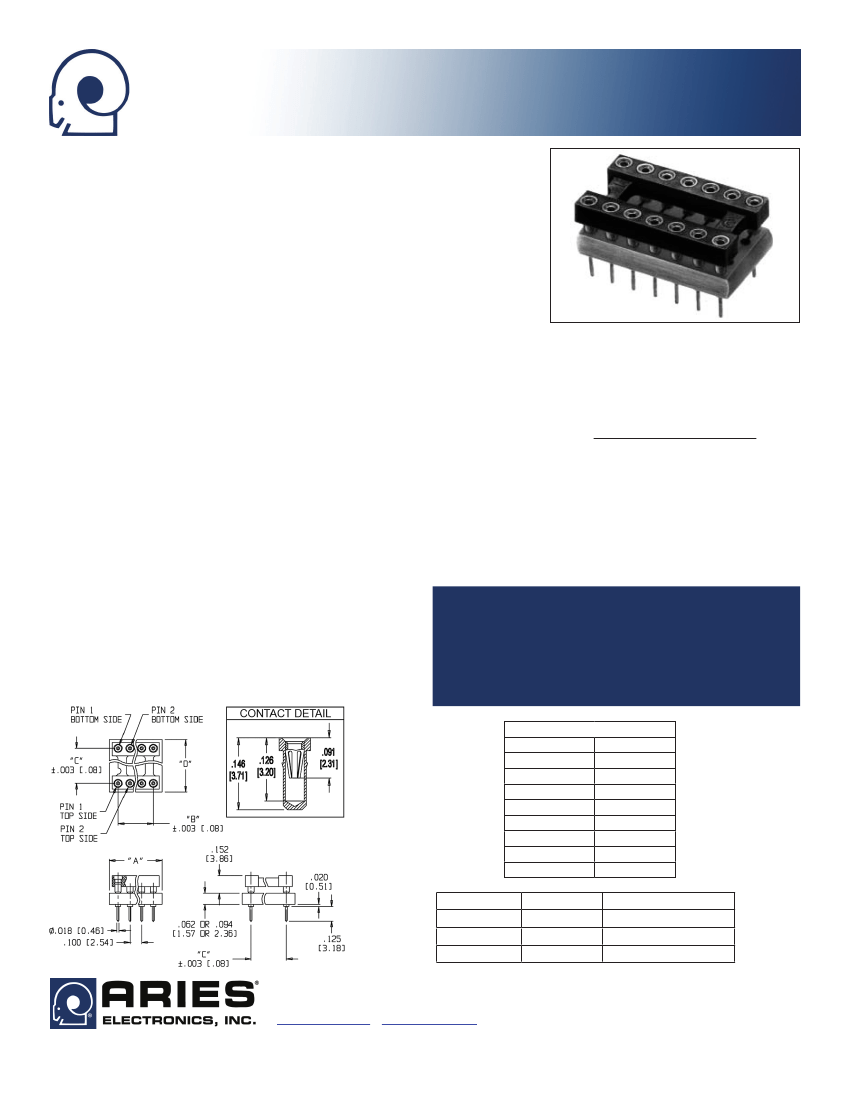

P/N 1109681-XXX
Mirror Image Collet Socket
FEATURES
• A cost-effective solution for design problems, this socket reroutes connections from
a row of female contacts on top, to the opposite row of male pins on bottom.
• IC can be replaced at the opposite side of a PCB.
GENERAL SPECIFICATIONS
• FEMALE SOCKET MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon 170°C
continuous use temp.
• PCB: FR-4, 0.062 [1.56] or 0.094 [2.39] thick
• MALE PIN: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
• MALE PIN PLATING: 200µ [5.08µ] Sn/Pb 93/7 per ASTM B579-73 over 100µ
[2.54µ] Ni per SAE-AMS-QQ-N-290
CUSTOMIZATION:
In addition to the standard products shown
• FEMALE PIN BODY: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
on this page, Aries specializes in custom design and production.
• FEMALE PIN BODY PLATING: 10µ [0.254µ] Au per MIL-G-45204 over 100µ
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
[2.54µ] Ni per SAEAMS-QQ-N-290
right to change product general specifications without notice.
• 4-FINGER COLLET CONTACT: BeCu per UNS C17200, ASTM B194-08
• CONTACT PLATING: 10µ [0.254µ] Au per MIL-G-45204 over 50µ [1.27µ] Ni per
SAE-AMS-QQ-N-290
ORDERING INFORMATION
• CONTACT CURRENT RATING: 3 amps
Consult Factory – Aries will assign a
• OPERATING TEMPERATURE: 221°F [105°C]
special P/N
• INSERTION FORCE: 180g/pin
• WITHDRAWAL FORCE: 90g/pin
• NORMAL FORCE: 140g/pin; based on a 0.018 [0.46] dia. test lead
• SOCKET ACCEPTS: leads 0.015-0.025 [0.38-0.64] in dia., 0.100-0.125 [2.54-3.18] long
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
ORDER REQUIREMENT: 100-PIECE MINIMUM
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Wire List Example – 8 Pins
Top Side
Bottom Side
1
8
2
7
3
6
4
5
5
4
6
3
7
2
8
1
Centers “C”
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
Dim. “D”
0.450 [11.43]
0.550 [13.97]
0.750 [19.05]
Available Sizes
8, 14, 16, 18, 20, 24, 28
20, 22, 24
24, 28, 32, 40, 48
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18008
Rev. AA
