44472-1255 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 44472-1255

44472-1255: DescriptionHeaders & Wire Housings VERT MINIFIT HCS 12P dual row; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

44472-1255 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	44472-1255	-	-	View	Buy Now

44472-1255 Overview

Headers & Wire Housings VERT MINIFIT HCS 12P dual row

44472-1255 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Headers & Wire Housings VERT MINIFIT HCS 12P dual row
Other features	MINI-FIT HCS
subject depth	0.5 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VDC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	12 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.14 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	3.1136 N

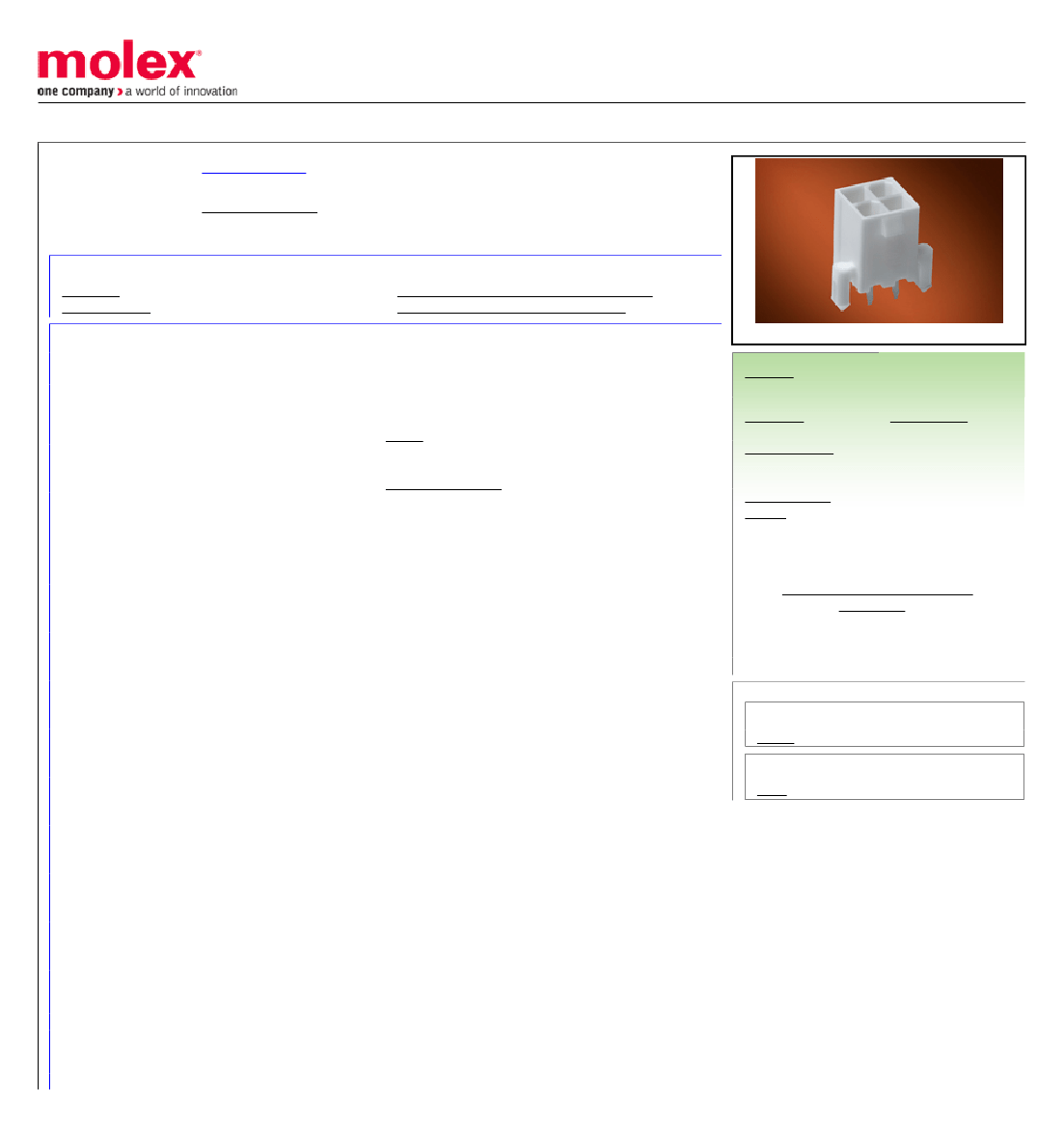

Preview

Download Datasheet

View All

This document was generated on 06/26/2015

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0444721255

Active

Mini-Fit® Plus HCS

Mini-Fit® HCS Header, 4.20mm Pitch, Dual Row, Vertical, without Snap-in Plastic Peg

PCB Lock, 12 Circuits, PA Polyamide Nylon 6/6 94V-0, without Drain Holes

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Product Specification PS-44476-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

44472

Power, Wire-to-Board

Square Pin|Solder Type

Mini-Fit® Plus HCS

Mini-Fit® HCS

800754913348

Natural (White)

94V-0

High Performance Alloy (HPA)

Tin

Nylon

3.425/g

Vertical

Yes

None

1.80mm

Tray

4.20mm

2.540µm

Yes

Partial

-40°C to +105°C

Through Hole

11.0A

600V

005

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Contains SVHC(2014

December 17): No

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

Search Parts in this Series

44472 Series

Mates With

5557 Dual Row
