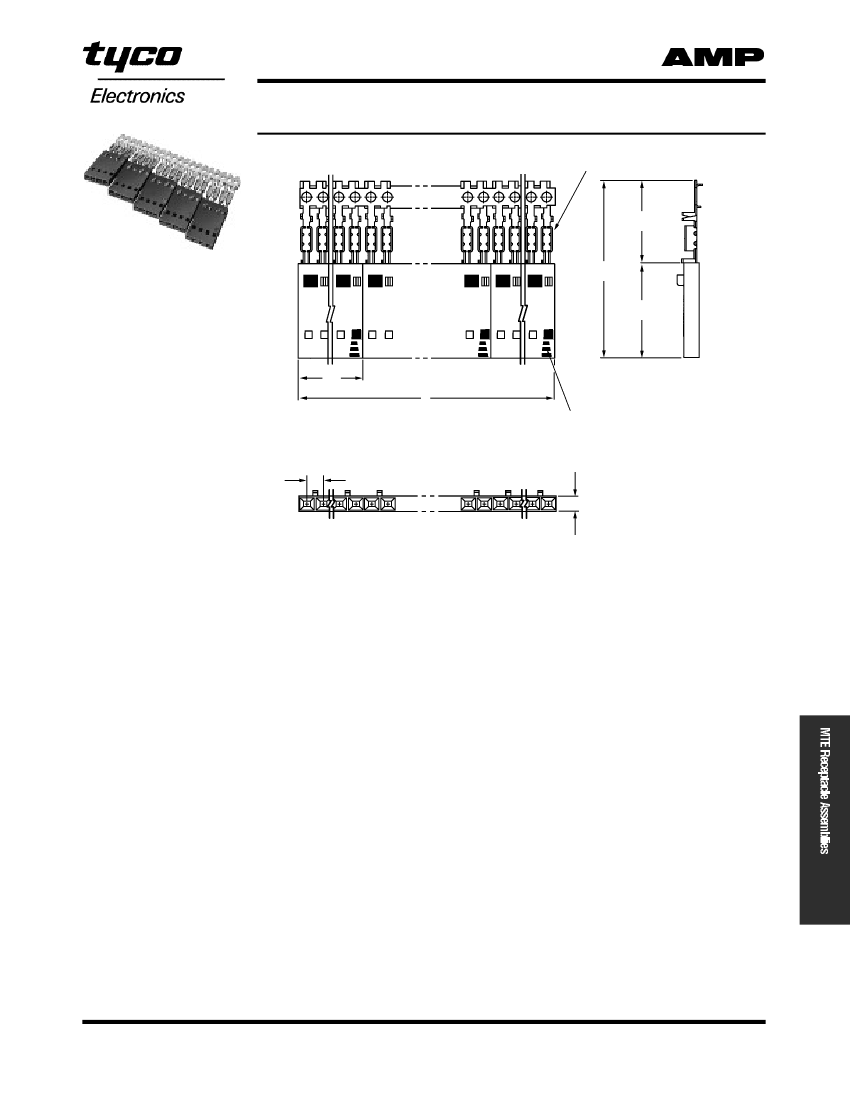

AMPMODU Interconnection System
MTE Receptacle Assemblies—Guide Ribs,
Single-Row, .100 [2.54] Centerline
Receptacle Contacts
(See Note 1)
.520
[13.21]
Preassembled housings in strip
form are available in positions
2 thru 12. For ease of handling,
positions 2 thru 5 are recommended
when using the Tyco Electronics
Manual Pistol Grip Tool.
1.120
[28.45]
.600
[15.24]
Material and Finish:
Housing—Black
thermoplastic,
94V-0 rated
Contacts—Phosphor
Bronze,
plated as follows:
Plating A—Duplex
plated .000030
[0.00076] gold on contact area, .000050
[0.00127] min. tin-lead in crimp area,
with entire contact underplated .000050
[0.00127] nickel
Plating B—Duplex
plated .000015
[0.00038] gold on contact area, .000050
[0.00127] min. tin-lead in crimp area,
with entire contact underplated .000050
[0.00127] nickel
Plating C—.000100
[0.00254] bright
tin-lead over .000050 [0.00127] nickel
on entire contact
Note:
Insulation displacement contacts
accept an insulation diameter of .030 [0.76]
min. to .054 [1.37] max. with an
insulation wall thickness of .015 [0.38]
max. Mating post length for preloaded
housings is .200 [5.08] min., .250 [6.35]
max.
B
Typ.
A
Position No. 1 Indicator
(Farside)
.100
[2.54] Typ
.098
[2.49]
Related Product Data:
Coupling Shrouds used with:
Single-Row—page
257
Double-Row—page
258
Mateable AMPMODU Products (with
Receptacle Assemblies Installed
in Single-Row Coupling Shrouds):
Pin Assemblies (Polarized/
Latching)—pages
253, 254
Pin Assemblies with Guide Ribs
(installed in Panel Mount Pin
Shroud)—pages
255, 256, 259
Headers (Polarized/Latching)—
pages 261-270
Mateable AMPMODU Products (with
Receptacle Assemblies Installed
in Double-Row Coupling Shrouds):
Headers, Shrouded, Double-Row
(.318 [8.08] mating post length,
.150 [3.81] end dimension)—p
ages
135-138, 141, 142, 144, 145, 146,
148-150, 166
Interchangeable Crimp Contacts—
(Short Point)—page 272
Application Tooling—pages
291, 292
Performance Specifications—page
242
Technical Documents
(pages
295, 296):
Product Specification
108-25034
Application Specification
114-25026
5
249
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
AMPMODU Interconnection System
MTE Receptacle Assemblies—Strip Form with Guide Ribs,
Single-Row, .100 [2.54] Centerline
(Continued)
No. of
Pos.
2
3
4
5
6
7
8
9
10
11
12
Dimensions
A
2.000
[50.80]
2.400
[60.96]
1.990
[50.55]
1.990
[50.55]
2.390
[60.71]
1.400
[35.56]
1.600
[40.64]
1.800
[45.72]
2.000
[50.80]
2.200
[55.88]
2.400
[60.96]
Housing
Quantities
Per Strip
B
Segment
.198
[5.03]
10
.298
[7.57]
8
.398
[10.11]
5
.498
[12.65]
4
.598
[15.19]
4
.698
[17.73]
2
.798
[20.27]
2
.898
[22.81]
2
.998
[23.35]
2
1.098
[27.89]
2
1.198
[30.43]
2
Strip Form Receptacle Assembly
30-26 AWG [0.05-0.15mm
2]
Wire
Plating A
Plating B
Plating C
103973-1
103973-2
103973-3
103973-4
103973-5
103973-6
103973-7
103973-8
103973-9
1-103973-0
1-103973-1
103972-1
103972-2
103972-3
103972-4
103972-5
103972-6
103972-7
103972-8
103972-9
1-103972-0
1-103972-1
103971-1
103971-2
103971-3
103971-4
103971-5
103971-6
103971-7
103971-8
103971-9
1-103971-0
1-103971-1
Strip Form Receptacle Assembly
26-22 AWG [0.12-0.3mm
2]
Wire
Plating A
Plating B
Plating C
103970-1
103970-2
103970-3
103970-4
103970-5
103970-6
103970-7
103970-8
103970-9
1-103970-0
1-103970-1
103969-1
103969-2
103969-3
103969-4
103969-5
103969-6
103969-7
103969-8
103969-9
1-103969-0
1-103969-1
103968-1
103968-2
103968-3
103968-4
103968-5
103968-6
103968-7
103968-8
103968-9
1-103968-0
1-103968-1
Unloaded
Housings
103648-1
103648-2
103648-3
103648-4
103648-5
103648-6
103648-7
103648-8
103648-9
1-103648-0
1-103648-1
MTE Receptacle Assemblies—Individual Form with Guide Ribs,
Single-Row, .100 [2.54] Centerline
No. of
Pos.
13
14
15
16
17
18
19
20
21
22
23
24
25
Dimensions
B
1.298
[32.96]
1.398
[35.51]
1.498
[38.05]
1.598
[40.59]
1.698
[43.13]
1.798
[45.67]
1.898
[48.20]
1.998
[50.75]
2.098
[53.29]
2.198
[55.83]
2.298
[58.37]
2.398
[60.91]
2.498
[63.45]
Individual Receptacle Assembly
30-26 AWG [0.05-0.15mm
2
] Wire
Plating A
1-103901-2
1-103901-3
1-103901-4
1-103901-5
1-103901-6
1-103901-7
1-103901-8
1-103901-9
2-103901-0
2-103901-1
2-103901-2
2-103901-3
2-103901-4
Plating B
1-103649-2
1-103649-3
1-103649-4
1-103649-5
1-103649-6
1-103649-7
1-103649-8
1-103649-9
2-103649-0
2-103649-1
2-103649-2
2-103649-3
2-103649-4
Plating C
1-103650-2
1-103650-3
1-103650-4
1-103650-5
1-103650-6
1-103650-7
1-103650-8
1-103650-9
2-103650-0
2-103650-1
2-103650-2
2-103650-3
2-103650-4
Individual Receptacle Assembly
26-22 AWG [0.12-0.3mm
2
] Wire
Plating A
1-103900-2
1-103900-3
1-103900-4
1-103900-5
1-103900-6
1-103900-7
1-103900-8
1-103900-9
2-103900-0
2-103900-1
2-103900-2
2-103900-3
2-103900-4
Plating B
1-103651-2
1-103651-3
1-103651-4
1-103651-5
1-103651-6
1-103651-7
1-103651-8
1-103651-9
2-103651-0
2-103651-1
2-103651-2
2-103651-3
2-103651-4
Plating C
1-103652-2
1-103652-3
1-103652-4
1-103652-5
1-103652-6
1-103652-7
1-103652-8
1-103652-9
2-103652-0
2-103652-1
2-103652-2
2-103652-3
2-103652-4
Unloaded
Housings
1-103648-2
1-103648-3
1-103648-4
1-103648-5
1-103648-6
1-103648-7
1-103648-8
1-103648-9
2-103648-0
2-103648-1
2-103648-2
2-103648-3
2-103648-4
Notes:
1. Receptacle assemblies are furnished with strip contacts partially inserted into housing—contacts latched into “preload” windows. Contacts are fully
inserted into housings automatically when terminated with AMP application machines, or manually when terminated with AMP pistol grip hand tool.
2. Use
Extraction/Lance Reset Tool No. 843477-1
to remove receptacle contacts.
3. Keying plugs are available, see page 272.
5
250
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
