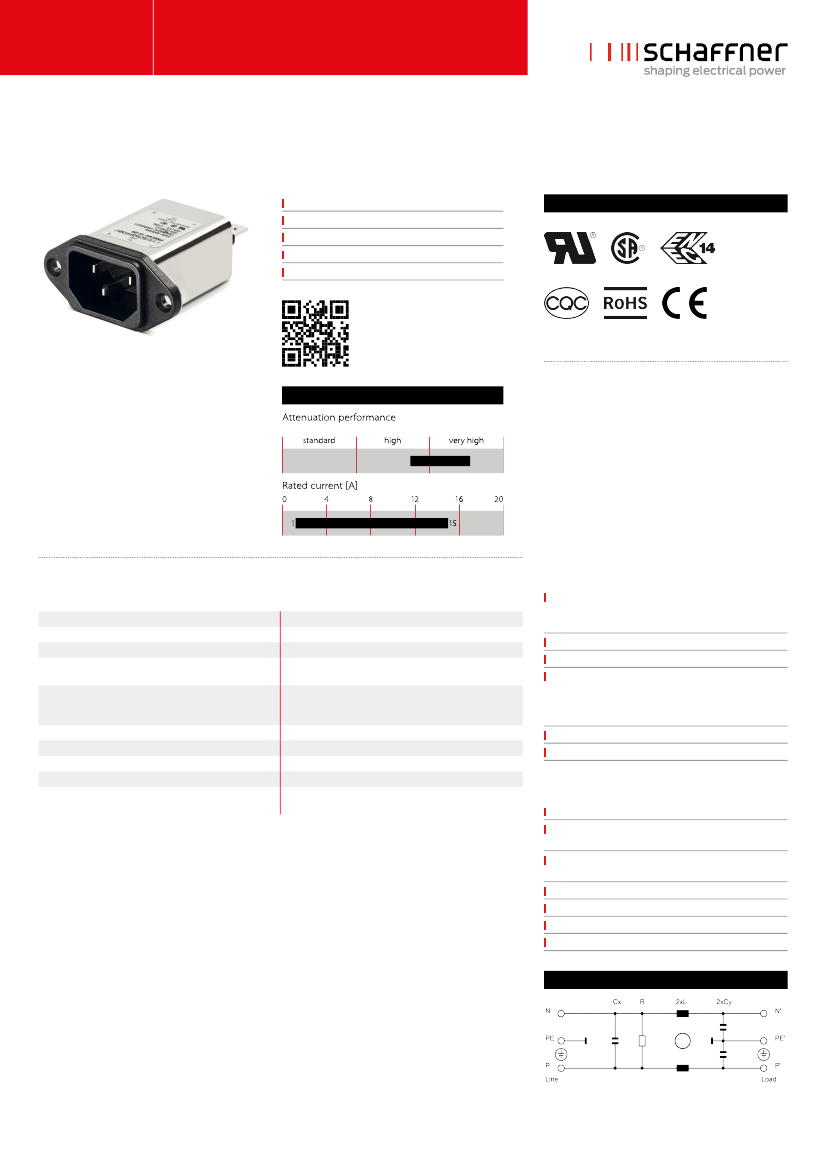

The FN 9244 IEC inlet filter combines an IEC inlet and
mains filter with superior filter attenuation in a small
form factor. Choosing the FN 9244 product line
brings you the rapid availability of a standard filter
associated with the necessary safety acceptances.
Standard IEC connector filters are a practical solution
helping you to pass EMI system approval in a short
time. A wide selection on amperage ratings, output
connections, mounting possibilities and filters for
medical applications are designed to offer you the
desired solution.
Technical specifications
Maximum continuous operating voltage
Operating frequency
Rated currents
Approvals by rated current
High potential test voltage
250 VAC, 50/60 Hz
DC to 400 Hz
1 to 15 A @ 50°C max.
1 to 10 A (ENEC, CQC)
1 to 15 A (UL, CSA)
P –> PE 2000 VAC for 2 sec (standard types)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1000 VAC for 2 sec
IP 40 according to IEC 60529
-25°C to +85°C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
UL 94 V-2 or better
≤8 A: 2,035,000 hours
≤15 A: 1,035,000 hours
Features and benefits
Exceptional conducted attenuation performance,
based on chokes with high saturation resistance
and excellent thermal behavior
Rear/front or snap-in mounting
Standard or wide mounting flange
Optional medical versions (B type) comply with the
requirements of IEC/EN 60601-1 for creepage and
clearance, leakage current and high potential
testing
Optional earth line choke see FN 9244 E data sheet
Custom-specific versions are available on request
Protection category
Temperature range (operation and storage)
Design corresponding to
Flammability corresponding to
MTBF @ 40°C/230 V (Mil-HB-217F)
Typical applications
Portable electrical and electronic equipment
Small to medium-sized machines and household
equipment
Single-phase power supplies, switch-mode power
supplies
Test and measurement equipment
Medical devices (MDD)
In-vitro diagnostic medical devices (IVDD)
Rack mounting equipment

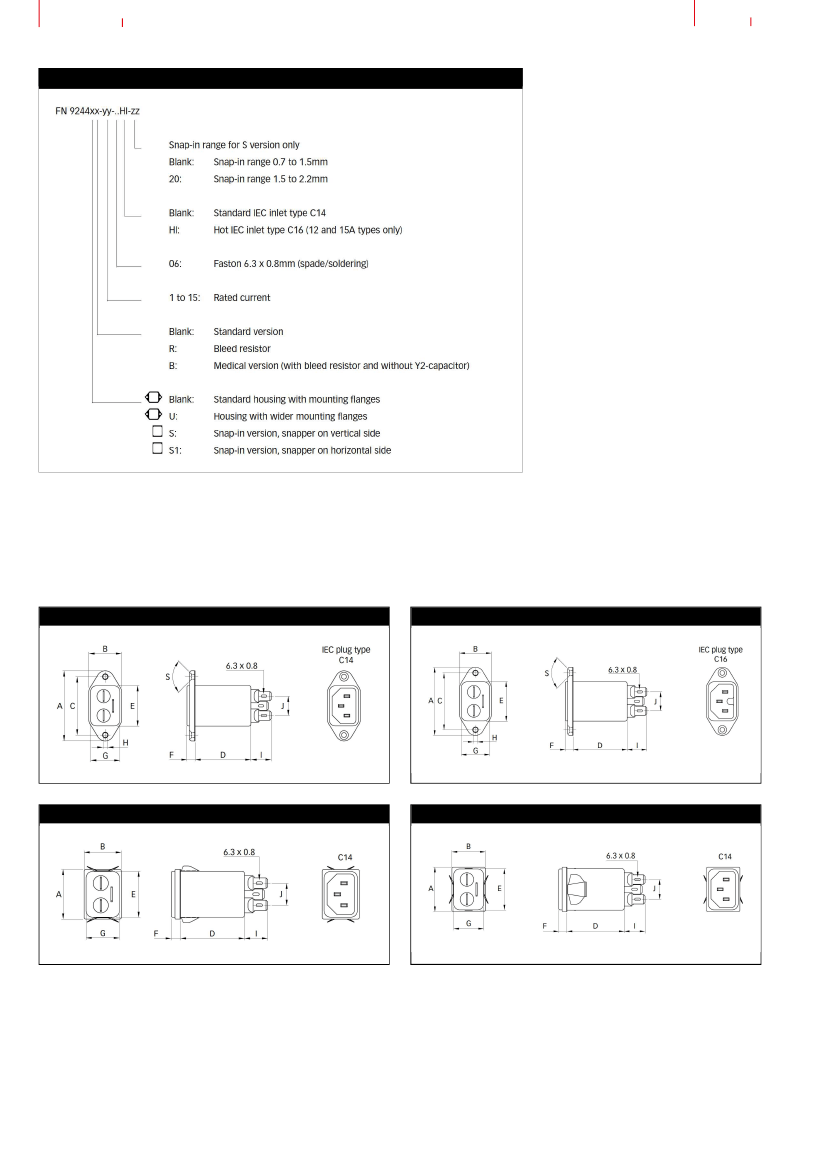

Typical electrical schematic
2
EMC/EMI Products
Schaffner Group
Datasheets
2017
Filter selection table
Filter
Rated current
@ 50°C (25°C)
Leakage current*
@ 250 VAC/50 Hz
(@ 120 VAC/60 Hz)
[A]
FN 9244 x-1-06
FN 9244 x-3-06
FN 9244 x-6-06
FN 9244 x-8-06
FN 9244 x-10-06
FN 9244 x-12-06
FN 9244 x-15-06
FN 9244 x-12-06HI
FN 9244 x-15-06HI
FN 9244 xR-1-06
FN 9244 xR-3-06
FN 9244 xR-6-06
FN 9244 xR-8-06
FN 9244 xR-10-06
FN 9244 xR-12-06
FN 9244 xR-15-06
FN 9244 xR-12-06HI
FN 9244 xR-15-06HI
FN 9244 xB-1-06
FN 9244 xB-3-06
FN 9244 xB-6-06
FN 9244 xB-8-06
FN 9244 xB-10-06
FN 9244 xB-12-06
FN 9244 xB-15-06
FN 9244 xB-12-06HI
FN 9244 xB-15-06HI
1 (1.2)
3 (3.5)
6 (7.2)
8 (10.6)
10 (11.6)
12 (12)
15 (15)
12 (12)
15 (15)
1 (1.2)
3 (3.5)
6 (7.2)
8 (10.6)
10 (11.6)
12 (12)
15 (15)
12 (12)
15 (15)
1 (1.2)
3 (3.5)
6 (7.2)
8 (10.6)
10 (11.6)
12 (12)
15 (15)
12 (12)
15 (15)
[mA]
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.31 (0.18)
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
[mH]
59.53
13.45
4.1
2.3
1.02
0.58
0.4
0.58
0.4
59.53
13.45
4.1
2.3
1.02
0.58
0.4
0.58
0.4
59.53
13.45
4.1
2.3
1.02
0.58
0.4
0.58
0.4
[μF]
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
[nF]
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
[kΩ]
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
-06
[g]
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38

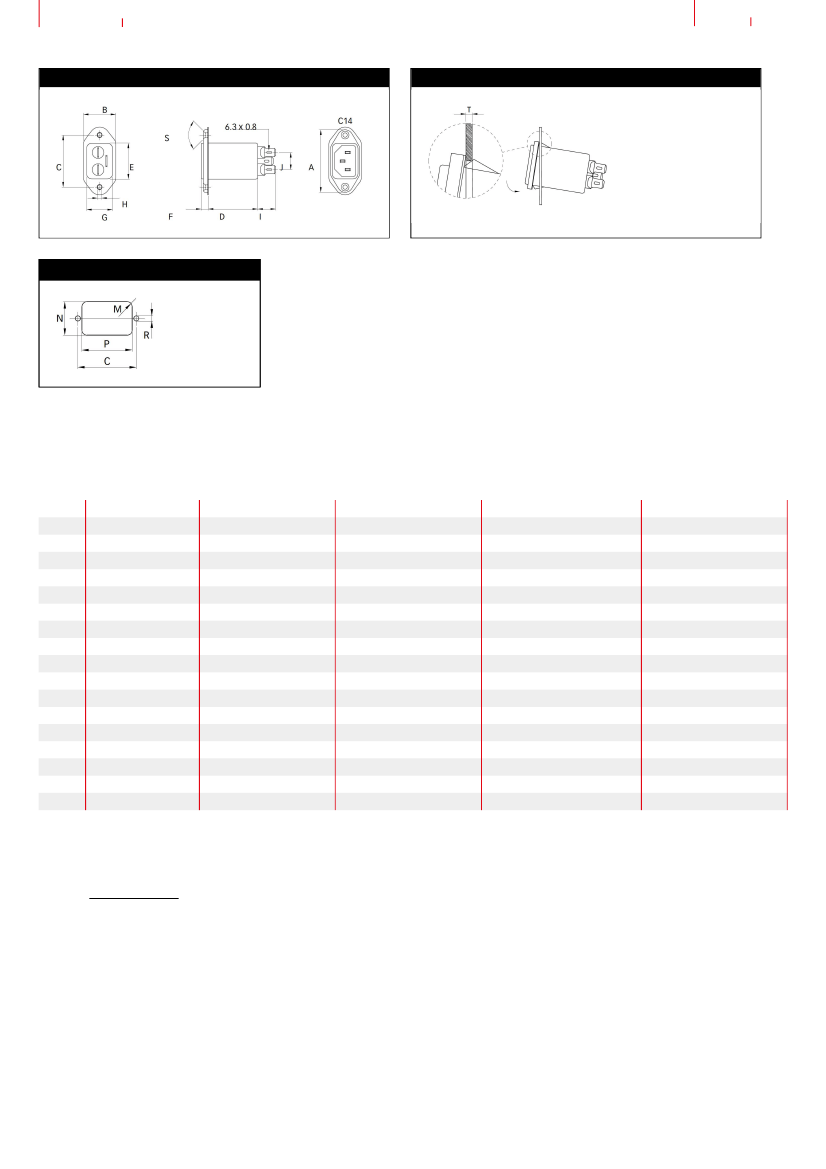

Inductance
L
Capacitance
Cx
Cy
Resistance
R
Output
connections
Weight
* Maximum leakage under normal operating conditions (acc. to IEC60939-3). Note: if the neutral line is interrupted, worst case leakage could reach twice this level.
