20021612-00010T4LF datasheet, PDF

Datasheet> All Categories > The connector> 20021612-00010T4LF

20021612-00010T4LF: DescriptionHeaders & Wire Housings 1.27mm, CTB, Eject Hdr, R/A, T/H, 10Pos; CategoryThe connector; File Size63KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric View All

20021612-00010T4LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20021612-00010T4LF	-	-	View	Buy Now

20021612-00010T4LF Overview

Headers & Wire Housings 1.27mm, CTB, Eject Hdr, R/A, T/H, 10Pos

20021612-00010T4LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	Headers & Wire Housings
RoHS	Details
Product	Headers
Type	Shrouded
Number of Positions	10 Position
Pitch	1.27 mm
Number of Rows	2 Row
Mounting Style	-
Termination Style	Through Hole
Mounting Angle	Right Angle
Contact Gender	Pin (Male)
Contact Plating	Gold
Termination Post Length	2.3 mm
Packaging	Tube
Current Rating	1 A
Housing Material	Thermoplastic
Voltage Rating	125 V
Contact Material	Copper Alloy
Flammability Rating	UL 94 V-0
Row Spacing	1.27 mm
Insulation Resistance	1000 MOhms
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	13

Preview

Download Datasheet

View All

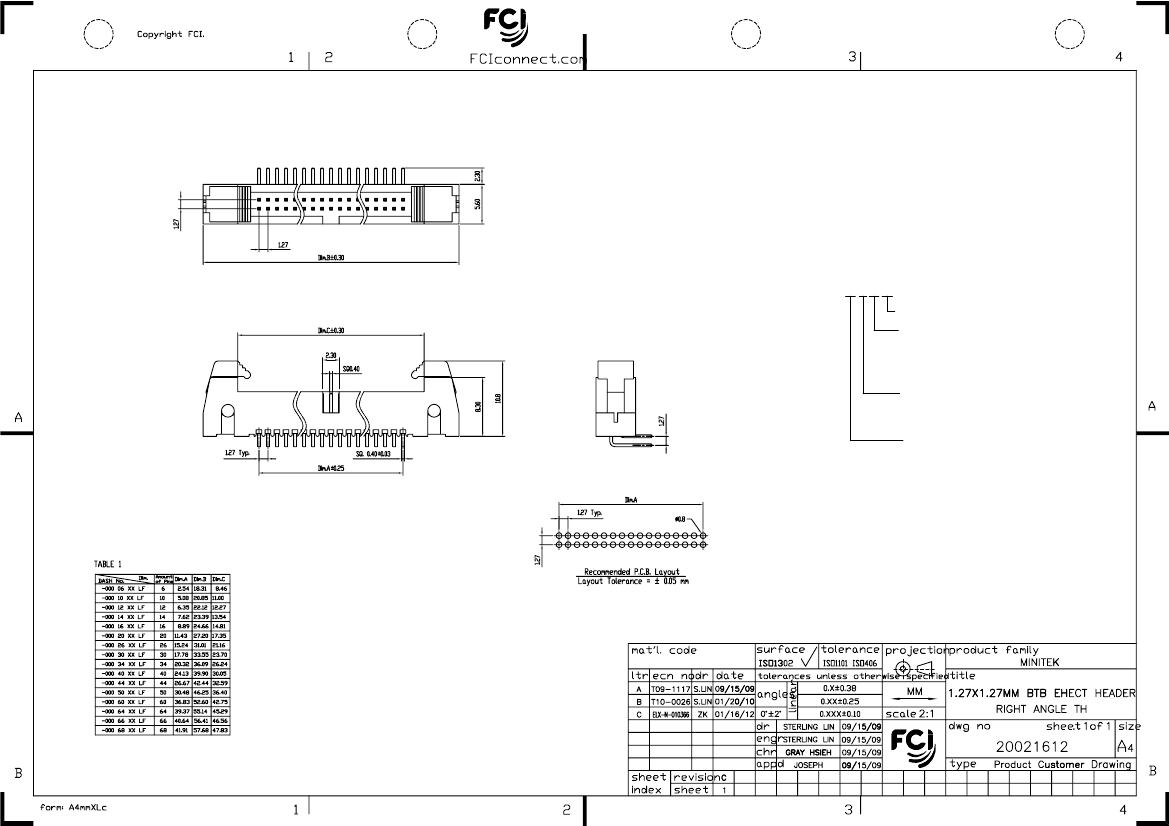

NOTE:

1. MATERIAL,

HOUSING: HIGH TEMP PLASTIC, UL94-V0,BLACK

TERMINAL: COPPER ALLOY , SQ=0.40±0.03MM

2. FINISH:

TERMINAL: GOLD AT CONTACT,

G/F OVER 1um(40u")MIN Ni OVER ALL

3. SPEC.:

PRODUCT SPEC: GS-12-629

PACKING SPEC: GS-14-1420

4. THE HSG. WILL WITHSTAND EXPOSURE TO 260C

PEAK TEMP. FOR 5 SEC. IN A WAVE SOLDER APPLICATION

WITH A PCB.

5. PRODUCT NUMBERING:

20021612 - 0 0 0 XX X X LF

LEAD FREE

PLATING:

1:GOLD FLASH ALL OVER

4:0.25um(10U")GOLD AT CONTACT

8:0.76um(30U")GOLD AT CONTACT

9:1u" GOLD OVER 30u" PdNi AT CONTACT

PACKING

T: TUBE

PIN COUNT

SEE TABLE 1

PDS: Rev :C

STATUS:Released

Printed: Mar 02, 2012
