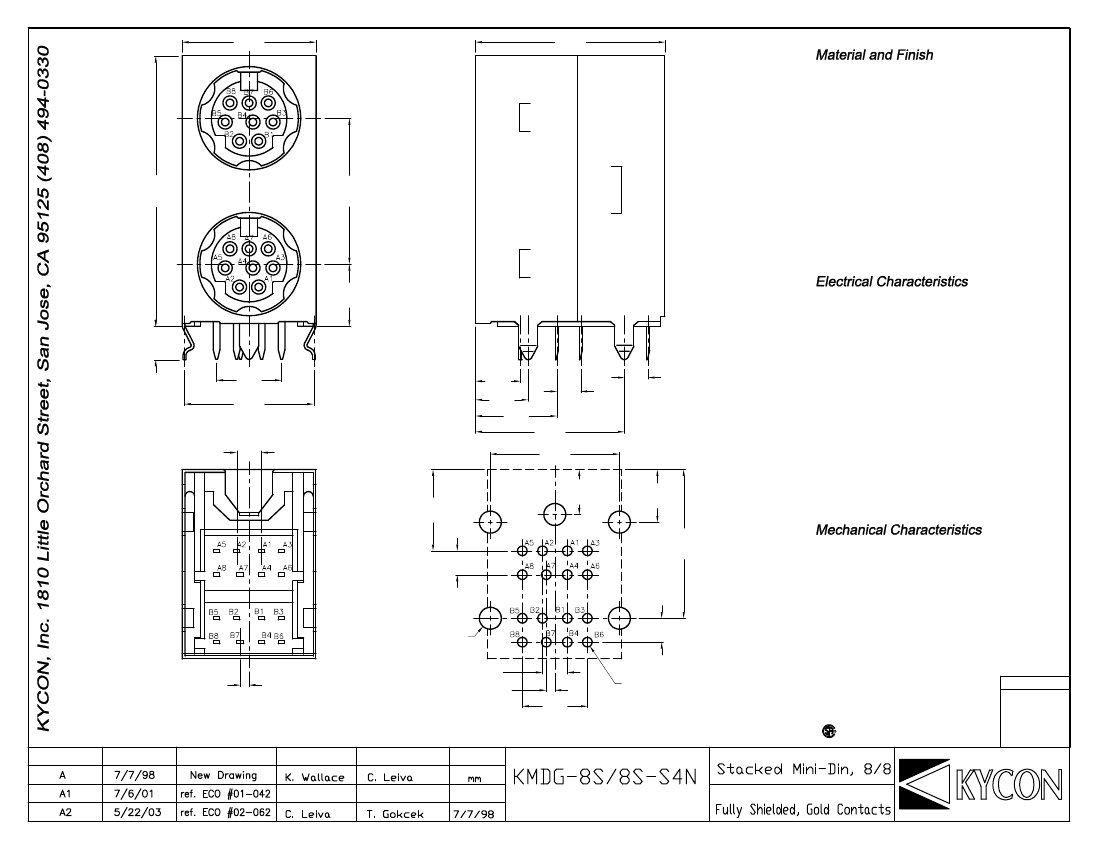

Body: PBT Thermoplastic,
UL94V-0 Rated, Black
Contacts: Phosphor Bronze
Contact Plating: Gold Flash
on Contacts, 120u" Tin/Lead
on Termination, all over
50u" min. Nickel
Shield: Brass,
120u" Tin/Lead Plated over
50u" min. Copper
28.25
6.50
15.25
Contact Resistance:
Before Test:
Plug to Terminals: 30 Milliohms Max.
After Test:
Plug to Terminals: 60 Milliohms Max.
3.50
6.80
13.50
4.70
5.50
8.50
15.55
2.60
13.50
4.70
2.50
2.50
Insulation Resistance:
500 Megohms Min.
Dielectric Withstanding Voltage:
500V AC RMS For 1 Minute
Current Rating:
1 Amp at 12V DC
8.50
2.50
5.50
15.55
Durability Test: 500 Cycles Min.
Insertion Force: 4.5kg max.
Extraction Force: 0.4kg - 3.5kg
Operating Temperature: -25°C to +85°C
5-Ø2.30
2.60
0.90
6.80
2.50
0.90
16-Ø1.00
Tolerances
X.X ± 0.25
X.XX ± 0.15
Unless Stated
Otherwise
Recommended PCB Layout
(Bottom View)
REVISION
DATE
DESCRIPTION
DRAWN BY
CHECKED BY
UNITS
CSA NRTL/C Certified File No. LR78160
REVISED BY
REV CHECK BY
DATE
