34840-4020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 34840-4020

34840-4020: DescriptionAutomotive Connectors MX150 BULKHD TWISTLK ASSY 8CKT KEY B; CategoryThe connector; File Size30KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

34840-4020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34840-4020	-	-	View	Buy Now

34840-4020 Overview

Automotive Connectors MX150 BULKHD TWISTLK ASSY 8CKT KEY B

34840-4020 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Automotive Connectors
RoHS	Details
Product	Connectors
Number of Positions	8 Position
Gender	Male
Packaging	Bulk
Color	Light Gray
Current Rating	22 A
Housing Material	Polystyrene (PS)
Number of Rows	2 Row
Type	Plug
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	300
Unit Weight	0.640928 oz

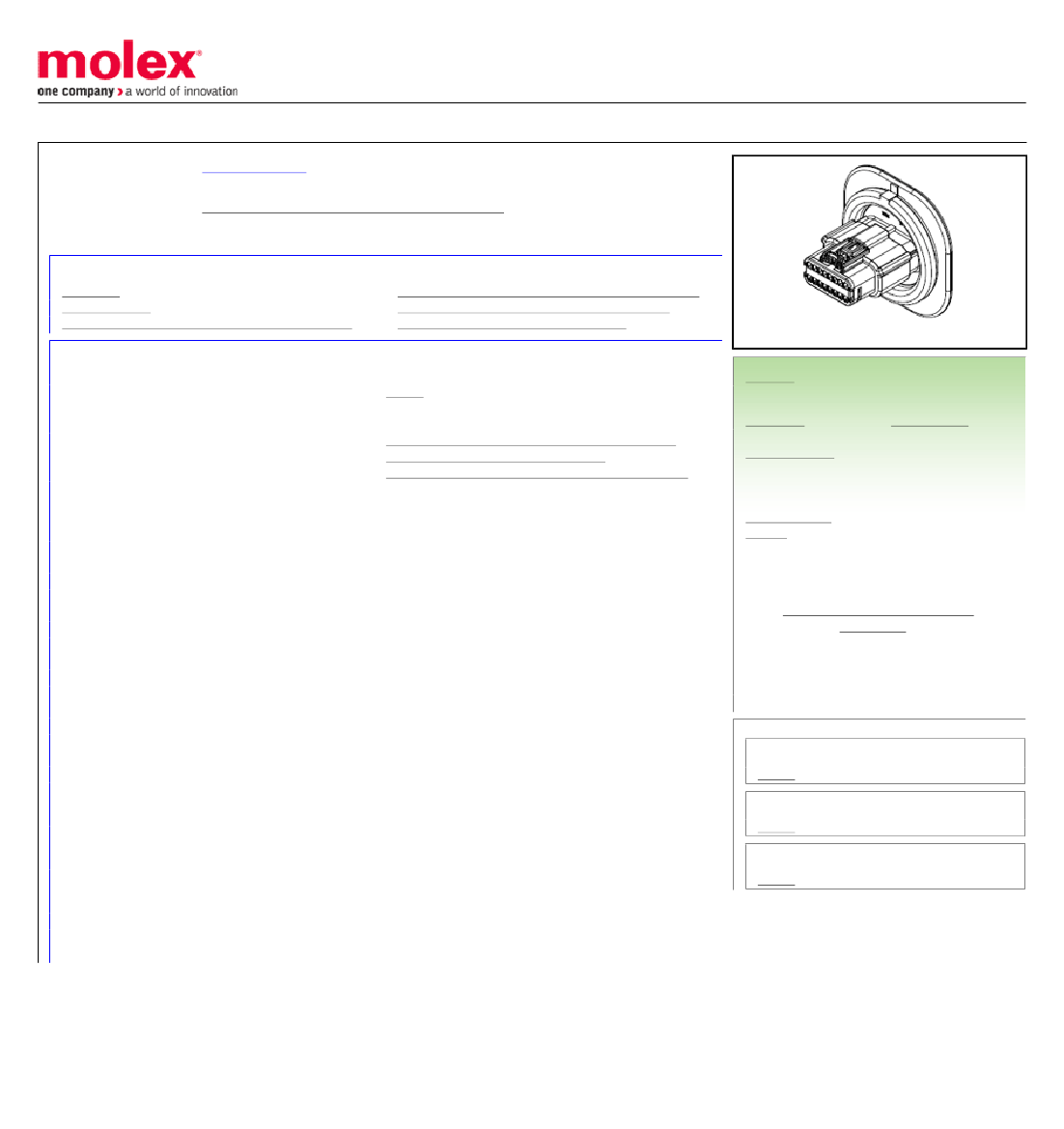

Preview

Download Datasheet

View All

This document was generated on 08/02/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0348404020

Active

MX150™ Sealed and Unsealed Connector System

MX150™ Sealed Male Connector, Bulkhead Twist-Lock, Dual Rows, 8 Circuits,

Polarization B, Light Gray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34840-0001-001 (PDF)

General

Product Family

Series

Application

Comments

More Detailed Tech Information

Overview

Product Name

UPC

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-34840-001-001 (PDF)

Packaging Specification PK-31301-615 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

Crimp Housings

34840

Power, Wire-to-Wire

No Connector Position Assurance (CPA)

http://uscar.org/guest/teams/10/Electrical-Wiring-

Component-Applications-Partnership

MX150™ Sealed and Unsealed Connector System

MX150™

887191166711

Gray (Light), Natural

Plug

Yes

Modified Polystyrene Alloy

18.170/g

Bag

Yes

3.50mm

Yes

-40°C to +125°C

N/A

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Search Parts in this Series

34840 Series

Mates With

33472 MX150™ Sealed Connector

Use With

33000 MX150™ Male Terminal

AS-34840-001-001

PK-31301-615

PS-34840-0001-001

SD-34840-001

This document was generated on 08/02/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
