ROHS COMPLIANT

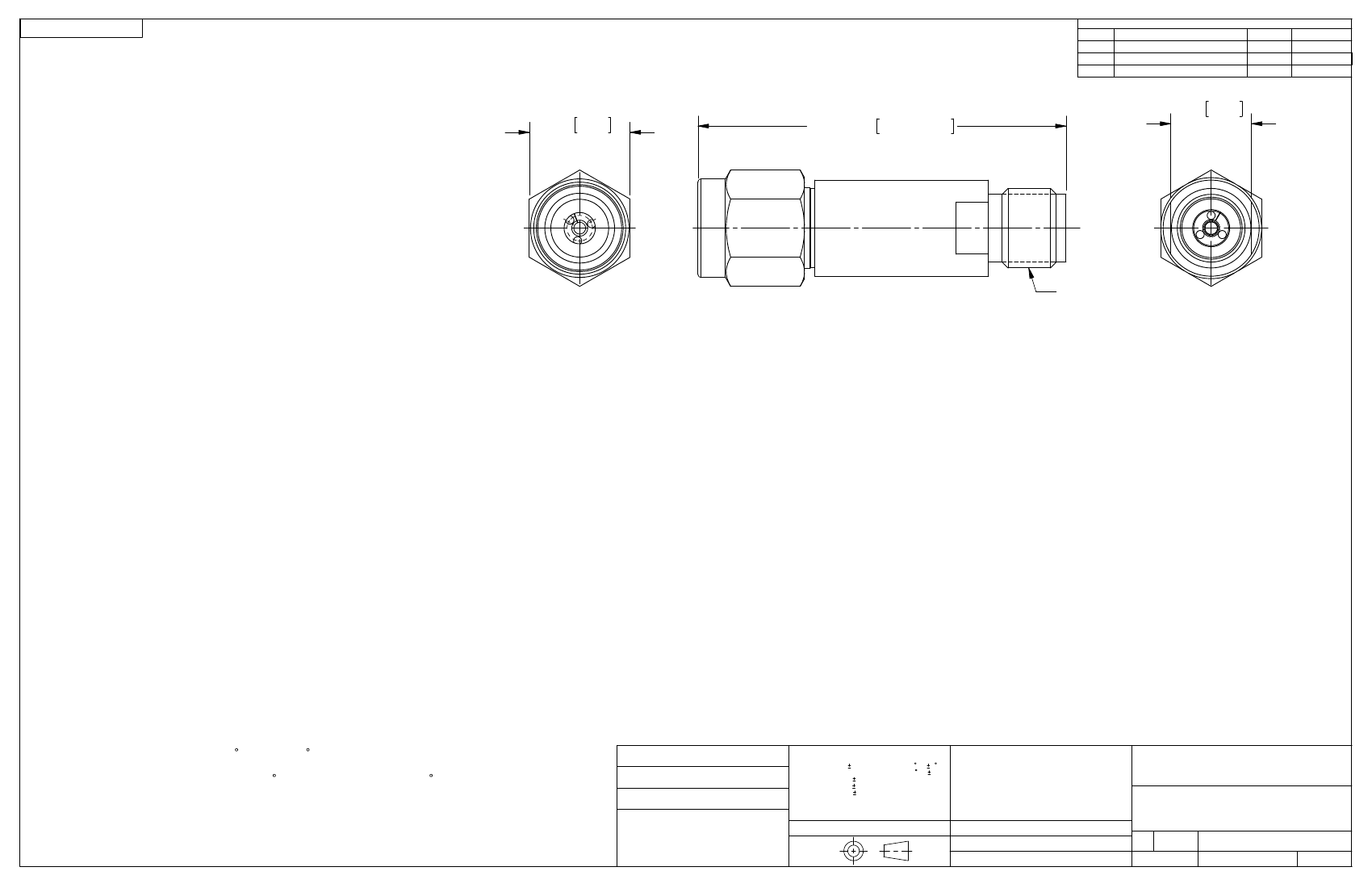

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 40314
01/14
STW
.312 7.92
HEX.
1.140±.020 28.96±0.51
.250 6.35
ACROSS
FLATS
MATERIAL:
BODIES, INSERTS, &
COUPLING NUT:
LOCK RING &
CONTACTS:
SLEEVE:
BEADS:
BELLOWS SPRINGS:
GASKET:
RESISTOR ELEMENT:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
1/4-36 UNS-2A
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
BRASS PER ASTM B16, ALLOY UNS No. C36000
POLYETHERMIDE PER ASTM D5205 "ULTEM 1000"
ELECTRO-DEPOSITED GOLD OVER NICKEL
SILICONE RUBBER PER A-A-59588,
CLASS 2B, GRADE 50/60
ALUMINUM NITRIDE SUBSTRATE WITH
TANTALUM NITRIDE RESISTOR:
GOLD PLATED TERMINATIONS
FINISH:
BODIES, INSERTS, &
COUPLING NUT:
CONTACTS:
SLEEVE:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
OPERATING TEMP.:
AVG. POWER:
PEAK POWER:
ENGAGEMENT/
DISENGAGEMENT:
50 OHMS
DC TO 32.0 GHz
1.25:1 MAX. DC TO 18 GHz
1.30:1 MAX 18 TO 26.5 GHz
1.35:1 MAX 26.5 TO 32 GHz
-55 C TO +125 C
2.0 WATT (POWER INPUT DERATED LINEARLY
FROM 25 C TO 0.5 WATTS AT 125 C)
500 WATTS (PEAK POWER FOR A DUTY CYCLE
OF 5X10-4 MAXIMUM PULSE DURATION OF
5 MICROSECONDS)
2 IN-LBS
PASSIVATED PER AMS-2700
GOLD PER ASTM B488, TYPE I, CODE C, CLASS 1.27,
OVER NICKEL PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
GOLD PER ASTM B 488, TYPE II,CODE C, CLASS 1.27,
OVER NICKEL PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
JMC 12/09/13
STW 12/10/13
STW 12/10/13
SVK JACK TO PLUG
DC-32.0 GHz
ATTENUATOR
95077
SIZE CAGE CODE DWG. NO.
B
M3933/30-XX
SHEET 1 OF 2
SCALE: 4:1
ROHS COMPLIANT
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
M3933/30-XX
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
dB VALUE
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
6.5
7
7.5
8
8.5
9
9.5
10
10.5
11
11.5
12
13
14
15
16
17
18
19
20
25
30
ATTENUATION ACCURACY (+/-)
DC-26.5 GHz 26.5-32.0 GHz DC-32.0 GHz
-
-
0.5/0
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
-
-
0.5
0.8
1
-
0.8
1
-
0.8
1
-
0.8
1
-
0.8
1
-
0.8
1
-
0.8
1
-
0.8
1
-
1
1.5
-
1
1.5
-
-
DCN 40314
01/14
STW
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
SVK JACK TO SVK PLUG
DC-32 GHz ATTENUATOR
SIZE CAGE CODE DWG. NO.
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
JMC 12/23/13
B
95077
SCALE: 4:1
M3933/30-XX
SHEET 2 OF 2
