Three Row -Male
The PowerMod® connector family offers
minimum size and high power. The high
performance contacts and insulator are
rated for 30 amps continuous. Applications
requiring lower operating temperatures can
be de-rated using our current-temperature
chart.
The three row male PowerMod connectors
are offered in 9, 12, 18, 24 and 30 circuit
sizes. The connectors are available with
straight crimp, straight PCB or right angle
PCB contacts.
APP connectors are manufactured using
the finest materials and world-class
manufacturing processes. They embody
the highest quality in the industry and meet
all applicable industry standards.
PowerMod
®
FEATURES
• Mechanically polarized housings
Only mate one-way, ensuring proper mating
• High reliability positive retention latches
Are made from stainless steel to provide optimum
performance
• PCB, panel or cable mounting
A wide variety of contact styles with optional
mounting brackets, panel clips and back-shell
hoods provide broad design flexibility
• Optional sequential contact mating
4 pin contact lengths can be custom specified for
make-first/break-last or make-last/break-first circuits
SPECIFICATIONS
Electrical
Current Rating
IEC 512-3, UL 1977 (Amperes)
UL / CSA Voltage Rating (AC/DC)
Creepage / Clearance Distance
Contact Resistance per IEC 512-2
Dielectric Withstanding Voltage (AC)
Contact Wire Range (AWG)
(mm²) *
Operating Temperature (°C)
(°F)
30
600
3.2 mm (.125") Min
3 milliohms
2,200
#24 to #12
0.25 to 4.0
-55° to 180°
-67° to 356°
Materials
Insulator
Pins
Tail Solder (PCB contacts)
Retention Clips
Hoods
PPS UL94 V-0, material group
III
a
Copper alloy, 10 µ inch Au over Ni
Sn/Ag/Cu (lead free)
Stainless steel
PBT UL94 V-0
* Stranding, IEC class 5 or lower
Mechanical
Mating Cycles No Load per IEC 512-5
Mating / Unmating Force per IEC 512-13
Contact Retention per IEC 512-8
1,000
10 oz (3N) avg.
18 lb (80N) Crimp
9 lb (40N) PCB Connector
ORDERING INFORMATION
PowerMod Part Number Plan - Three Row Male
Series
PM
3
09, 12, 18, 24, 30 Poles
M - Male
OO - None (Crimp contacts ordered separately)
BA - Straight PCB Solder Standard Length-RoHS
RA - R/A PCB Solder Standard Length-RoHS
Rows
3
# Poles
09
Gender
M
Contact
BA
Latch
L
Mounting
CH
-
Customized Connector
X
X
X
Tooling
Part
Number
TM0001
TP0001
Mil-Standard
M22520/1-01
N/A
Description
AF8 hand tool
WA27F pneumatic crimp tool
Consult factory for options
OO - None
SB - R/A PCB Snap Bracket
HB - R/A PCB Bracket with Hole
ST - Self-tapping screws for straight PCB mount
SP - Push in fastener for straight PCB mount
CH - With clam-shell hood
PC - Panel Clip
MC - Mounting Clip
SC - Screw for 1.6mm panel mount
L - Connector with latch (standard for contact type OO)
O - No latch
Turret & Locator for TM0001 & TP0001
TL0001
N/A
For pin contacts
TL0002
N/A
For socket contacts
PM1000G1 N/A
PM1002G1 N/A
PM1003G1 N/A
Four indent hand
tool with locator
Contact insertion tool
Contact extraction tool
www.andersonpower.com
TEMPERATURE CHARTS
200
180
160
140
120
100
80
60
40
20
0
3 Row
Current vs Temperature Rise
Temperature (°C)
200
180
160
140
120
100
80
60
40
20
0
3 Row
Ambient Temperature De-rating
Temperature (°C)
0
5
4mm²
10
15
Amps
12AWG
20
25
30
0
5
10
4mm²
15
30 circuits all energized
Amps
12AWG
20
25
30
30 circuits all energized

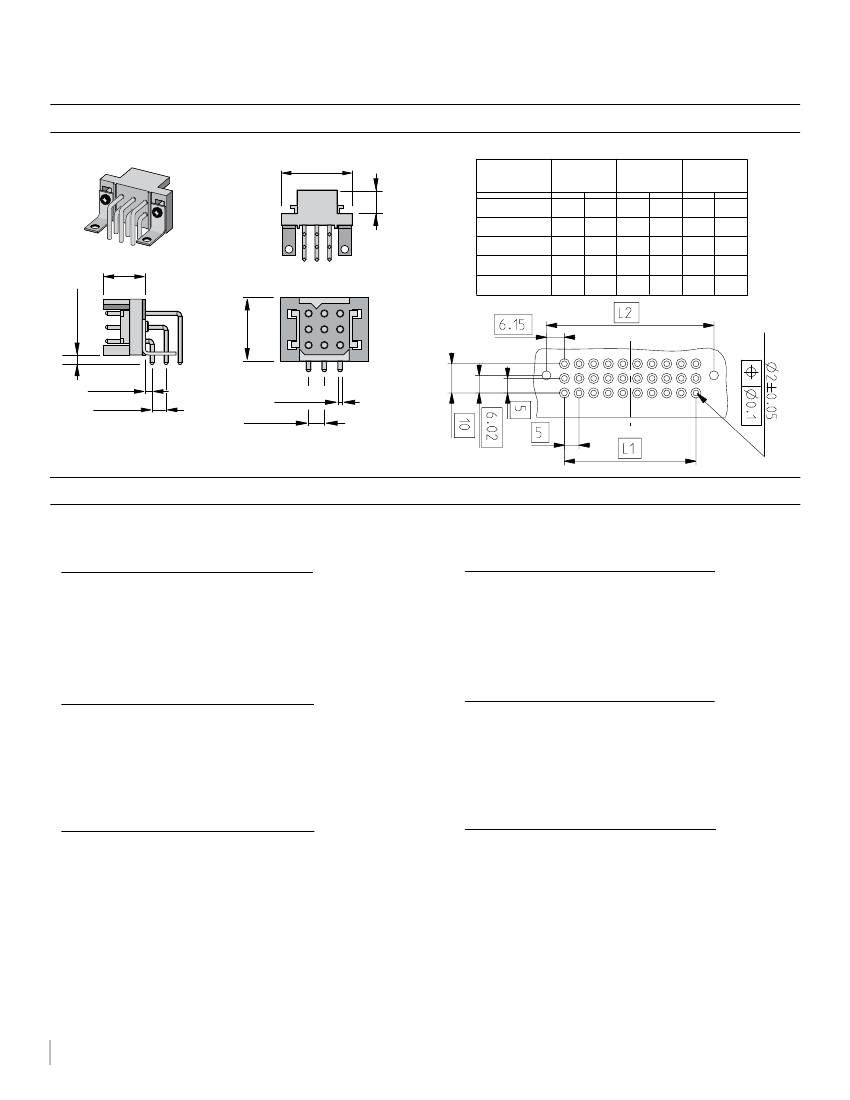

DIMENSIONS - mm(in.)
Cable Connector
ROWS
A
CONTACTS mm in.
3 - 09
3 - 12
3 - 18
3 - 24
3 - 30
28.5
33.5
43.5
53.5
63.5
1.12
1.32
1.71
2.11
2.50
20.4
(0.80)
9.4
(0.37)
A
22.1
(0.87)
7.9
(0.31)
See accessory section for panel clip and mounting clip cut-out dimensions.
ORDERING INFORMATION
Crimp Contacts
Part
Number
Description
Standard Length 7.7mm
PM16P2024S30
Pin
PM16P1620S30
Pin
PM16P1416S30
Pin
PM16P12S30
Pin
Pre-Mate 9.3mm
PM16P2024A30
PM16P1620A30
PM16P1416A30
PM16P12A30
Pre-Mate 8.5mm
PM16P2024B30
PM16P1620B30
PM16P1416B30
PM16P12B30
Post-Mate 6.4mm
PM16P2024C30
PM16P1620C30
PM16P1416C30
PM16P12C30
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
AWG
Wire
sq. mm
0.50 / 0.75
0.50 / 1.5
1.5 / 2.5
2.5 / 4.0
0.50 / 0.75
0.50 / 1.5
1.5 / 2.5
2.5 / 4.0
0.50 / 0.75
0.50 / 1.5
1.5 / 2.5
2.5 / 4.0
0.50 / 0.75
0.50 / 1.5
1.5 / 2.5
2.5 / 4.0
Cable Connector
Part
Number
PM309MOOLOO
PM312MOOLOO
PM318MOOLOO
PM324MOOLOO
PM330MOOLOO
Description
3x3 MALE Cable Connector
3x4 MALE Cable Connector
3x6 MALE Cable Connector
3x8 MALE Cable Connector
3x10 MALE Cable Connector
With Snap-in Panel Clip
Part
Number
PM309MOOLPC
PM312MOOLPC
PM318MOOLPC
PM324MOOLPC
PM330MOOLPC
Description
3x3 MALE Cable Connector
3x4 MALE Cable Connector
3x6 MALE Cable Connector
3x8 MALE Cable Connector
3x10 MALE Cable Connector
#24 / 20
#20 / 16
#16 / 14
#12
#24 / 20
#20 / 16
#16 / 14
#12
#24 / 20
#20 / 16
#16 / 14
#12
#24 / 20
#20 / 16
#16 / 14
#12
Panel Mount With Mounting Clip
Part
Number
PM309MOOLMC
PM312MOOLMC
PM318MOOLMC
PM324MOOLMC
PM330MOOLMC
Description
3x3 MALE Cable Connector
3x4 MALE Cable Connector
3x6 MALE Cable Connector
3x8 MALE Cable Connector
3x10 MALE Cable Connector
With Clam Shell Hood &
Strain Relief
Part
Number
PM309MOOLCH
PM312MOOLCH
PM318MOOLCH
PM324MOOLCH
PM330MOOLCH
Description
3x3 MALE Cable Connector
3x4 MALE Cable Connector
3x6 MALE Cable Connector
3x8 MALE Cable Connector
3x10 MALE Cable Connectorr
Panel Mount With Screws
Part
Number
PM309MOOLSC
PM312MOOLSC
PM318MOOLSC
PM324MOOLSC
PM330MOOLSC
Description
3x3 MALE Cable Connector
3x4 MALE Cable Connector
3x6 MALE Cable Connector
3x8 MALE Cable Connector
3x10 MALE Cable Connector
www.andersonpower.com
DIMENSIONS - mm(in.)
