531408-5 datasheet, PDF - EEWORLD Datasheet

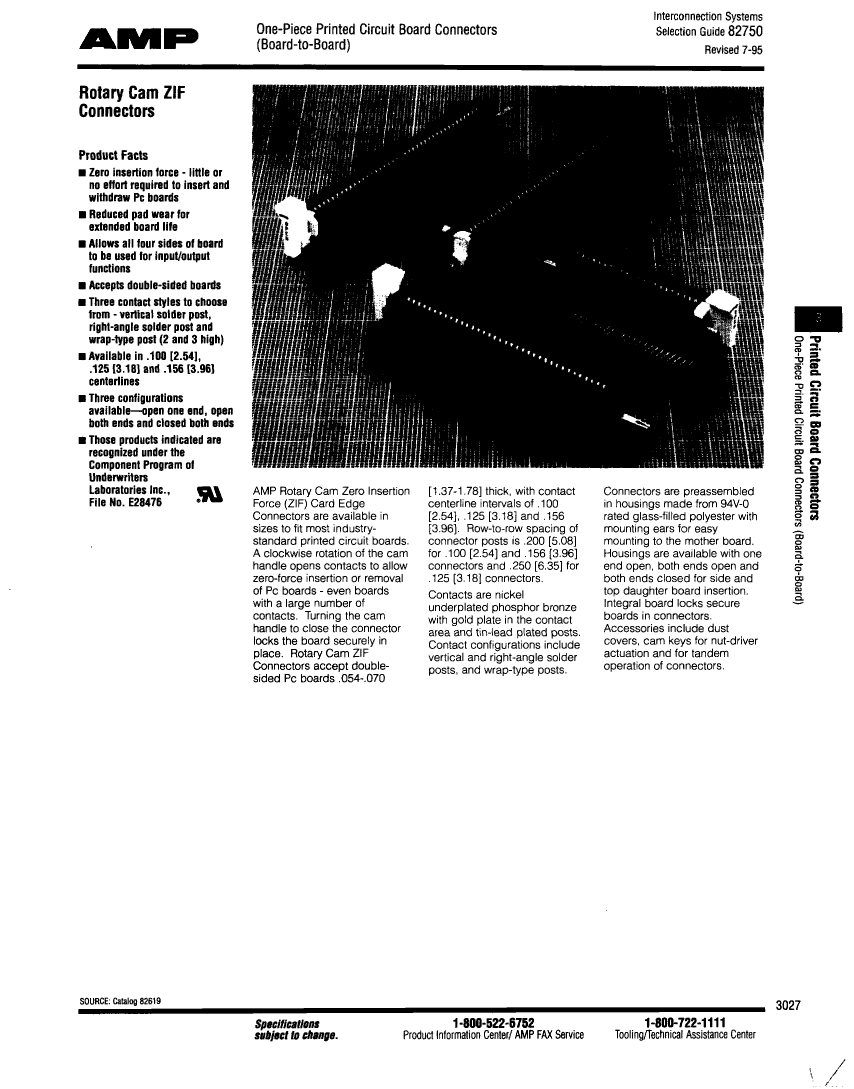

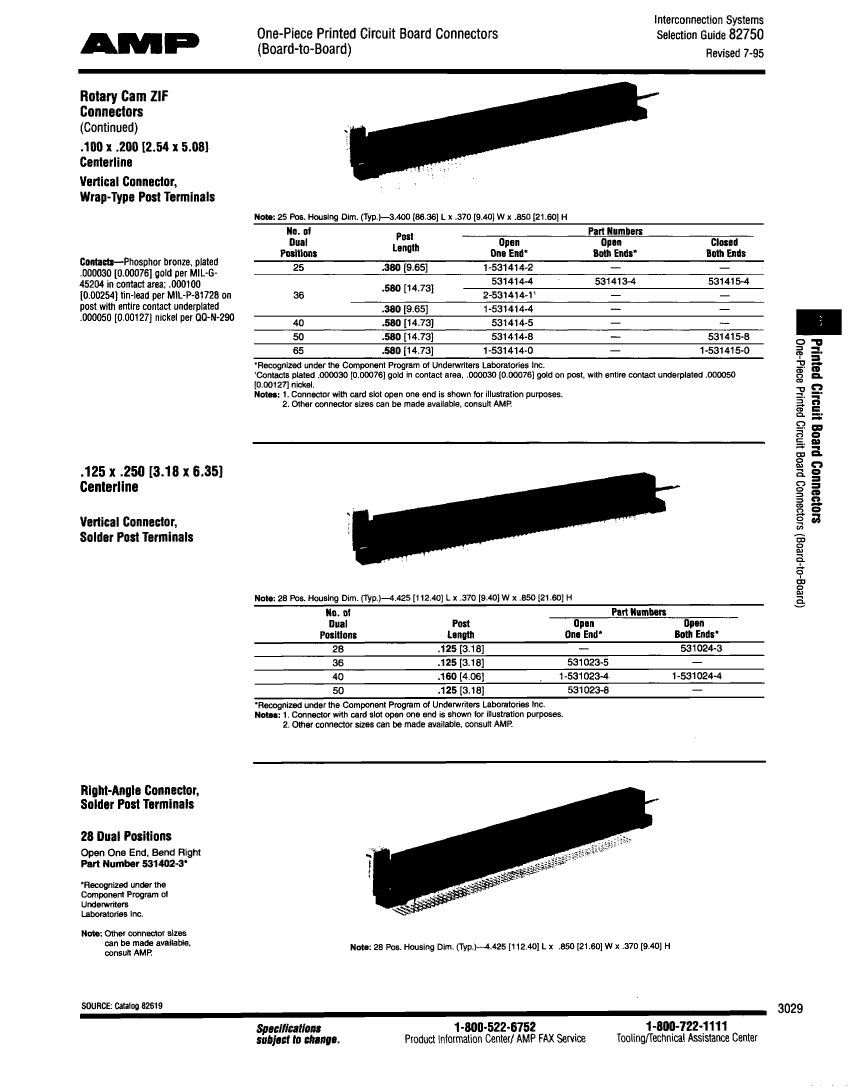

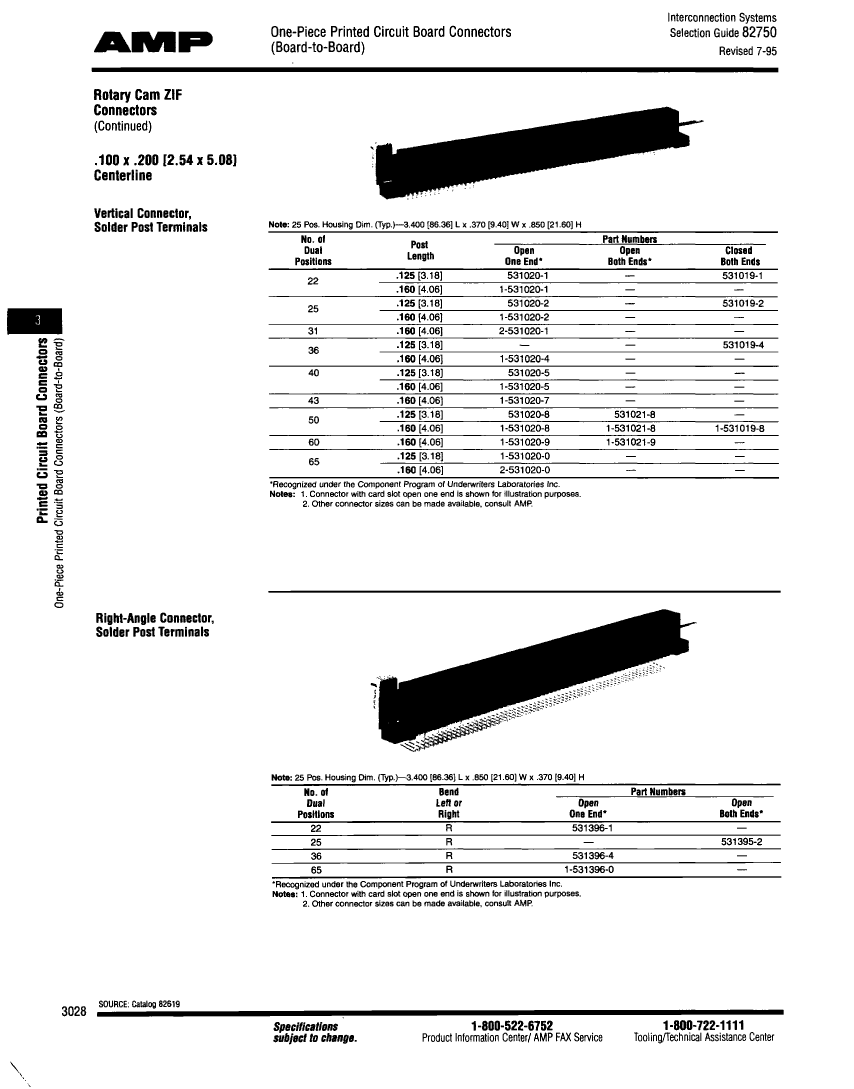

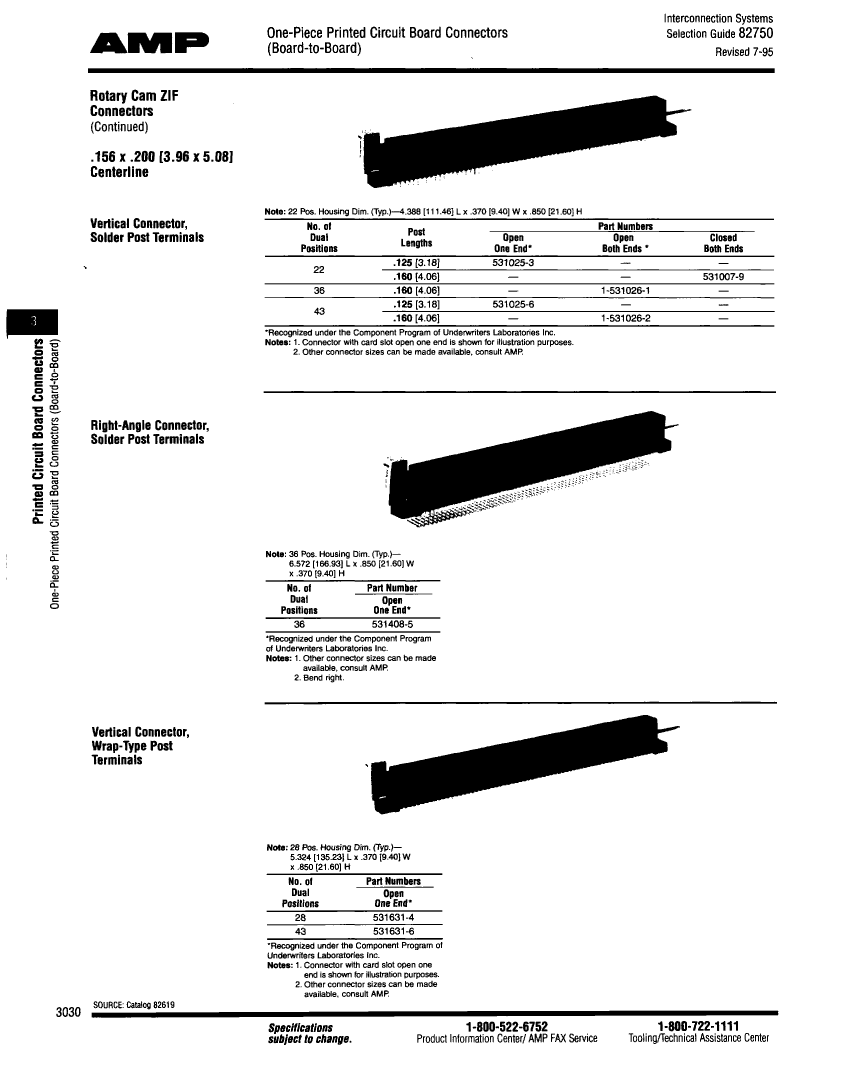

531408-5: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.156 PITCH,PC TAIL TERMINAL; CategoryThe connector; File Size188KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531408-5 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.156 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	OPEN ONE END
body width	0.44 inch
subject depth	1.162 inch
body length	6.572 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Durability	5000 Cycles
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.156 inch
Match contact row spacing	0.2 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.16 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

	531408-5	531023-5	531402-3	531631-4	531413-4	531631-6
Description	EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.156 PITCH,PC TAIL TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.1 PITCH,PC TAIL TERMINAL	CONNECTOR, 56 CONTACT(S), FEMALE, RIGHT ANGLE SINGLE PART CARD EDGE CONN, SOLDER	CONNECTOR, 56 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, WIRE WRAP	EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.1 PITCH,WRAP POST TERMINAL	CONNECTOR, 86 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, WIRE WRAP
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Terminal pitch	3.9624 mm	3.17 mm	3.17 mm	3.96 mm	2.54 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	36	72	56	56	36	86
Base Number Matches	1	1	1	1	1	1
Is Samacsys	N	-	N	N	N	N
Contact point gender	-	FEMALE	FEMALE	FEMALE	-	FEMALE
DIN compliance	-	NO	NO	NO	-	NO
Filter function	-	NO	NO	NO	-	NO
IEC compliance	-	NO	NO	NO	-	NO
MIL compliance	-	NO	NO	NO	-	NO
Mixed contacts	-	NO	NO	NO	-	NO
UL Flammability Code	-	94V-0	94V-0	94V-0	-	94V-0
