87369-0600: DescriptionHeaders & Wire Housings 6CKT CRP HSG; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87369-0600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87369-0600	-	-	View	Buy Now

87369-0600 Overview

Headers & Wire Housings 6CKT CRP HSG

87369-0600 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	87369-0600 - Molex Female Connector Housing - N/A, 2mm Pitch, 6 Way, 1 Row
Other features	COMPATIBLE CONTACTS: 50212-8000; 50212-8100, POLARIZED
body width	0.165 inch
subject depth	0.246 inch
body length	0.541 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

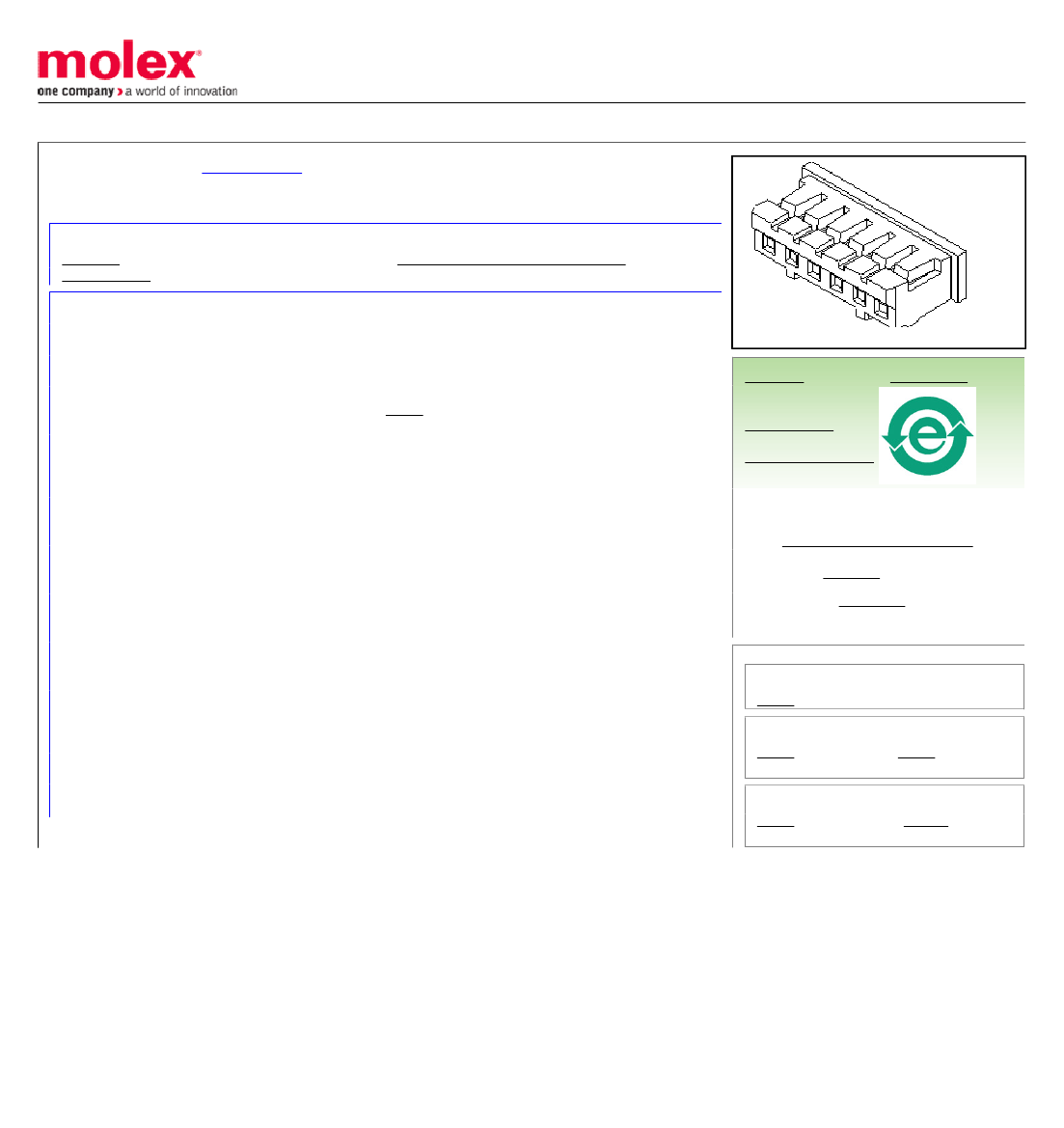

Preview

Download Datasheet

View All

This document was generated on 10/08/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

87369-0600

Active

2.00mm Pitch Crimp Housing, Single Row, 6 Circuits

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Series

General

Product Family

Series

Application

Product Name

UPC

Crimp Housings

87369

Signal, Wire-to-Board

N/A

800754325974

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Stackable

Temperature Range - Operating

6

Natural

94V-0

Female

No

Yes

Nylon

0.214/g

1

Bag

No

2.00mm

No

-25°C to +85°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87369Series

Mates With

89400 Vertical Header, 89401 Right Angle

Header

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

RPS-87369-001

SD-87369-**0*

Use With

50212 Crimp Terminals. 104440 2.00mm

Pitch Crimp Terminals

This document was generated on 10/08/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
