50-12SN-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 50-12SN-3

Preview

50-12SN-3: DescriptionStandard Card Edge Connectors 6/12P SOLDER TAILS .200" ROW SPACING; CategoryThe connector The connector; File Size131KB，2 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

50-12SN-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	50-12SN-3	-	-	View	Buy Now

50-12SN-3 Overview

Standard Card Edge Connectors 6/12P SOLDER TAILS .200" ROW SPACING

50-12SN-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cinch Connectivity Solutions
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	CARDCON, BIFURCATED SEMI-BELLOWS CONTACTS, POLARIZATION AVAILABLE
body width	0.34 inch
subject depth	0.458 inch
body length	1.239 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1800VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	50
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	MIL-C-21097
Terminal length	0.156 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

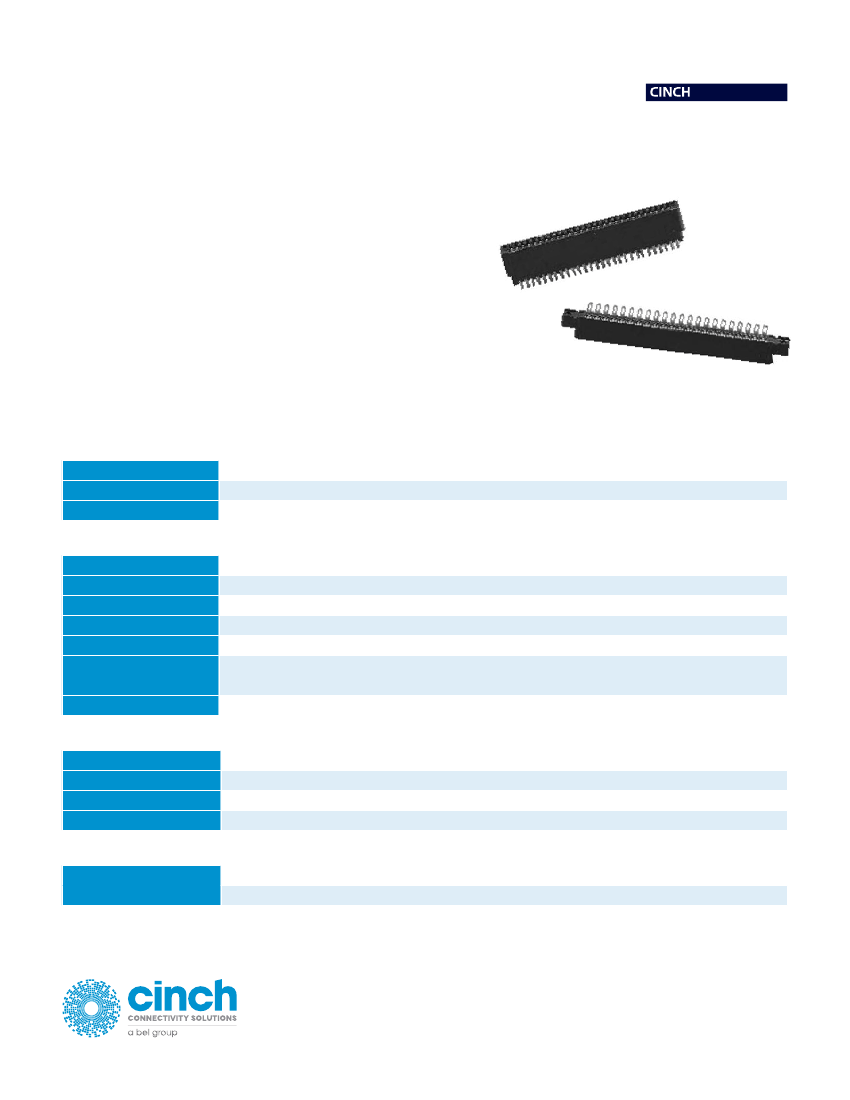

CARDCON

TM

EDGE CONNECTOR COMMERICAL

.156" (3.96mm) Density Dip Solder

INDUSTRIAL

Features

•

centers or .200" (5.08mm) row centers

• Available with unique tails for PC board retention; holds the connector

• Bifurcated semi-bellows contacts for added contact reliability

• Ideal for applications involving vibration or board irregularities

• Contact positions: 6, 10, 12, 15, 18, 22, 24, and 25

• Accepts single or double-sided .062" (1.59mm) thick PC boards

•

• Meets applicable performance criteria of MIL-C-21097

•

Materials

Insulation Material

Contact Material

Standard Contact Plating

Spring brass

Environmental

Shock

Operating Temperature

Vibration

Humidity

Accessories

(order separately)

Polarizing Key

(two types, order separately)

-65°C to +105°C

a) for between-contact polarization

b) for in-contact polarization

Attach to mounting ears and guide PC board into connector

Card Guide Posts

Electrical

Withstanding Voltage

Current Rating

Contact Resistance

Insulation Resistance

1800 VAC RMS (@ sea level)

5 Amps

6 Milliohms maximum

5000 Megohms minimum

Mechanical

Individual Contact Insertion

and Separation Force

16 oz. maximum with .070" (1.78mm) blade

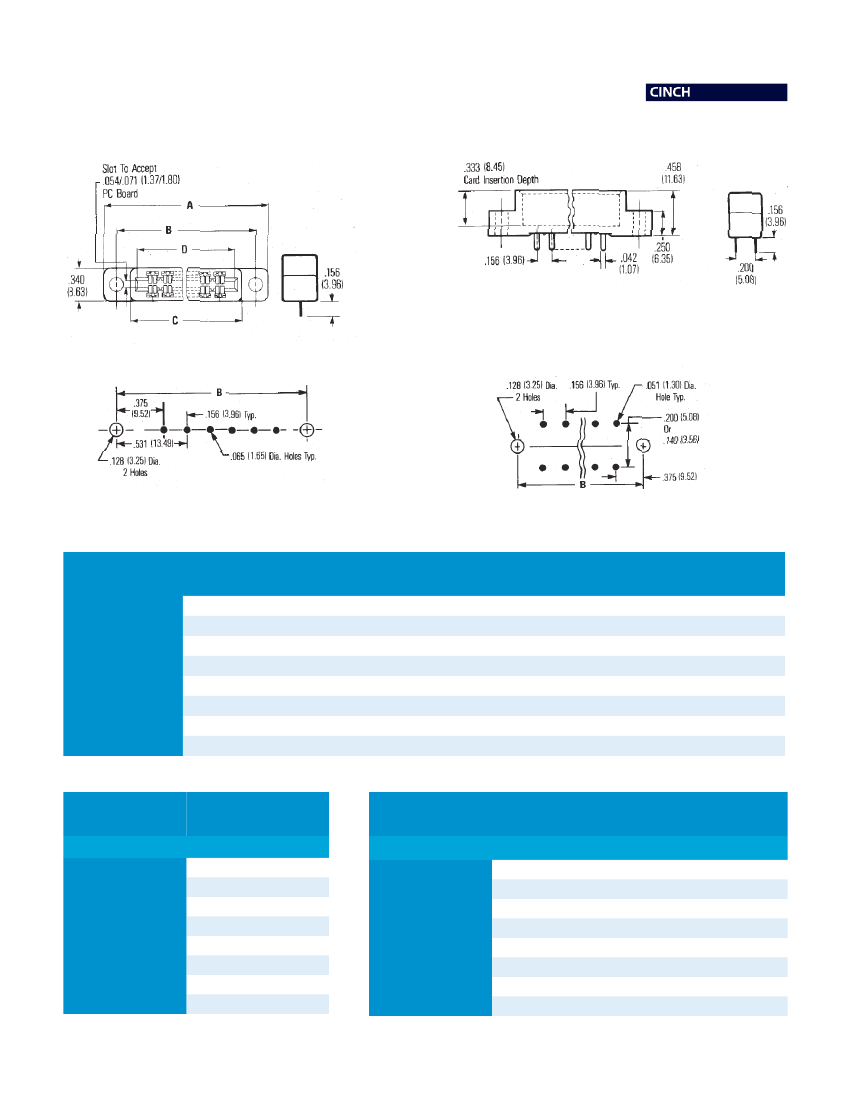

4

50-12SN-3 Related Products

	50-12SN-3	50-22SN-5	50-44SN-3	50-24SN-3	50-18SN-5
Description	Standard Card Edge Connectors 6/12P SOLDER TAILS .200" ROW SPACING	Standard Card Edge Connectors 22P CARD EDGE CONN SNGL ROW SCKT .156	Standard Card Edge Connectors 44P CARD EDGE CONN DIP SLDR EYELET.156	Standard Card Edge Connectors 12/24P SOLDER TAILS .200" ROW SPACING	Standard Card Edge Connectors 18/18P SOLDER TAILS .128" MT HOLE .156"L
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	CARDCON, BIFURCATED SEMI-BELLOWS CONTACTS, POLARIZATION AVAILABLE	CARDCON, BIFURCATED SEMI-BELLOWS CONTACTS, POLARIZATION AVAILABLE	CARDCON, BIFURCATED SEMI-BELLOWS CONTACTS, POLARIZATION AVAILABLE	CARDCON, BIFURCATED SEMI-BELLOWS CONTACTS, POLARIZATION AVAILABLE	CARDCON, BIFURCATED SEMI-BELLOWS CONTACTS, POLARIZATION AVAILABLE
body width	0.34 inch	0.34 inch	0.34 inch	0.34 inch	0.34 inch
subject depth	0.458 inch	0.458 inch	0.458 inch	0.458 inch	0.458 inch
body length	1.239 inch	4.285 inch	3.739 inch	2.177 inch	3.66 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU	AU	AU ON NI	AU ON NI	AU
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	1800VAC V	1800VAC V	1800VAC V	1800VAC V	1800VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	50	50	50	50	50
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	1	2	2	1
Number of rows loaded	2	1	2	2	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL
reliability	MIL-C-21097	MIL-C-21097	MIL-C-21097	MIL-C-21097	MIL-C-21097
Terminal length	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	22	44	24	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N	.278 N
Base Number Matches	1	1	1	1	1
PCB contact row spacing	5.08 mm	-	5.08 mm	5.08 mm	-
