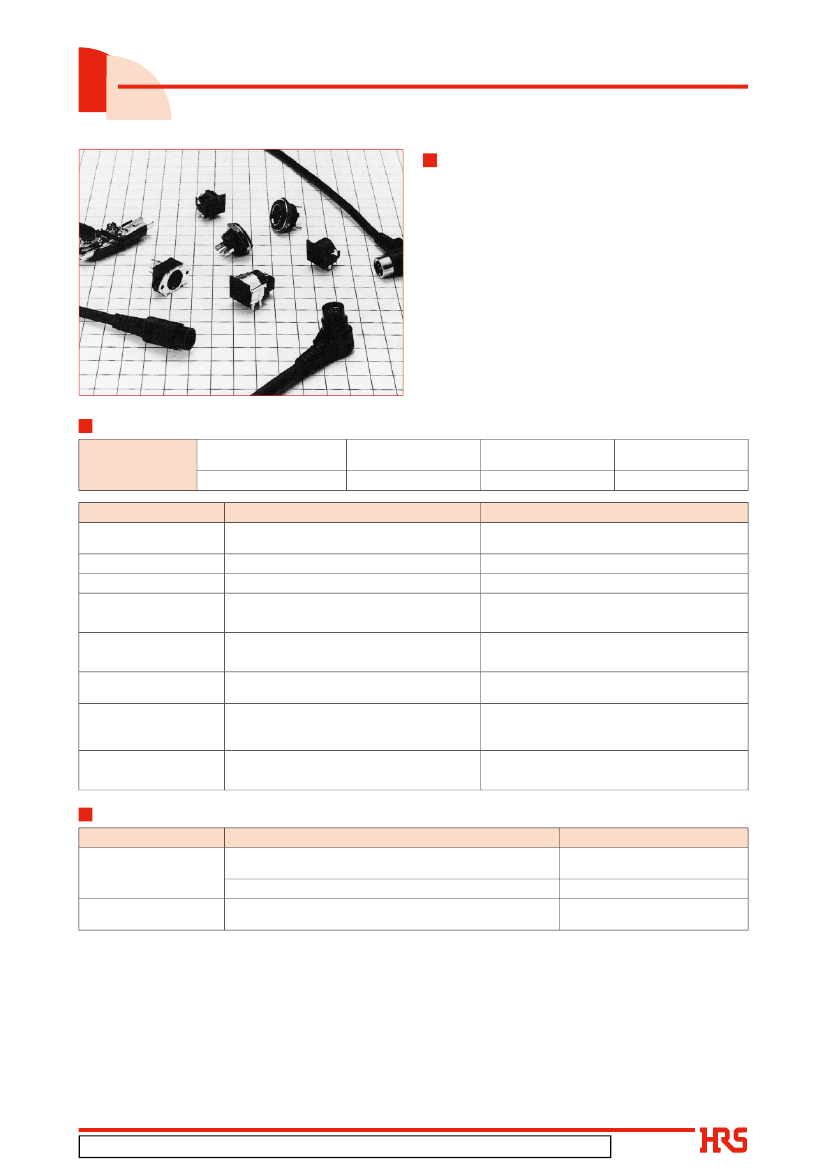

High Performance Miniature Circular Connectors
HR12 Series
Features
•Snap lock allows for easy insertion and extraction
and prevents the accidental un-mating of the
connector due to vibration or impact.
•The plug diameter range from Ø12mm to Ø16mm,
and satisfies the need for small-size, light-weight
and high-density electronic components.
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
•Equipped with internal metal parts and a shielding
mechanism, the HR12 (20-contacts) and HR212
feature enhanced protection against EMI.
Product Specifications
Ratings
Rated voltage
100V AC, 140V DC
Items
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Vibration resistance
5. Shock resistance
6. Mating Cycles
7. Temperature cycle
Rated current
1A
Operating temperature
range
-15ç to +60℃
Storage temperature
range
-10ç to +60℃
Specifications
30mø max. (excluding the cable conductor
resistance)
100Mø min.
No flashover or dielectric breakdown.
No electrical discontinuity for 10µs or greater.
No electrical discontinuity for 10µs or greater.
30mø max. of contact resistance (excluding
the cable conductor resistance)
Insulation resistance : a minimum of 100Mø
Conditions
Measured at DC 1mA
Measured at DC 250V
AC 300V for 1 minute
10 to 55Hz/cycle, amplitude : 0.75mm,
3 axis directions, 2 hours each
Acceleration : 490m/s
2
，
duration : 11ms,
3 axis directions, 3 cycles each
1,000 times
-25ç : 30 minutes
➝
Normal temperature : 10
to 15 minutes
➝
70ç : 30 minutes
➝
Normal
temperature : 10 to 15 minutes, left for 5 cycles
8. Moisture resistance
Insulation resistance : 1Mø min. (at high humidity) Temperature : 40ç,
10Mø min. (when dry)
relative humidity : 90 to 95%, left for 96 hours
Material / Finish
Part
Insulator
Material
Soft vinylchloride (UL94-0) and Polypropylene (UL94V-0)
PBT resin (UL94V-0) and Polycarbonate (UL94V-1)
Brass, and Zinc alloy
Copper alloy or phosphor bronze
Finish
––––––––
Tin plated and Nickel plated
Tin plated or selective gold plated
and silver plated
Contacts
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.8④
1
HR12 Series●High Performance Miniature Circular Connectors
Product Number Structure
Cable Plug
HR12 A - 10 L A A 8 P C A 300 A
(**)
❶
❷
❸
❹
❺
❻
❼
½
❾
Plug (Assembly type) and Receptacle
HR12 - 10 R C - 8 SDL
(**)
❶
❸
❹
❻
❼
½
Attachment
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR12 - 10 R - SP
(**)
❶
❸
❹
q
Model : Series name.
HR212 is a enhanced shielding type.
w
Indication of terminal connector provided or not:
For models with connectors on both sides, different signs are used depending on the type of connector on
one side.
e
Shell size :
Indicates the outside diameter of the plug mating part.
r
Connector form :
P : Straight plug
LP or L : Right angle
R : Receptacle
tCable
removal directions for a right angle plug are classified as follows :
A : The cable removal direction is on the right with the guide facing upward viewed from the mating part.
B : The cable removal direction is on the left with the guide facing upward viewed from the mating part.
yTypes
of connector :
A connector with two or more varieties is classified by A, B, C,.......
uNumber
of contacts
i
Contact form :
Classifies the type of contacts as follows: The plug has only male contacts, and the receptacle has only
female contacts.
P : Male contact PC: Crimp male contact (assembly type plug)
SC : Crimp female contact SD : Straight dip female contact SDL : Right angle dip female contact
oShape
of cable :
S : Straight cord
C : Curled cord
!0
Type of cable :
Cables connected to the plug are identified by A, B, C,..... when they are different in construction
and number of cores.
!1
Cable length :
indicates the length in mm of the cable connected to the plug.
Curled cord length : Length of curled part
Straight cable length : Cable length
!2
Shape of cable end:
Plugs with cables of the same shape but different in cable end dimensions and finishing are identified by A,
B, C,.....
!3
Types of accessories :
SP : Stopper plate
!4
Other specifications :
A two-digit character is added to indicate other specifications as needed.
2
HR12 Series●High Performance Miniature Circular Connectors

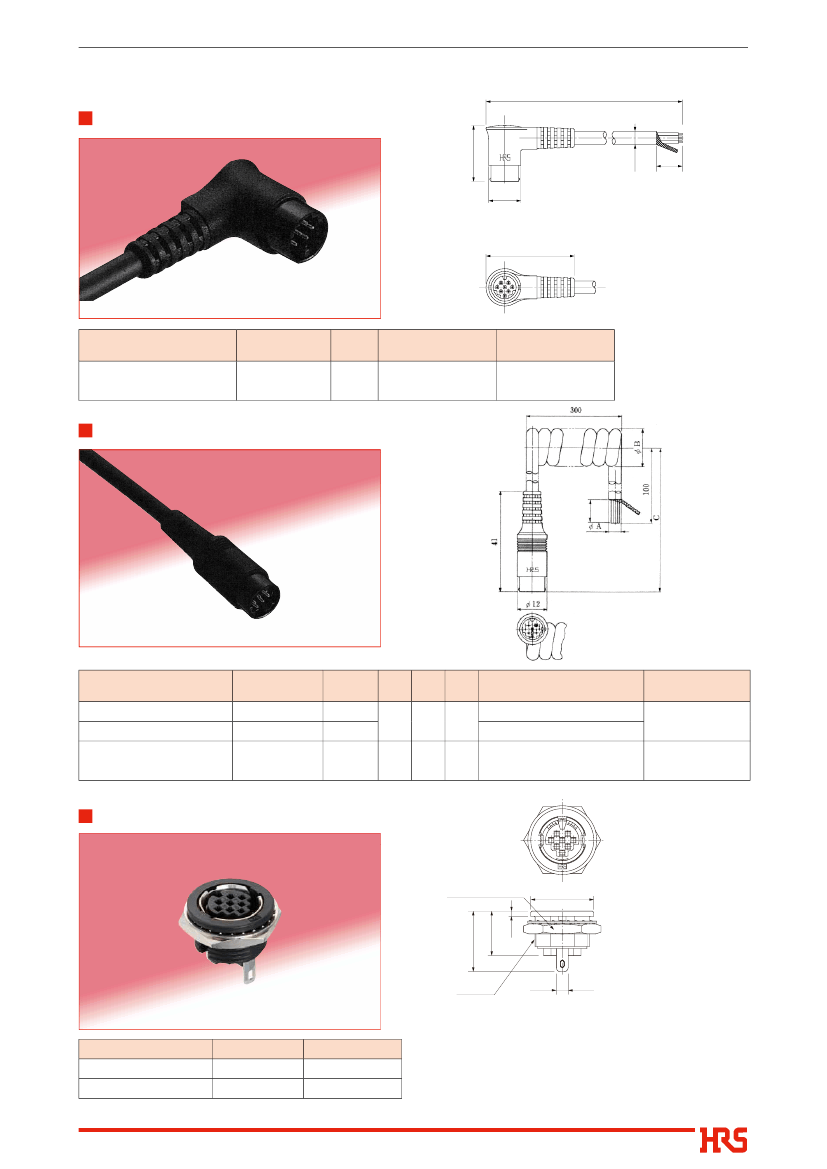

HR12 Type
Right Angle Plug
21
1065
Ø4.8
15
Ø12
33
２
５
４
７
８
６
１
３
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR12-10LA8PS1065(71)
Part No.
HR12-10LA8PS1065(71)
HRS No.
112-3040-0 71
No. of
contacts
8
No. of conductors
of cable
8-conductor
(Shielded)
Remarks
Straight cord
Terminal tin plated
Straight Plug
10 max.
HR12-10P8PC300(71)
No. of
contacts
112-0101-6 71
5
HRS No.
112-0102-9 71
8
10
(Representative example)
Part No.
HR12-10P5PCD300(71)
HR12-10P8PC300(71)
ØA
4.8
5.5
ØB
15
17.5
C
720
700
No. of conductors of cable
5-conductor (Shielded)
8-conductor (Shielded)
10-conductor (Shielded)
Remarks
Curled cord
Terminal tin plated
Curled cord
Terminal gold plated
HR12-10P10PCAE300(71) 112-0133-2 71
Receptacle (Crimp Type)
１
２
４
５
７
８
３
６
Hexagon nut 17
Ø16
15.4
11.3
1.3
M14∞1
3
(Representative example)
HR12-10R-8SC(71)
Part No.
HR12-10R-5SC(71)
HR12-10R-8SC(71)
HRS No.
112-0501-4 71
112-0504-2 71
No. of contacts
5
8
Remarks: For the mounting holes, see page 4.
3
HR12 Series●High Performance Miniature Circular Connectors

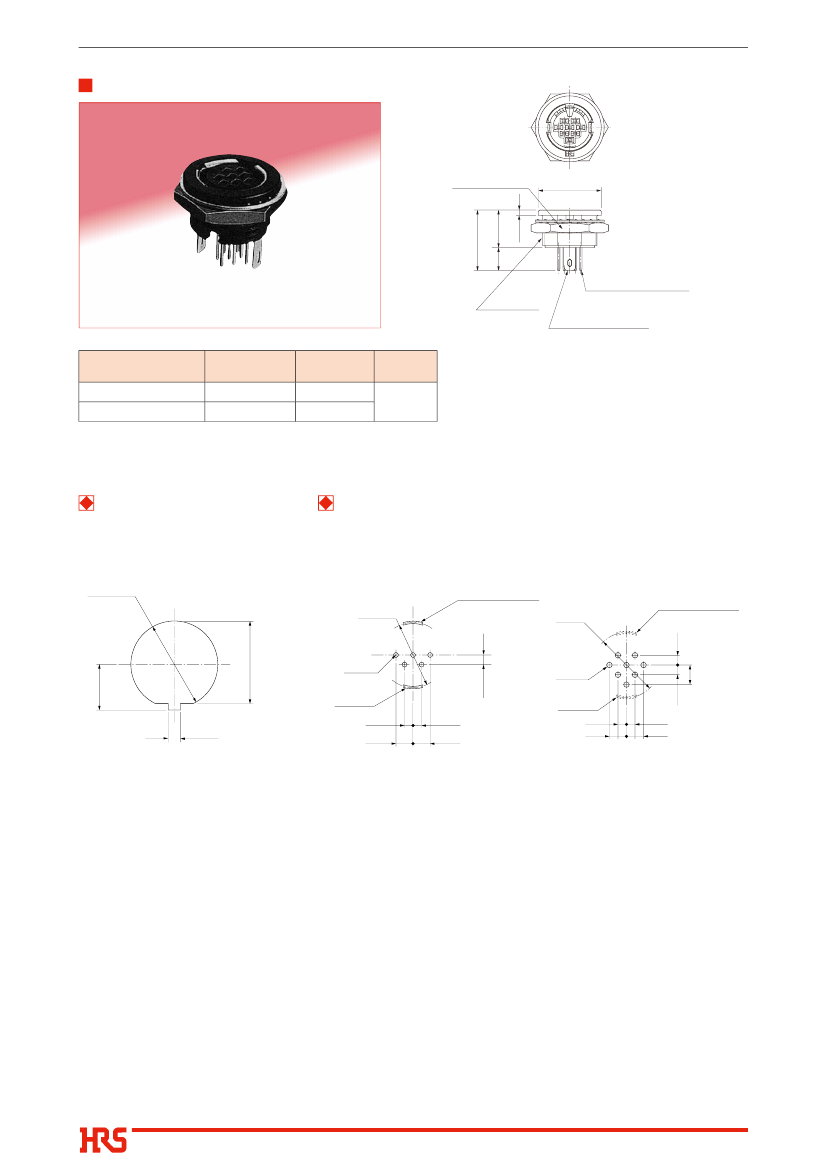

Receptacle (Straight Dip Type)
１
２
５
３
Hexagon subtend
dimension 17
Ø16
9.5
5.9
15.4
1.3
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR12-10R-8SD(71)
No. of
contacts
5
8
M14×1
Dip post (0.6×0.4)
(Contact)
Dip post (3×0.3)
(Grounding terminal)
(Representative example)
Remarks
Terminal
tin plated
Part No.
HR12-10R-5SD(71)
HR12-10R-8SD(71)
HRS No.
112-0502-7 71
112-0505-5 71
Remarks : Refer to following diagram for panel mounting dimensions
and dip post arrangement dimensions.
Panel mounting
dimensions
(Panel thickness 1 to 4.7)
Ø14.1
+0.1
0
Receptacle Dip Post
Ø10.7
Hole for
grounding terminal
3.2×0.4
Ø10.7
2
4
5
+0.1
Ø0.8
0
Hole for
grounding terminal
3.2×0.4
１
３
６
８
４
７
２
５
13.4
+0.1
0
1
3
7.4
1.6
Ø0.8
0
(5 places)
3.2×0.4
+0.1
1.6
1.4
2.8
1.6
3.2
+0.1
0
(8 places)
3.2×0.4
1.4
2.8
2
+0.1
0
1.4
2.8
1.4
2.8
HR12-10R-5SD(71)
HR12-10R-8SD(71)
Remarks : Dimensional tolerance of ±0.05mm is recommended for
the board arrangement.
4
HR12 Series●High Performance Miniature Circular Connectors

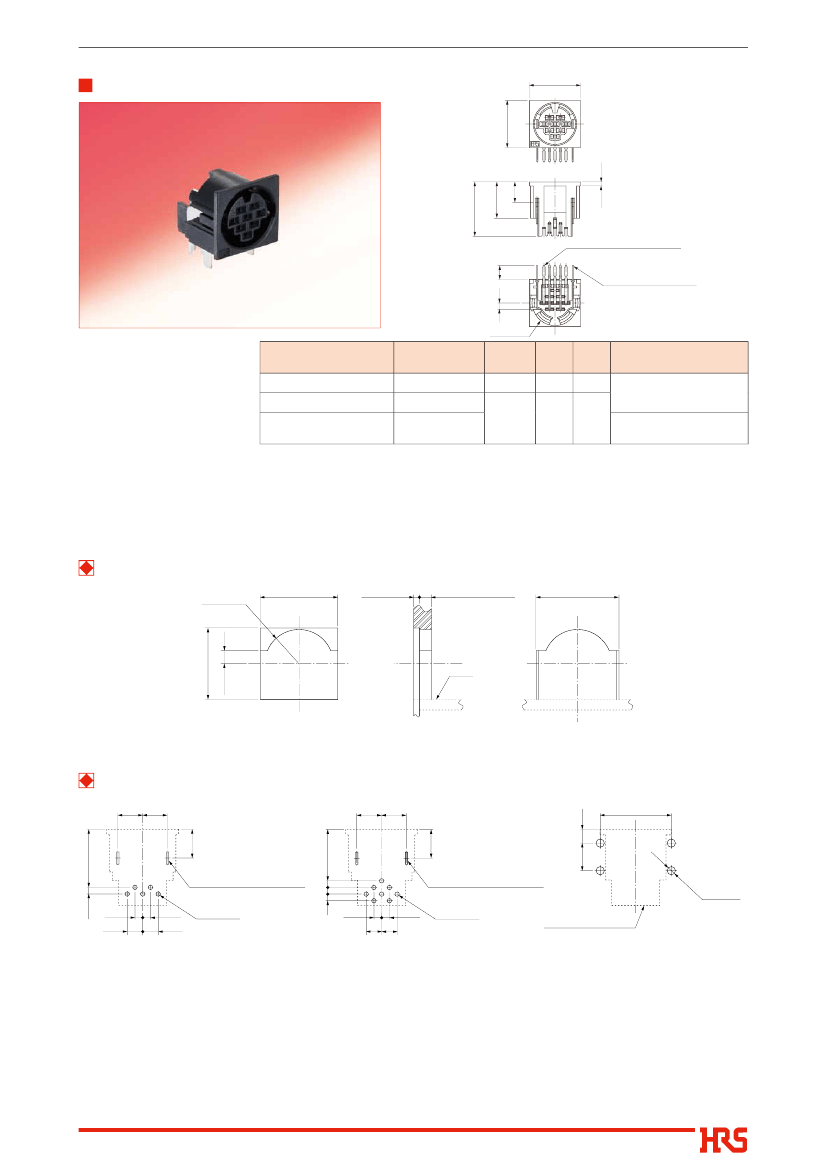

Receptacle(Right Angle Dip)
12
３
13
１
２
５
A
B
5.2
3.5
1
Dip post(0.6×0.4)
(Contact)
Dip post(2×0.3)
(Grounding terminal)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR12-10R-8SDL(71)
R5.75
2
(Representative example)
B
10.5
9.3
Remarks
Terminal tin plated
Equipped with stopper plate
Terminal tin plated
(Note)
No. of
Part No.
HRS No.
A
This product should be mounted
contacts
on the panel to hold with the
HR12-10R-5SDL(71)
112-0503-0 71
5
13
interface portion,as shown in the
112-0506-8 71
panel mounting hole dimension HR12-10R-8SDL(71)
diagram.
8
13.8
When it is difficult to press the HR12-10RC-8SDL(71) 112-0514-6 71
connector into the panel, we
recommend using the attached Remarks : For dip post arrangement see below figure.
stopper plate HR12-10R-SP(71)
(112-0507-0 71) as described on
page 7.
Panel mounting dimensions
R5.8
+0.1
0
13.1
0
(Connector support part)
+0.1
1
+0.2
0
2 MIN.
(Connector support part)
14 MIN.
(For movement)
12.1
+0.1
0
+0.3
0
PCB
Note : Pay attention that this dimension is not available for 10 contacts.
Receptacle dip post arrangement
5.2
5.2
2.5
2.2
4.5
4.5
4.5
4.5
12.9
10.5
9.3
５
３
２
４
１
1.2 1.2
1.2
Grounding terminal holes
(2 places) 2.2
+0.1
×0.4
+0.1
0
0
1.4
2.8
Ø0.8
0
(5 places)
+0.1
８
７
５
２
４
１
６
３
Grounding terminal holes
(2 places) 2.2
+0.1
×0.4
+0.1
0
0
1.4
Ø0.8
0
(8 places)
+0.1
5
1.2
1.4
2.8
1.4
2.8 2.8
Position of applicable
receptacle
Ø1.5
+0.1
0
(4 places)
HR12-10R-5SDL(71)
HR12-10R-8SDL(71)
HR12-10R-SP(71) (Stopper plate)
(Applicable PCB thickness range 1-2)
Remarks : Dimensional tolerance of ± 0.05mm is recommended for the board arrangement.
5
