MS3106A20-16P-RES datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> MS3106A20-16P-RES

Preview

MS3106A20-16P-RES: DescriptionCircular MIL Spec Connector ER 9C 7#16 2#12 PIN PLUG; CategoryThe connector; File Size44KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS3106A20-16P-RES Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS3106A20-16P-RES	-	-	View	Buy Now

MS3106A20-16P-RES Overview

Circular MIL Spec Connector ER 9C 7#16 2#12 PIN PLUG

MS3106A20-16P-RES Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Circular MIL Spec Connector
RoHS	N
Number of Positions	9 Position
Insert Arrangement	20-16
Contact Gender	Pin (Male)
MIL Type	MIL-DTL-5015
Product	Plugs
Shell Size	20
Shell Style	In-Line
Shell Plating	Olive Drab Chromate over Cadmium
Factory Pack Quantity	1
Unit Weight	2.008252 oz

Preview

Download Datasheet

View All

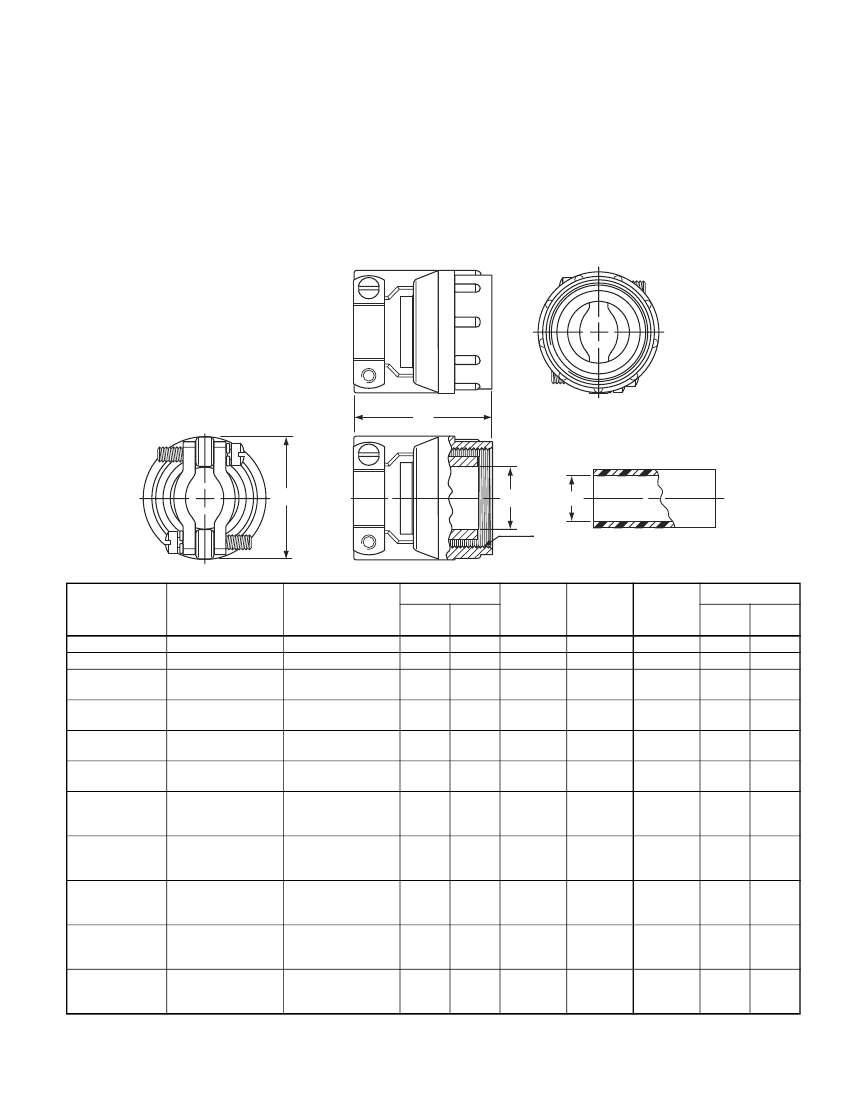

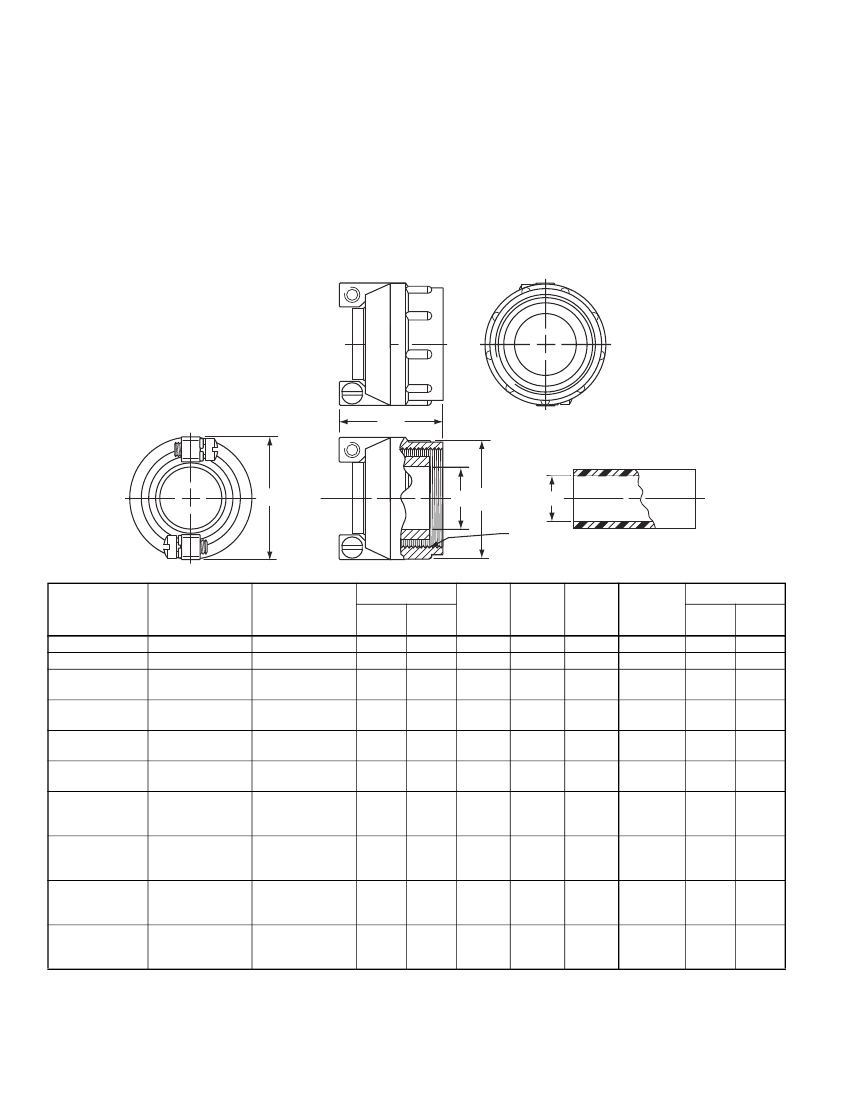

MS/Standard Accessories

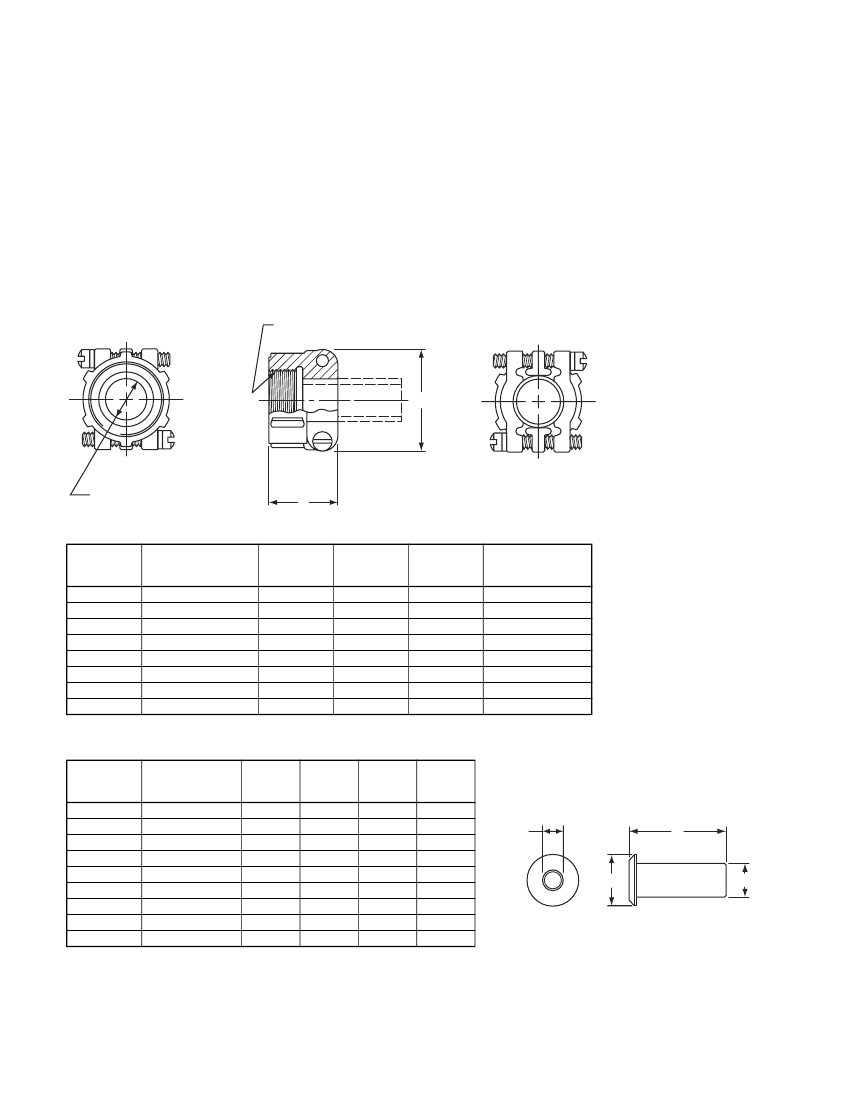

MS3057-A style

cable clamp,

MS3420

sleeve

The MS3057-A style cable clamp was designed for use with jacketed cable or

wires protected by tubing. Both clamping halves float for maximum strain relief.

For unjacketed cable or wires, use corresponding MS3420 sleeve. To order

clamp with sleeve, add -1 to the 97 - number. Two telescoping sleeves are fur-

nished with shells sizes 24 and larger.

V Thread

B

C

A

Shell

Size

Amphenol

Number

A

±.031

B

Max.

C

Dia.

Min.

V

Thread

10SL, 12S

14,14S

16,16S

18

20, 22

24, 28

32

36

97-3057-1004

97-3057-1007

97-3057-1008

97-3057-1010

97-3057-1012

97-3057-1016

97-3057-1020

97-3057-1024

.795

.850

.920

.927

1.015

1.095

1.156

.842

.995

1.120

1.216

1.403

1.683

2.050

2.245

.3125

.4375

.5625

.6250

.7500

.9375

1.2500

1.3750

.6250-24

.7500-20

.8750-20

1.0000-20

1.1875-18

1.4375-18

1.7500-18

2.0000-18

Sleeve

MS

Part No.

Amphenol

Number

A

±.005

B

±.005

C

±.010

D

±.031

3420-3

3420-4

3420-6

3420-8

3420-10

3420-12

3420-16

3420-20

3420-24

9779-513-3

9779-513-4

9779-513-6

9779-513-8

9779-513-10

9779-513-12

9779-513-16

9779-513-20

9779-513-24

.130

.220

.312

.437

.562

.625

.750

.937

1.250

.210

.302

.427

.552

.615

.740

.927

1.240

1.365

.374

.500

.614

.739

.889

1.084

1.309

1.592

1.842

2.875

2.750

2.625

2.500

2.375

2.250

2.125

2.000

1.875

A

D

C

B

55
