8921-60031 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8921-60031

8921-60031: DescriptionRF Connectors / Coaxial Connectors BMZ Female PCB Thru Hole Conn; CategoryThe connector; File Size61KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8921-60031 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8921-60031	-	-	View	Buy Now

8921-60031 Overview

RF Connectors / Coaxial Connectors BMZ Female PCB Thru Hole Conn

8921-60031 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Connectors / Coaxial Connectors
Product	PCB Connectors
RF Series	BMZ
Gender	Jack (Female)
Impedance	50 Ohms
Maximum Frequency	18 GHz
Termination Style	PCB - Through Hole
Orientation	Straight
Mounting Type	PCB
Packaging	Bag
Body Material	Beryllium Copper
Factory Pack Quantity	1

Preview

Download Datasheet

View All

ROHS COMPLIANT

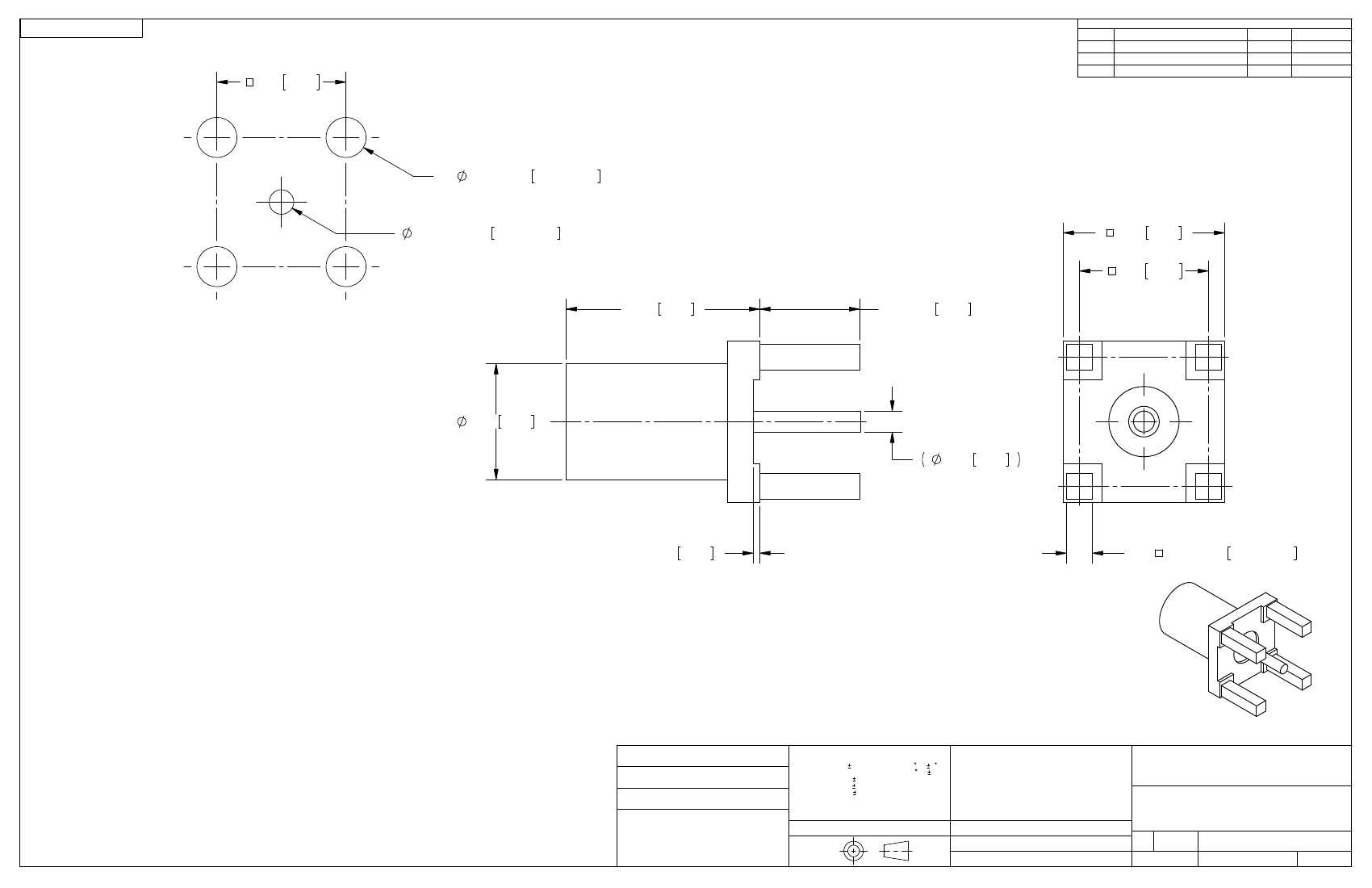

PRODUCT DATA DRAWING

.200 5.08

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 42247

05/16

DAL

.062±.001 1.57±0.03

.0380±.0015 0.97±0.04

.250 6.35

.200 5.08

.300 7.62

5X .155 3.94

RECOMMENDED MOUNTING HOLE PATTERN

.180 4.57

.035 0.88

MATERIAL:

BODY:

CONTACT:

INSULATOR:

FINISH:

BODY &

CONTACT:

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27, OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

MATERIAL:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

4X .010 0.25

.040±.002 1.02±0.05

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

INSERTION LOSS:

DWV:

50 OHMS

DC TO 18.0 GHz

1.30:1 DC TO 18.0 GHz

.03 X SQRT(F(F IN GHz))

1000 VRMS

SEE NOTES

N/A

PROPRIETARY

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

FINISH:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

BMZ FEMALE

PCB MOUNT

SIZE CAGE CODE DWG. NO.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

GPF 05/16/16

DAL 05/16/16

95077

SCALE: 8:1

8921-60031

SHEET 1 OF 1
