SM/SC
-M Stamped contacts
Size 16 stamped and
formed contacts for
TRIM TRIO connectors
Description

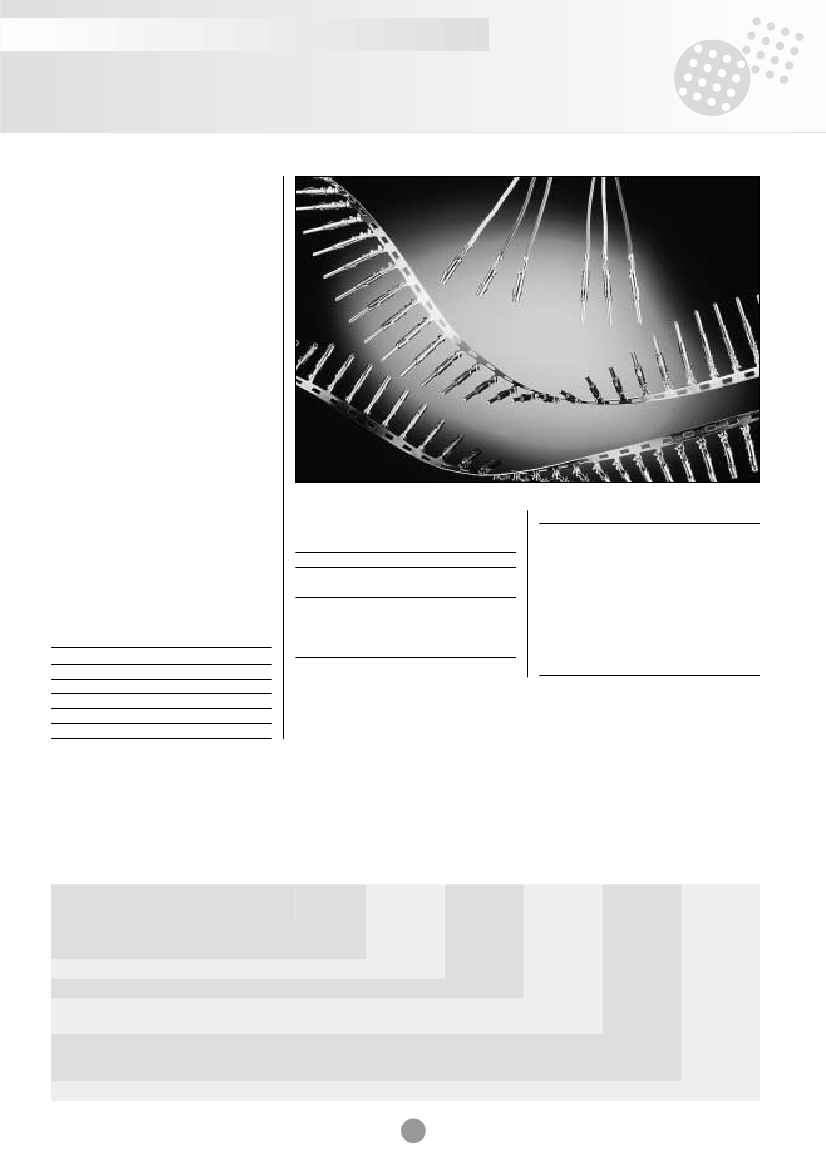

Size 16 SM/SC .063” (1.6mm) diameter
contacts are two piece strip formed crimp
snap-in pin and sockets.
These contacts consist of a crimp body
made of high conductive copper alloy, and
a stainless steel retaining spring featuring
retention in the housing cavity and a closed
entry socket to prevent probe damage.
The contact with its open barrel is standard
available on srtip and packaged with 3000
pcs on reel. This reel packaging combined
with semi or even full automatic crimp
tooling provides the added advantage of a
lower installed cost.
Features and benefits
• Made from high conductive copper alloy
with gold or tin over nickel plate finish.
• Two piece construcion with dual purpose
spring which serves for contact retention
and protects the body against damage.
• Contacts available on reel (standard) and
in bulk packing (100 pcs).
• Suitable for high volumes and lower
installation cost.
Construction
Contact body: High conductive copper
alloy.
Outer spring: Stainless steel
Connector accommodation
Any TRIM TRIO contact can be used in any
contact position in any connector in the
TRIM TRIO interconnection system.
• MS-M / MSG Rectangular connectors
• SMS Qikmate
• G - Bantamate
• UT-Bantam
• UTG Metalok bantam
• UTP Full plastic bantam
• UTGS Shielded bantam
• MBG Bantamate II
Plating table
S6 = 0.75m Gold min. in contact area,
flash on crimp barrel over Nickel.
D70 = Gold flash all over, over Nickel.
TK6 = Preplated Tin all over.
Performance characteristics
Current rating:
Contact resistance:
13 Amp
6 mΩ
Contact retention in body: 65 N min.
Individual insertion force:
3.5 N max.
Individual withdrawal force: 0.55 N min.
How to order
SM
SC
Contact type:
AWG Size:
SM:
Male contact
SC :
Female contact
14, 16, 20, 24
16
16
M
M
(L)
(L)
1
1
S6
S6
Type of crimp barrel:
American open crimp barrel
Packing:
Design variation
No digit:
Contacts on strip (qty 3000 per reel)
L:
Preformed loose piece contacts
1 :
Only wire crimp for size 14 and 16
:
Wire + insulation crimp for sizes 20 and 24
11 :
Wire + insulation crimp for size 16
See plating table
Plating indication:
84
