HLMP-CWxx
T-1
3
/
4
Precision Optical Performance
White LED Lamps
Data Sheet
HLMP-CW15, HLMP-CW16, HLMP-CW23, HLMP-CW24,
HLMP-CW30, HLMP-CW31, HLMP-CW70, HLMP-CW72
Description

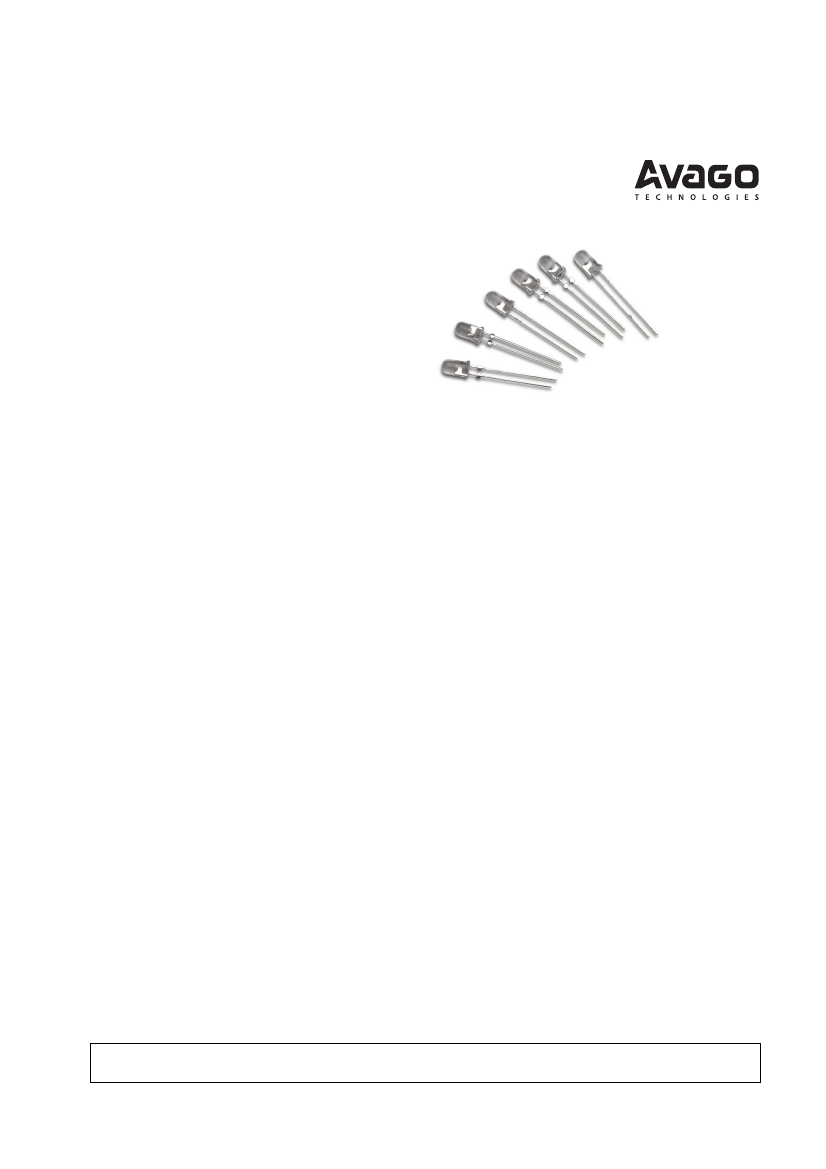

These high intensity white LED lamps are based on
InGaN material technology. A blue LED die is coated by
a phosphor to produce white. The typical resulting color
is described by the coordinates x = 0.32, y = 0.32 using
the 1931 CIE Chromaticity Diagram.
These
lamps are untinted, nondiffused, and
incorporate precise optics producing well defined spatial
radiation patterns at specific viewing cone angle.
T-1
3⁄
4
Features
• Highly luminous white emission
• 15°, 23°, 30°, and 70° viewing angle
Applications
•
•
•
•
Electronic signs and signals
Small area illumination
Legend backlighting
General purpose indicators
Benefit
• Reduced power consumption, higher reliability, and
increased optical/mechanical design flexibility
compared to incandescent bulbs and other alternative
white light sources
CAUTION:
These devices are Class 1C ESD sensitive. Please observe appropriate precautions during handling
and processing. Refer to Avago Technologies Application Note AN-1142 for additional details.
Package Dimensions
5.00 ± 0.20
(0.197 ± 0.008)
5.00 ± 0.20
(0.197 ± 0.008)
8.71 ± 0.20
(0.343 ± 0.008)
d
8.71 ± 0.20
(0.343 ± 0.008)
1.14 ± 0.20
(0.045 ± 0.008)
1.14 ± 0.20
(0.045 ± 0.008)
2.35 (0.093)
MAX.
0.70 (0.028)
MAX.
31.60 MIN.
(1.244)
31.60
MIN.
(1.244)
1.50 ± 0.15
(0.059 ± 0.006)
0.70 (0.028)
MAX.
CATHODE
LEAD
CATHODE
LEAD
1.00 MIN.
(0.039)
0.50 ± 0.10 SQ. TYP.
(0.020 ± 0.004)
1.00 MIN.
(0.039)
0.50 ± 0.10 SQ. TYP.
(0.020 ± 0.004)
5.80 ± 0.20
(0.228 ± 0.008)
CATHODE
FLAT
2.54 ± 0.38
(0.100 ± 0.015)
5.80 ± 0.20
(0.228 ± 0.008)
CATHODE
FLAT
2.54 ± 0.38
(0.100 ± 0.015)
PACKAGE DIMENSION A
PACKAGE DIMENSION B
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. EPOXY MENISCUS MAY EXTEND ABOUT 1 mm (0.040") DOWN THE LEADS.
HLMP-CW24
HLMP-CW72
HLMP-CW16
HLMP-CW31
d = 12.6 ± 0.25 d = 12.52 ± 0.25 d = 11.96 ± 0.25 d = 12.52 ± 0.25
(0.496 ± 0.010) (0.493 ± 0.010) (0.471 ± 0.010) (0.493 ± 0.010)
3
Part Numbering System
HLMP – CWxx - x x x xx
Mechanical Option
00: Bulk
DD: Ammo Pack
Color Bin Option
0: Full color bin distribution
B: Color bins 2 & 3
G: Color bins 2, 3 & 4
K: Color bins 2 & 4
Maximum Intensity Bin Limit
0: No maximum intensity bin limit
Others: Refer to Device Selection Guide
Minimum Intensity Bin Limit
Refer to Device Selection Guide
Viewing Angle and Standoff Option
15: 15°without standoffs
16: 15°with standoffs
23: 23°without standoffs
24: 23°with standoffs
30: 30°without standoffs
31: 30°with standoffs
70: 50° without standoffs
72: 50° with standoffs
4
Absolute Maximum Ratings
T
A
= 25˚C
Parameter
DC Forward Current
[1]
Peak Forward Current
[2]
Power Dissipation
Reverse Voltage (I
R
= 10
µA)
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Notes:
1. Derate linearly as shown in Figure 5.
2. Duty factor 10%, 1 kHz.
Value
30
100
111
5
110
–40 to +80
–40 to +100
Units
mA
mA
mW
V
o
C
o
C
o
C
Electrical Characteristics
T
A
= 25°C
Forward Voltage,
V
F
(V) @ I
F
= 20 mA
Typ.
Max.
3.2
3.7
Reverse Breakdown,
V
R
(V) @ I
R
= 10
µ
A
Min.
5
Capacitance, C (pF),
V
F
= 0, f = 1 MHz
Typ.
70
Thermal Resistance
Rθ
J-PIN
(
°
C/W)
θ
Typ.
240
Optical Characteristics
T
A
= 25°C
Typical Chromaticity
Coordinates
[1]
X
Y
0.32
0.32
0.32
0.32
0.32
0.32
0.32
0.32
Viewing Angle
2θ
1/2
Degrees
[2]
θ
Typ.
30
23
15
50
Part Number
HLMP-CW3x-xxxxx
HLMP-CW2x-xxxxx
HLMP-CW1x-xxxxx
HLMP-CW7x-xxxxx
Notes:
1. The chromaticity coordinates are derived from the CIE 1931 Chromaticity Diagram and represent the perceived color of the device.
2.
θ
1/2
is the off-axis angle where the luminous intensity is
1
⁄
2
the peak intensity.
5
