M85049/56-18N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/56-18N

M85049/56-18N: DescriptionCircular MIL Spec Strain Reliefs & Adapters QWIKTY RLF STR SH SZ 18 NI; CategoryThe connector Connector bracket; File Size235KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/56-18N Overview

Circular MIL Spec Strain Reliefs & Adapters QWIKTY RLF STR SH SZ 18 NI

M85049/56-18N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/56
Base Number Matches	1

Preview

Download Datasheet

View All

Optional Self-Locking • Optional Ground Lug

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

Configuration

= Non-Detented

= Self-Locking with Ground Lug

= Non-Detented with Ground Lug

= Self-Locking without Ground Lug

––

= Non Self-Locking

= Anodize, Black

= Electroless Nickel

= 1,000 Hour Cadmium Olive Drab

over Electroless Nickel

= Nickel Fluorocarbon Polymer

= Pure Dense Electrodeposited Aluminum

= Zinc-Nickel, Black

Finish

Basic Part Number

M85049/56

= Straight

M85049/57

= 45°

M85049/57

Shell

Size

OPTIONAL

SELF-LOCKING

COUPLING

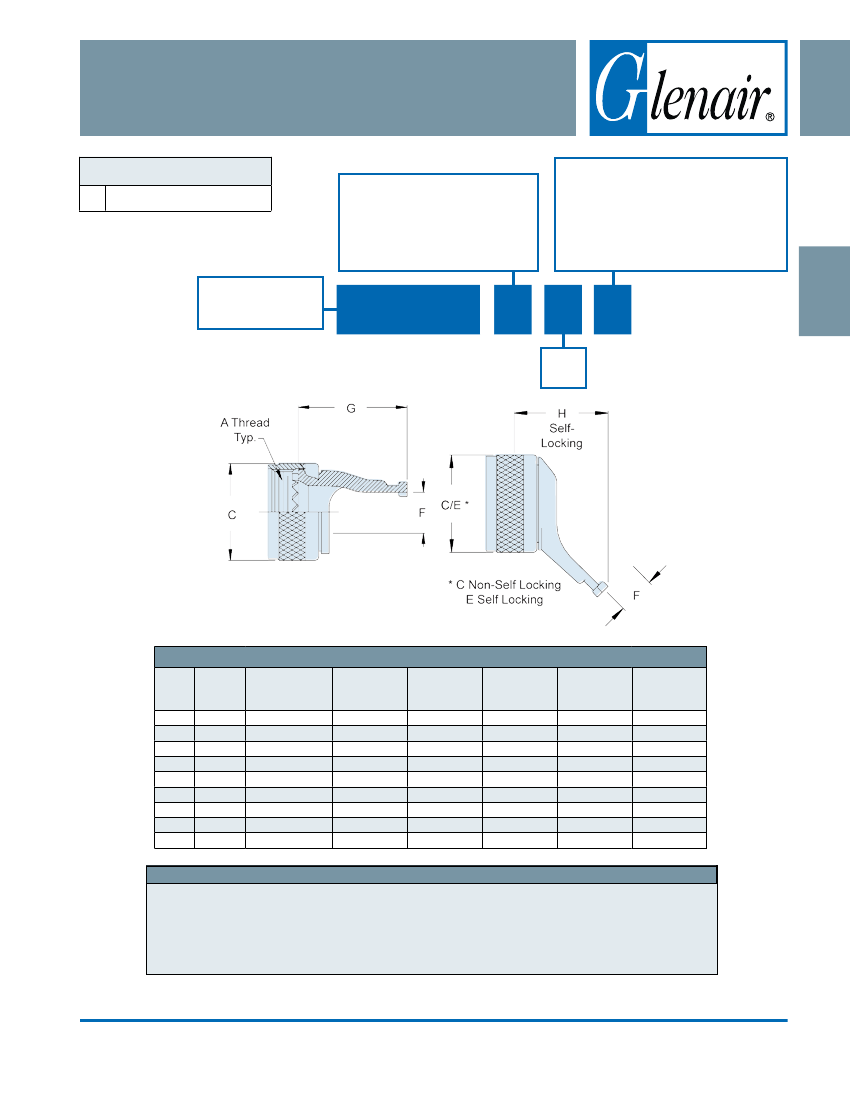

TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions

Shell

Series I

Size

Shell Size

Series II

Ref.

A Thread

Class 2B

.438-28 UNEF

.562-24 UNEF

.688-24 UNEF

.813-20 UNEF

.938-20 UNEF

1.063-18 UNEF

1.188-18 UNEF

1.313-18 UNEF

1.438-18 UNEF

C Dia

Max

.750

.850

1.000

1.100

1.250

1.400

1.500

1.650

1.750

(19.1)

(21.6)

(25.4)

(27.9)

(31.8)

(35.6)

(38.1)

(41.9)

(44.5)

E Dia

Max

.860

.980

1.160

1.280

1.410

1.520

1.640

1.770

1.890

Cable Entry

Max

.895

.955

1.135

1.195

1.325

1.445

1.585

(22.7)

(24.3)

(28.8)

(30.4)

(33.7)

(36.7)

(40.3)

Max

1.210

1.390

(30.7)

(35.3)

(21.8) .264 (6.7)

(24.9) .392 (10.0)

(29.5) .506 (12.9)

(32.5) .631 (16.0)

(35.8) .756 (19.2)

(38.6) .845 (21.5)

(41.7) .970 (24.6)

(45.0) 1.095 (27.8)

(48.0) 1.220 (31.0)

APPLICATION NOTES

Assembly identified with manufacturer’s name and part number, space permitting.

For complete dimensions, see the applicable Military Specification.

Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not

intended for inspection criteria.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-79

E-Mail: sales@glenair.com

AS85049

AS85049/56 and AS85049/57

Straight and 45° Qwik-Ty Strain Reliefs
