3117-3-00-21-00-00-08-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 3117-3-00-21-00-00-08-0

3117-3-00-21-00-00-08-0: DescriptionIC & Component Sockets 20u AU OVER NI; CategoryThe connector terminals; File Size685KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

3117-3-00-21-00-00-08-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3117-3-00-21-00-00-08-0	-	-	View	Buy Now

3117-3-00-21-00-00-08-0 Overview

IC & Component Sockets 20u AU OVER NI

3117-3-00-21-00-00-08-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3117-3-00-21-00-00-08-0
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

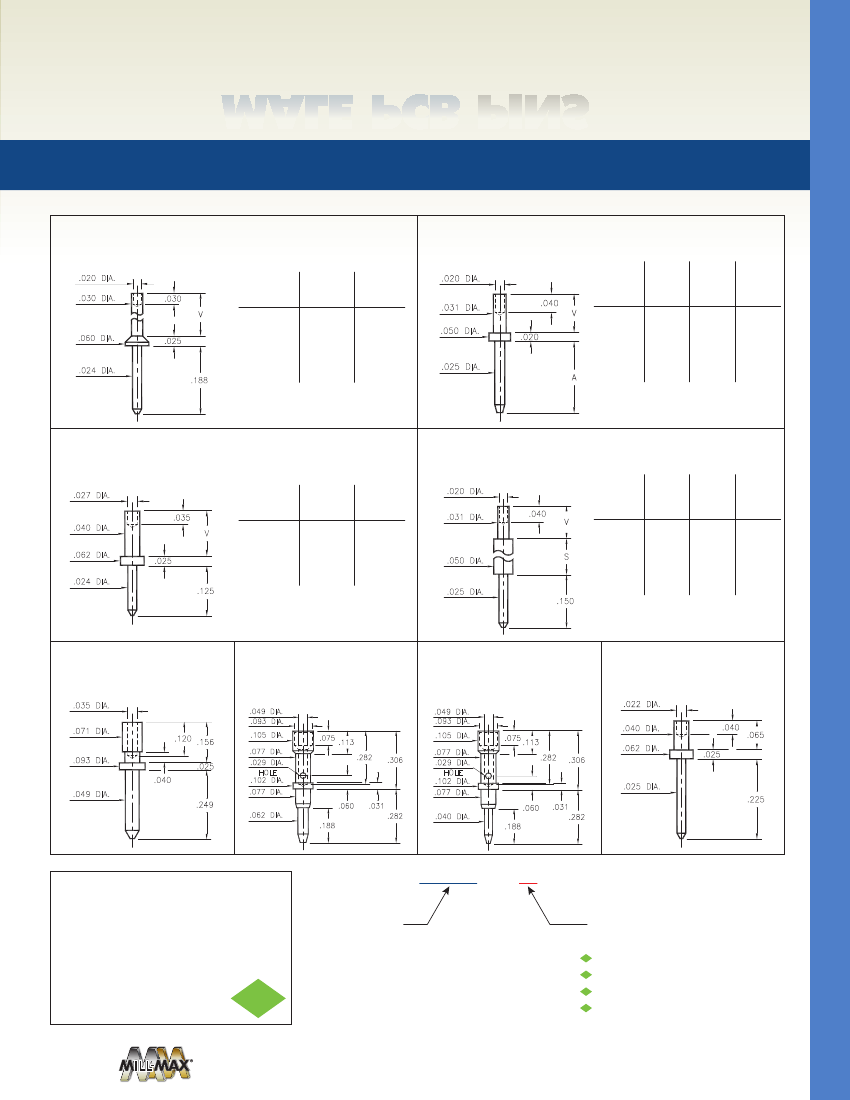

MALE PCB

PINS

PRINTED CIRCUIT PINS

3117

3117-X-00-XX-00-00-08-0

Swage mount in .035 hole

.020 DIA.

.030 DIA.

.030

.060 DIA.

.025

3114/3115

Basic Part

Number

Board

Thickness

Length

.020 DIA.

.031 DIA.

.050 DIA.

311X-X-00-XX-00-00-08-0

Swage mount in .035 mounting hole

.040

Basic

Part

Number

Board

Thick-

ness

Length

.024 DIA.

.188

3117-1

3117-2

3117-3

3117-4

.031

.062

.094

.125

.047

.078

.110

.141

.020

.025 DIA.

3114-1

3114-2

3115-1

3115-2

.031

.062

.031

.062

.150

.300

.051

.082

.051

.082

3112

3112-X-00-XX-00-00-08-0

Swage mount in .043 hole

.027 DIA.

.035

.040 DIA.

.062 DIA.

.024 DIA.

3118/3119

Swage mount in .035 hole

311X-X-00-XX-00-00-08-0

Basic Part

Number

Board

Thickness

Length

.020 DIA.

.031 DIA.

.040

Basic

Part

Number

Board

Thick-

ness

Length

.025

3112-1

3112-2

3112-3

.125

.031

.062

.094

.051

.082

.113

.050 DIA.

.025 DIA.

3118-1

3118-2

3119-1

3119-2

.031

.062

.031

.062

.170

.420

.051

.082

.051

.082

.150

3139

3139-0-00-XX-00-00-08-0

.035 DIA.

.071 DIA.

3602

3602-0-07-XX-00-00-08-0

.049 DIA.

.093 DIA.

.105 DIA.

.077 DIA.

Wire crimp termination. Accepts wire

sizes 24 AWG Max. / 28 AWG Min.

Annealed

Wire crimp termination. Accepts wire

sizes 20 AWG Max. / 24 AWG Min.

3603

3603-0-07-XX-00-00-08-0

.049 DIA.

.093 DIA.

.105 DIA.

3131

Annealed

Wire crimp termination. Accepts wire

sizes 20 AWG Max. / 24 AWG Min.

3131-1-00-XX-00-00-08-0

Swage mount in .043 hole

.022 DIA.

.040 DIA.

.040

.025

.120 .156

.025

.040

.075

.113

.282

.306

.075

.113

.282

.306

.065

.093 DIA.

.029 DIA.

HOLE

.102 DIA.

.077 DIA.

.060

.062 DIA.

.188

.077 DIA.

.029 DIA.

HOLE

.102 DIA.

.077 DIA.

.060

.188

.062 DIA.

.049 DIA.

.249

.025 DIA.

.031

.282

.031

.282

.225

.040 DIA.

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except swage pins which are annealed )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - 0X -

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 217 | MALE PCB PINS
