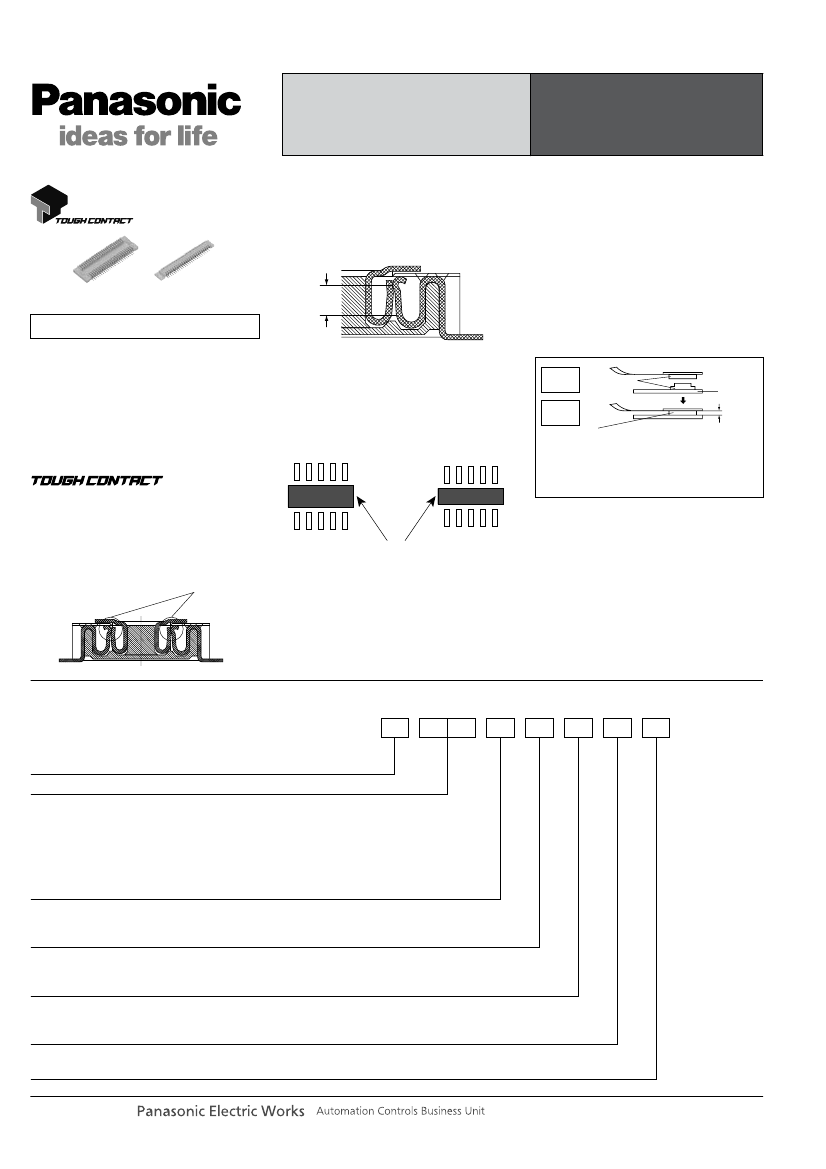

7: Ni plating on base, Au plating on surface/Ni plating on base, Au plating on surface (for Ni barrier available)
Contact portion
<Socket> Y: V notch type product (chamfered on both ends)
<Header> Y: V notch type product
Packing
G: 2,000 pieces embossed tape and plastic reel
×
2
7
Y
G
panasonic-electric-works.net/ac
AXK(5/6)F
Part No.
Mated height
No. of contacts
10
12
14
16
18
20
22
1.5 mm
24
26
30
32
34
40
50
60
70
80
10
12
14
16
18
20
22
2.0 mm
24
26
30
34
40
50
60
70
80
100
10
12
14
16
20
22
24
30
34
36
40
44
50
60
70
80
100
Socket
AXK5F10347YG
AXK5F12347YG
AXK5F14347YG
AXK5F16347YG
AXK5F18347YG
AXK5F20347YG
AXK5F22347YG
AXK5F24347YG
AXK5F26347YG
AXK5F30347YG
AXK5F32347YG
AXK5F34347YG
AXK5F40347YG
AXK5F50347YG
AXK5F60347YG
AXK5F70347YG
AXK5F80347YG
AXK5F10547YG
AXK5F12547YG
AXK5F14547YG
AXK5F16547YG
AXK5F18547YG
AXK5F20547YG
AXK5F22547YG
AXK5F24547YG
AXK5F26547YG
AXK5F30547YG
AXK5F34547YG
AXK5F40547YG
AXK5F50547YG
AXK5F60547YG
AXK5F70547YG
AXK5F80547YG
AXK5F00547YG
AXK5F10547YG
AXK5F12547YG
AXK5F14547YG
AXK5F16547YG
AXK5F20547YG
AXK5F22547YG
AXK5F24547YG
AXK5F30547YG
AXK5F34547YG
AXK5F36547YG
AXK5F40547YG
AXK5F44547YG
AXK5F50547YG
AXK5F60547YG
AXK5F70547YG
AXK5F80547YG
AXK5F00547YG
Header
AXK6F10347YG
AXK6F12347YG
AXK6F14347YG
AXK6F16347YG
AXK6F18347YG
AXK6F20347YG
AXK6F22347YG
AXK6F24347YG
AXK6F26347YG
AXK6F30347YG
AXK6F32347YG
AXK6F34347YG
AXK6F40347YG
AXK6F50347YG
AXK6F60347YG
AXK6F70347YG
AXK6F80347YG
AXK6F10347YG
AXK6F12347YG
AXK6F14347YG
AXK6F16347YG
AXK6F18347YG
AXK6F20347YG
AXK6F22347YG
AXK6F24347YG
AXK6F26347YG
AXK6F30347YG
AXK6F34347YG
AXK6F40347YG
AXK6F50347YG
AXK6F60347YG
AXK6F70347YG
AXK6F80347YG
AXK6F00347YG
AXK6F10547YG
AXK6F12547YG
AXK6F14547YG
AXK6F16547YG
AXK6F20547YG
AXK6F22547YG
AXK6F24547YG
AXK6F30547YG
AXK6F34547YG
AXK6F36547YG
AXK6F40547YG
AXK6F44547YG
AXK6F50547YG
AXK6F60547YG
AXK6F70547YG
AXK6F80547YG
AXK6F00547YG
2,000 pieces
4,000 pieces
Packing
Inner carton (1-reel)
Outer carton
2.5 mm
Notes: 1. Regarding ordering units, During production: Please make orders in 1-reel units.
Samples for mounting confirmation: Available in units of 50 pieces. Please consult us. (See “Regarding sample orders to confirm proper mounting” on page 19.)
Samples: Small lot orders are possible. Please consult us.
2. The standard type comes without positioning bosses. Connectors with positioning bosses are available for on-demand production. For this type of connector, 9th
digit of the part no. changes from 4 to 3. e.g.
Mated height 1.5mm, 10 contacts for sockets: AXK5F10337YG
3. The 11th digit “Y” in the socket/header part number indicates the connector has a V notch. (For details, please consult one of our sales offices.)
4. Previous non-
types and current
types are compatible for mating.
panasonic-electric-works.net/ac
Narrow-pitch connectors
PRODUCT TYPES
AXK(5/6)F
Narrow-pitch connectors
SPECIFICATIONS
1. Characteristics
Item
Rated current
Electrical
characteristics Insulation resistance
Contact resistance
Composite insertion force
Composite removal force
Contact holding force
Ambient temperature
Soldering heat resistance
Rated voltage
Breakdown voltage
Specifications
0.5A/contact (Max. 10 A at total contacts)
60V AC/DC
150V AC for 1 minute
Min. 1,000MΩ (initial)
Max. 90mΩ
Max. 0.981N/contacts
×
contacts (initial)
Min. 0.0588N/contacts
×
contacts
Min. 0.981N/contact
–55°C to +85°C
Max. peak temperature of 260°C (on the surface
of the PC board around the connector terminals)
300°C within 5 seconds, 350°C within 3 seconds
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
Measuring the maximum force.
As the contact is axially pull out.
No freezing at low temperatures
Infrared reflow soldering
Soldering iron
Sequence
0
1. –55
–3
°C,
30 minutes
2. ~ , Max. 5 minutes
3. 85
+3
°C,
30 minutes
0
4. ~ , Max. 5 minutes
Bath temperature 40±2°C, humidity 90 to 95% R.H.
Bath temperature 35±2°C, saltwarter concentration 5±1%
Bath temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal speed of max. 200 times/hours
Detection current: 1mA
Using 500V DC megger
Based on the contact resistance measurement method specified by
JIS C 5402.
Conditions
Mechanical
characteristics
Thermal shock resistance
Environmental (header and socket mated)
characteristics
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
Insertion and removal life
characteristics
Unit weight
120 hours, insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
24 hours, insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
48 hours,
50 times
Mated height 1.5mm, 20 contacts; Socket: 0.06g
Header: 0.04g
contact resistance max. 90mΩ
2. Material and surface treatment
Part name
Molded portion
Contact/Post
Material
LCP resin (UL94V-0)
Copper alloy
Surface treatment
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Au plating on surface (Except for thick of terminal)
The section close to the soldering portion has a nickel barrier.
(The nickel base is exposed.)
panasonic-electric-works.net/ac
AXK(5/6)F
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://panasonic-electric-works.net/ac

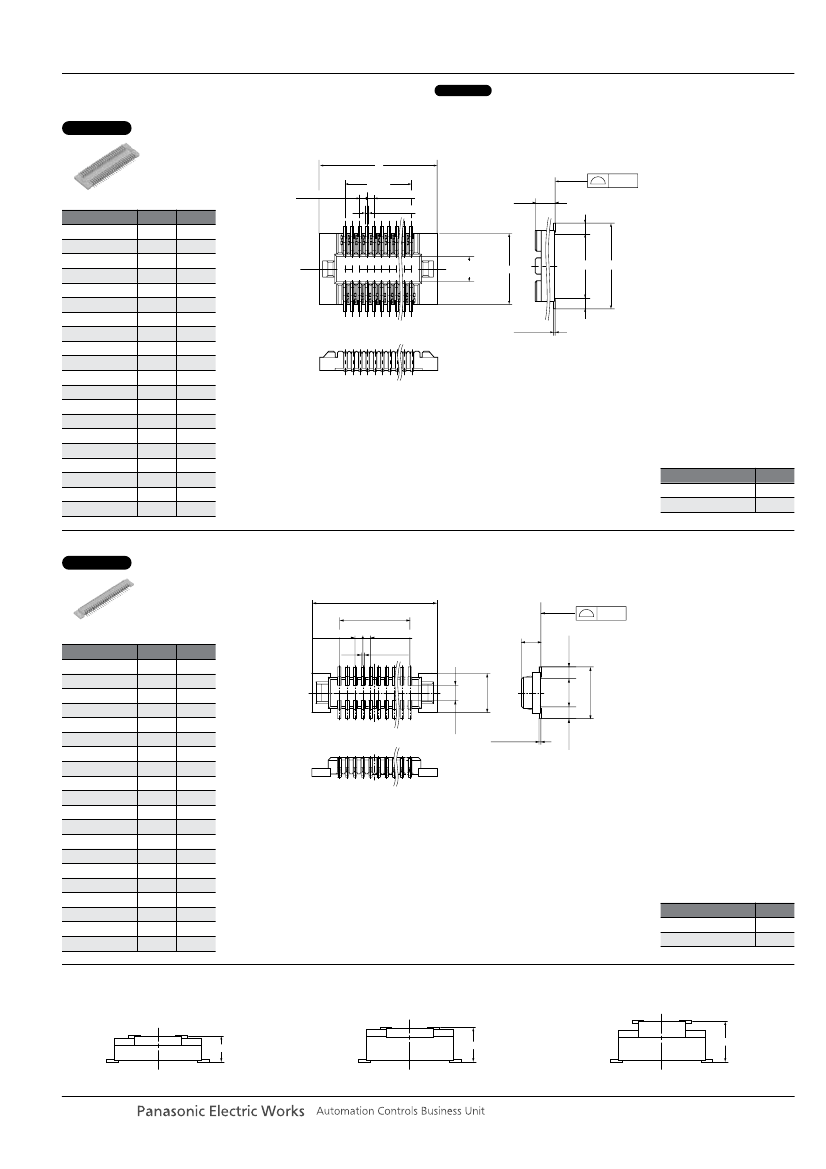

• Socket (Mated height: 1.5mm, 2.0mm, 2.5mm)
CAD Data
A
B±0.1
0.50±0.05
0.20±0.03
0.10
C
(0.80)
Dimension table (mm)
No. of contacts
10
12
14
16
18
20
22
24
26
30
32
34
36
40
44
50
60
70
80
100
A
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.50
11.00
11.50
12.00
13.00
14.00
15.50
18.00
20.50
23.00
28.00
B
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
7.50
8.00
8.50
9.50
10.50
12.00
14.50
17.00
19.50
24.50
0.50±0.05
1.70
(Suction face) 4.80
4.20
5.80
0.12±0.03
(0.80)
General tolerance:
±0.2
Mated height
1.5 mm
2.0 mm, 2.5 mm
C
1.35
1.85
• Header (Mated height: 1.5mm, 2.0mm, 2.5mm)
CAD Data
A
B±0.1
(0.75)
0.10
C
Dimension table (mm)
No. of contacts
10
12
14
16
18
20
22
24
26
30
32
34
36
40
44
50
60
70
80
100
A
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.50
11.00
11.50
12.00
13.00
14.00
15.50
18.00
20.50
23.00
28.00
B
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
7.50
8.00
8.50
9.50
10.50
12.00
14.50
17.00
19.50
24.50
0.50±0.05
0.50±0.05
0.20±0.03
(Suction
face)
2.50
0.96
0.12±0.03
(0.75)
1.80
3.30
General tolerance:
±0.2
Mated height
1.5 mm, 2.0 mm
2.5 mm
C
1.25
1.75
• Socket and header are mated
Mated height: 1.5 mm
Mated height: 2.0 mm
Mated height: 2.5 mm
1.50±0.15
2.00±0.15
2.50±0.15
panasonic-electric-works.net/ac
Narrow-pitch connectors
DIMENSIONS
(Unit: mm)
AXK(5/6)F
Narrow-pitch connectors

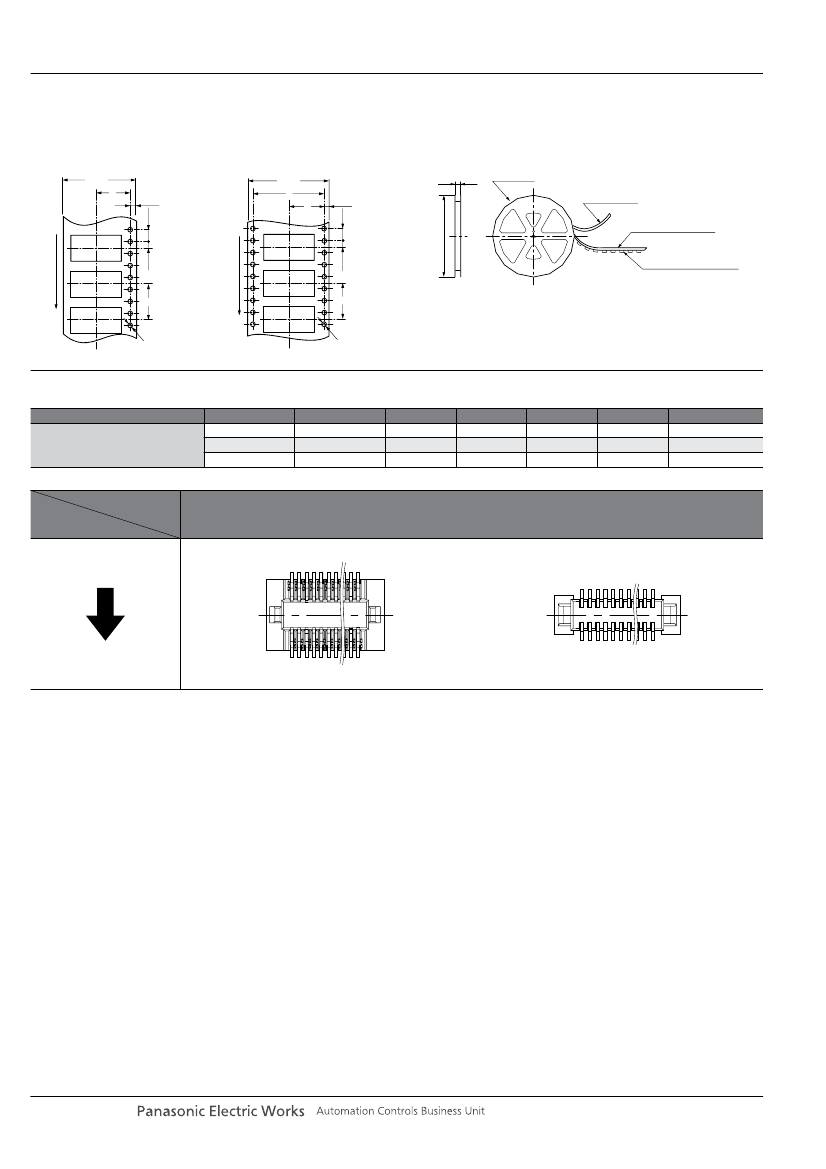

EMBOSSED TAPE DIMENSIONS
(unit: mm, Common for respective contact type, socket and header)
• Tape dimensions (Conforming to JIS C 0806-1990.
However, some tapes have mounting hole pitches that do
not comply with the standard.)
Tape I
A±0.3
C
1.75
• Plastic reel dimensions (Conforming to EIAJ ET–7200B)
