0314-0-15-01-34-14-10-0: DescriptionIC & Component Sockets #34 SLDR MT PIN RCP; CategoryThe connector terminals; File Size717KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0314-0-15-01-34-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0314-0-15-01-34-14-10-0	-	-	View	Buy Now

0314-0-15-01-34-14-10-0 Overview

IC & Component Sockets #34 SLDR MT PIN RCP

0314-0-15-01-34-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0314
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

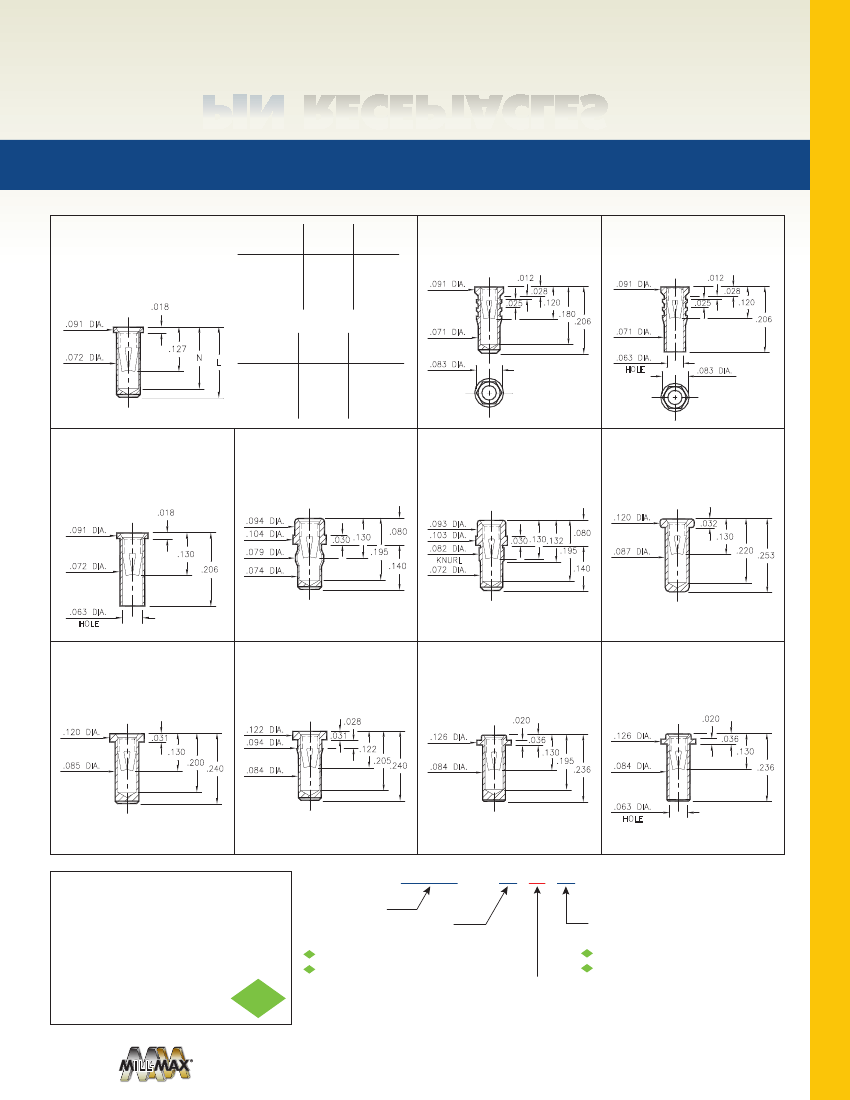

RECEPTACLES

FOR .032” - .046” DIAMETER PINS

0327/0351/0373

03XX-0-15-XX-34-XX-10-0

Solder mount in .075 min. mounting hole

Also available on 12mm or 24mm wide

carrier tape: See chart for details

See page 194.11 for Tape & Reel details

.018

.091 DIA.

.127

Basic Part

Number

Length

Depth

0328

.091 DIA.

0328-0-15-XX-34-XX-10-0

Hex press-fit in .079 plated through-hole

.012

.025

.028

.120

.180

.206

.071 DIA.

0334

.091 DIA.

0334-0-15-XX-34-XX-10-0

Hex press-fit in .079 plated through-hole

.012

.028

.025

.120

.206

.071 DIA.

.063 DIA.

HOLE

.083 DIA.

0327-0

0351-0

0373-0

Basic Part

Number

.206

.226

.270

Tape

Width

.180

.200

.241

Parts per

13” Reel

T&R Packaging

.072 DIA.

0327-0

0351-0

0373-0

12mm

24mm

1,400

1,100

1,000

.083 DIA.

0312

0312-0-15-XX-34-XX-10-0

0333

Solder mount in .075 min. mounting hole

Also available on 12mm wide carrier tape:

1,400 parts per 13” reel

See page 194.11 for Tape & Reel details

.018

.091 DIA.

.130

.072 DIA.

.206

0333-0-42-XX-34-XX-10-0

Press-fit in .076 mounting hole

0357

0357-0-15-XX-34-XX-10-0

Press-fit in .078 mounting hole

0317

0317-0-15-XX-34-XX-04-0

Solder mount in .091 min. mounting hole

.094 DIA.

.104 DIA.

.079 DIA.

.074 DIA.

.030 .130

.195

.080

.093 DIA.

.103 DIA.

.082 DIA.

KNURL

.072 DIA.

.120 DIA.

.030 .130.132

.195

.080

.032

.130

.220

.087 DIA.

.253

.140

.063 DIA.

HOLE

0340

0340-0-15-XX-34-XX-10-0

Solder mount in .087 min. mounting hole

0345

0345-0-15-XX-34-XX-10-0

Press-fit in .089 mounting hole

.028

.031

.122

.205

.240

0316

0316-0-15-XX-34-XX-10-0

Solder mount in .087 min. mounting hole

.020

.126 DIA.

.036

.130

.195

.236

0314

0314-0-15-XX-34-XX-10-0

Solder mount in .087 min. mounting hole

.020

.126 DIA.

.036

.130

.084 DIA.

.236

.120 DIA.

.031

.130

.200

.122 DIA.

.094 DIA.

.240

.085 DIA.

.084 DIA.

.063 DIA.

HOLE

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - XX - XX -

- XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#34

CONTACT (DATA ON PAGE 258)

(For alternate contact choices, see group E on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 183 | PIN RECEPTACLES
