M83513/08-C07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M83513/08-C07

M83513/08-C07: DescriptionD-Sub MIL Spec Connectors MICRO DCON PIN 21CNT .5"SNGL STRND WIRE; CategoryThe connector The connector; File Size189KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M83513/08-C07 Overview

D-Sub MIL Spec Connectors MICRO DCON PIN 21CNT .5"SNGL STRND WIRE

M83513/08-C07 Parametric

Parameter Name	Attribute value
Maker	Glenair
package instruction	N
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	STANDARD: MIL-DTL-83513
body width	0.208 inch
subject depth	0.196 inch
body length	1.078 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S21P0
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .096
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
Shell material	PLASTIC
Housing size	C
Termination type	CRIMP
Total number of contacts	21
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	0.139 N

Preview

Download Datasheet

View All

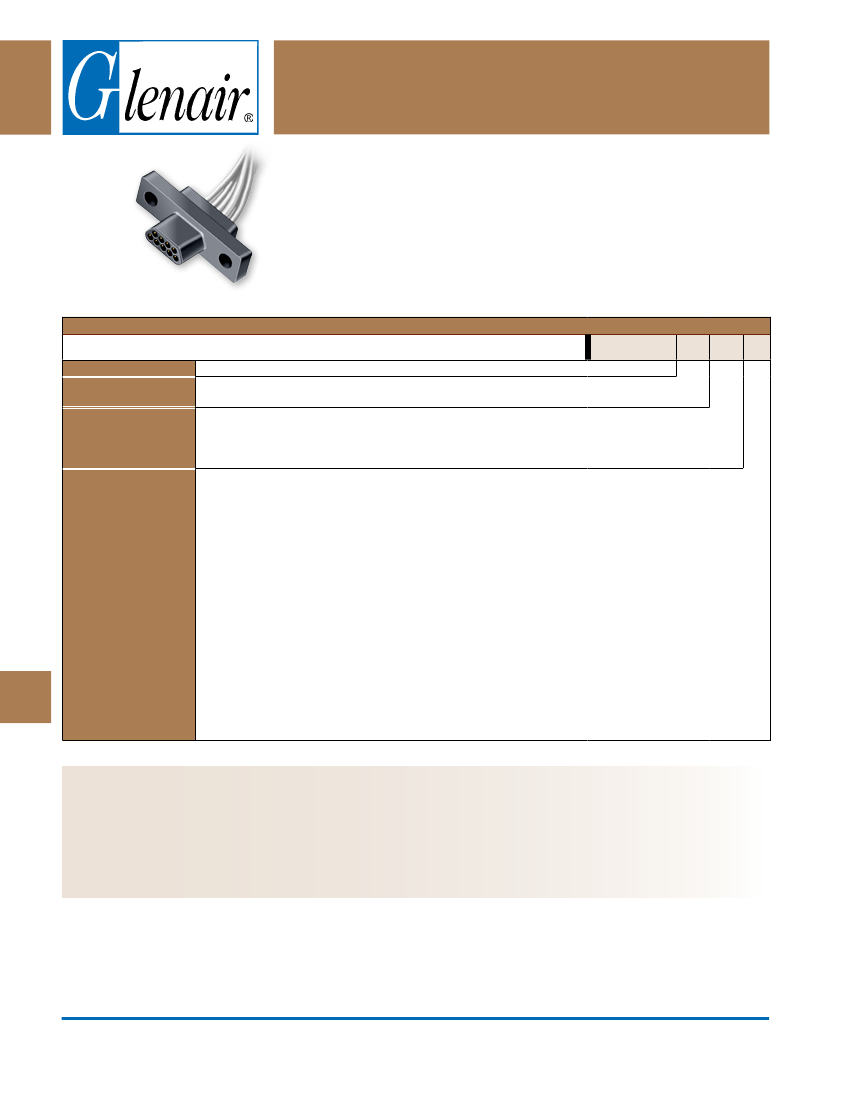

Micro-D

MIL-DTL-83513

MIL-DTL-83513/08 & /09 Micro-D

Pre-Wired Crimp Terminated, Plastic Shell Connector

Micro-D Pre-Wired Pigtails

These connectors feature gold-plated TwistPin contacts and mil spec

crimp termination. 100% tested and backpotted, ready for use.

Choose the Wire Type To Fit Your Application

For lightest weight and smallest diameter, select M22759/33 space

grade insulated wire.

INDEX

Wire Type

How To Order MIL-DTL-83513 Pre-Wired Plastic Shell Micro-D Connectors

Sample Part Number

Base Part Number

Slash Number

m83513/

M83513

/08

Pin Connector (Plug)

/09

Socket Connector (Receptacle)

A, B, C, D, E, F, G

(See Table I)

Codes A - H specify the shell size.

The number of contacts is shown below for reference.

-9

- 15

- 21

- 25

- 31

- 37

M22759/11-26 Teflon®-Insulated Hookup Wire

- 18 Inches (457mm), White

- 36 Inches (914mm), White

- 18 Inches (457mm), 10 Color Repeating

- 36 Inches (914mm), 10 Color Repeating

- 72 Inches (1829mm), White

- 72 Inches (1829mm), 10 Color Repeating

M22759/33-26 Irradiated Tefzel® Insulated Hookup Wire

- 18 Inches (457mm), White

- 36 Inches (914mm), White

- 18 Inches (457mm), 10 Color Repeating

- 36 Inches (914mm), 10 Color Repeating

- 72 Inches (1829mm), White

- 72 Inches (1829mm), 10 Color Repeating

25 AWG Single Strand Uninsulated Wire

- .500 Inch (12.7mm), Gold Plated

- 1.000 Inch (25.4mm), Gold Plated

- .500 Inch (12.7mm), Tin-Lead Plated(2)

- 1.000 Inch (25.4mm), Tin-Lead Plated(2)

-g

Shell Size

- 51

Application Notes

1. Intermatability: M83513 plastic shell connectors are not intermateable with metal shell M83513 connectors.

2. Tin-Plated Wire: Glenair M83513 connectors do not contain any components exceeding 97% tin.

3. M22759/33 Corrosion: The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known to cause corrosion to

metal parts when stored in a sealed environment. This corrosion has been observed on M83513 connectors. Glenair has implemented a packaging

procedure to minimize or eliminate this problem. Connectors are individually wrapped with teflon tape, and the unit pack is a perforated paper

envelope. M22759/33 continues to be the preferred wire for space applications.

High Performance Micro-D Connectors and Cables

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

L-8

E-Mail: sales@glenair.com
