830-90-033-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 830-90-033-10-001000

830-90-033-10-001000: DescriptionHeaders & Wire Housings STANDARD PIN HEADER; CategoryThe connector The connector; File Size521KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

830-90-033-10-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	830-90-033-10-001000	-	-	View	Buy Now

830-90-033-10-001000 Overview

Headers & Wire Housings STANDARD PIN HEADER

830-90-033-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	830
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	33
Base Number Matches	1

Preview

Download Datasheet

View All

SPRING-LOADED

CONNECTORS

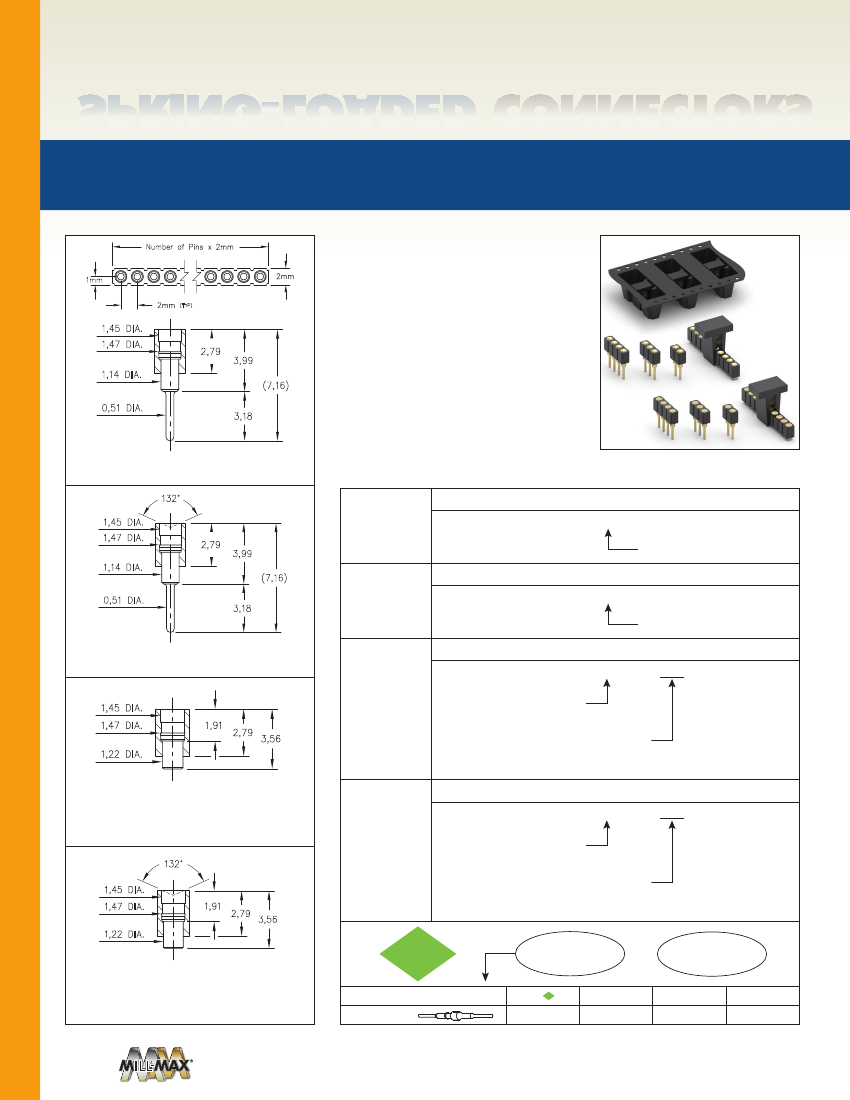

SERIES 830 • 2mm GRID FLAT & CONCAVE FACE TARGET CONNECTORS

FOR SPRING

LOADED ASSEMBLIES • SINGLE ROW STRIPS

• Series 830 2mm Spring Target Connectors,

supplied in single row strips

• Target connectors provide an excellent gold-

plated conductive path back to the board-

mounted spring pin connector. Available in

both through-hole and SMT terminations

with the choice of either flat or concave face

contact surfaces. Concave face targets provide

additional surface area for mating with our

standard 0,81 diameter plungers

• Target connectors use MM #1949, #1950, #1951,

and #1952 pins. See page 223.1 for details

• Insulators are high temperature thermoplastic

1,45 DIA.

1,47 DIA.

1,14 DIA.

0,51 DIA.

2,79

3,99

(7,16)

3,18

FIG. 1

132°

1,45 DIA.

1,47 DIA.

1,14 DIA.

0,51 DIA.

2,79

3,99

(7,16)

3,18

ORDERING INFORMATION

Series 830...003

Flat face / Solder Tails

830-10-0_ _-10-003000

Specify number of pins

01-20

FIG. 1

Series 830...004

Concave face / Solder Tails

830-10-0_ _-10-004000

01-20

FIG. 2

Specify number of pins

FIG. 2

1,45 DIA.

1,47 DIA.

1,22 DIA.

1,91

2,79

3,56

Series 830...30-003

Specify number or pins

02-10

Flat face / Surface Mount

830-10-0_ _-30-003XXX

FIG. 3

PAGE 22.1 | SPRING-LOADED CONNECTORS

Tube packaged =

000

Tape & reel packaged =

191

400 parts per 330mm reel

Coplanarity 0,13. For Pin counts >10 positions, consult

Technical Support.

Series 830...30-004

Specify number or pins

02-10

Concave face / Surface Mount

FIG. 3

132°

1,45 DIA.

1,47 DIA.

1,22 DIA.

1,91

2,79

3,56

830-10-0_ _-30-004XXX

FIG. 4

Tube packaged =

000

Tape & reel packaged =

191

400 parts per 330mm reel

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

0,25μm Au

Coplanarity 0,13. For Pin counts >10 positions, consult

Technical Support.

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
