2SK808A datasheet, PDF - EEWORLD Datasheet

2SK808A: DescriptionSilicon N-channel Power F-MOS FET; CategoryDiscrete semiconductor The transistor; File Size210KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

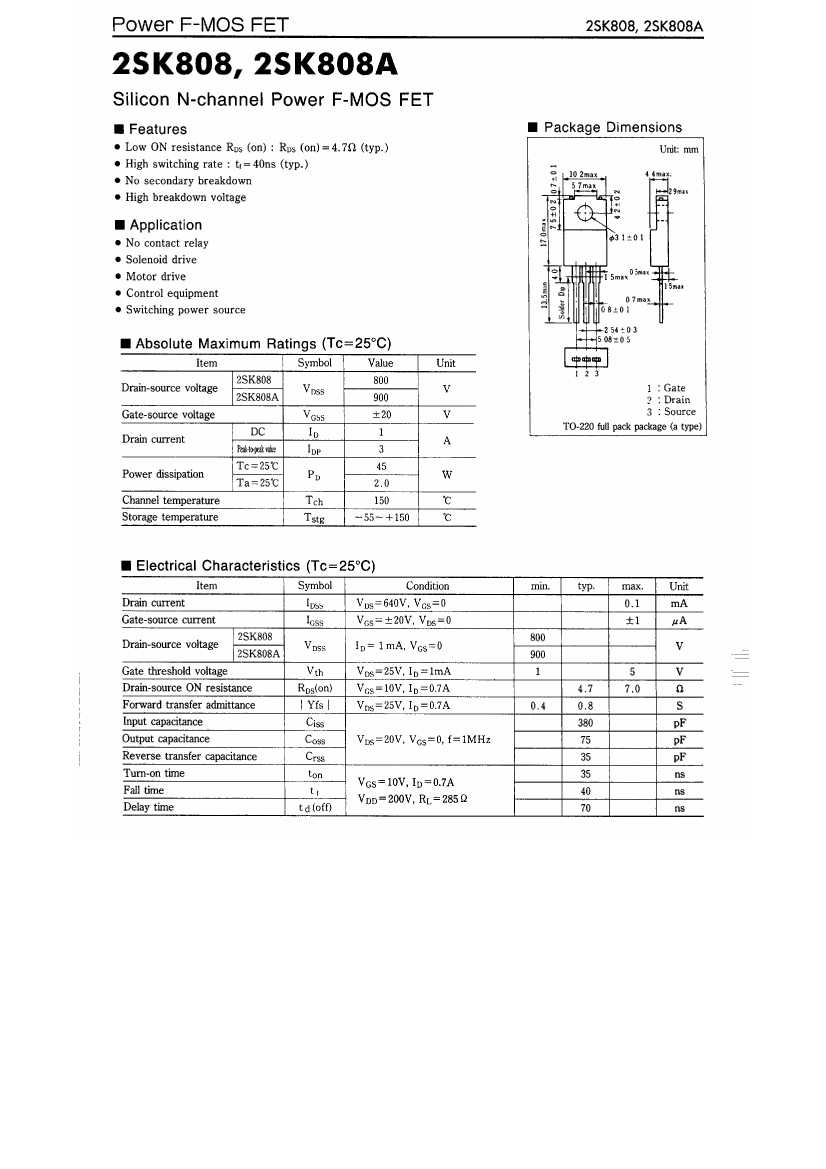

2SK808A Overview

Silicon N-channel Power F-MOS FET

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Minimum drain-source breakdown voltage	900 V
Maximum drain current (Abs) (ID)	1 A
Maximum drain current (ID)	1 A
Maximum drain-source on-resistance	7 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	2 W
Maximum pulsed drain current (IDM)	3 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

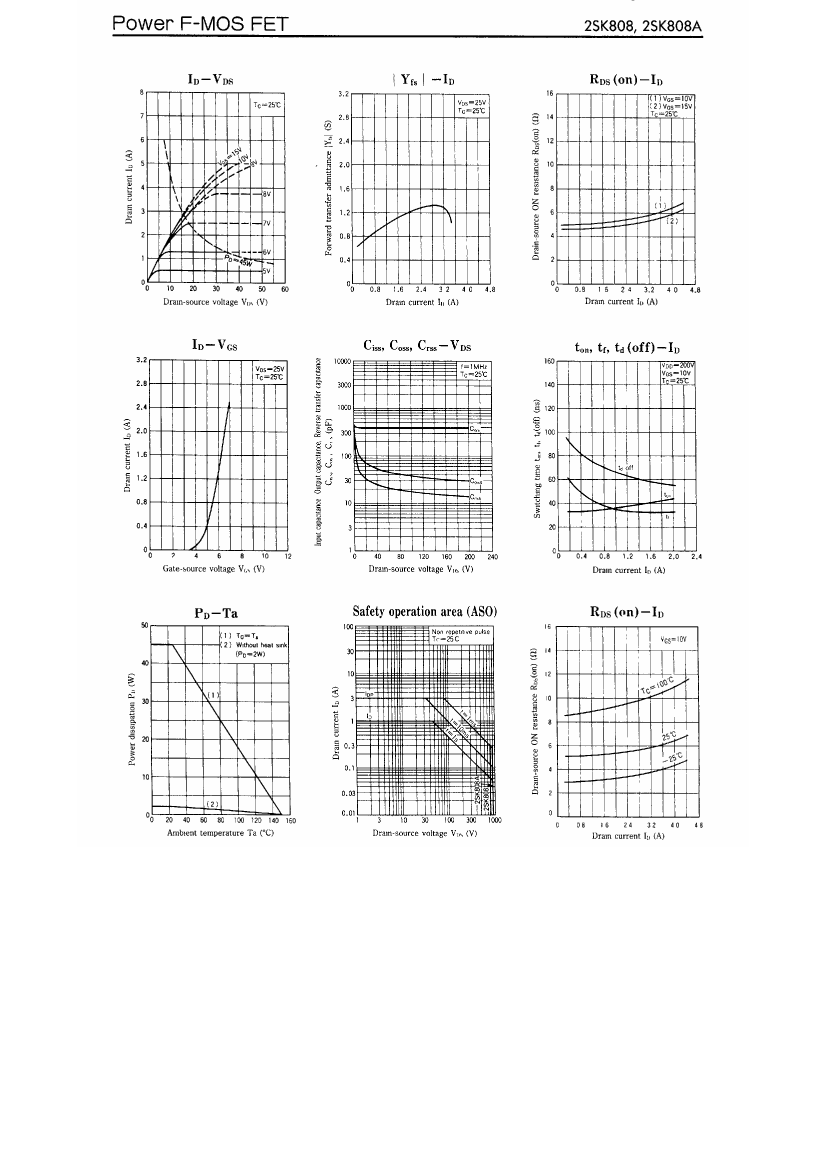

	2SK808A	2SK808
Description	Silicon N-channel Power F-MOS FET	Silicon N-channel Power F-MOS FET
Parts packaging code	TO-220AB	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Minimum drain-source breakdown voltage	900 V	800 V
Maximum drain current (Abs) (ID)	1 A	1 A
Maximum drain current (ID)	1 A	1 A
Maximum drain-source on-resistance	7 Ω	7 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	2 W	2 W
Maximum pulsed drain current (IDM)	3 A	3 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
