Part Number

Search

52986-3659

Description
I/O Connectors 1.27I/O RecRA Nut-In MtlL DipHsgAssy36Ckt
CategoryThe connector    The connector
File Size186KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

52986-3659 Online Shopping

Suppliers Part Number Price MOQ In stock
52986-3659 - - View Buy Now

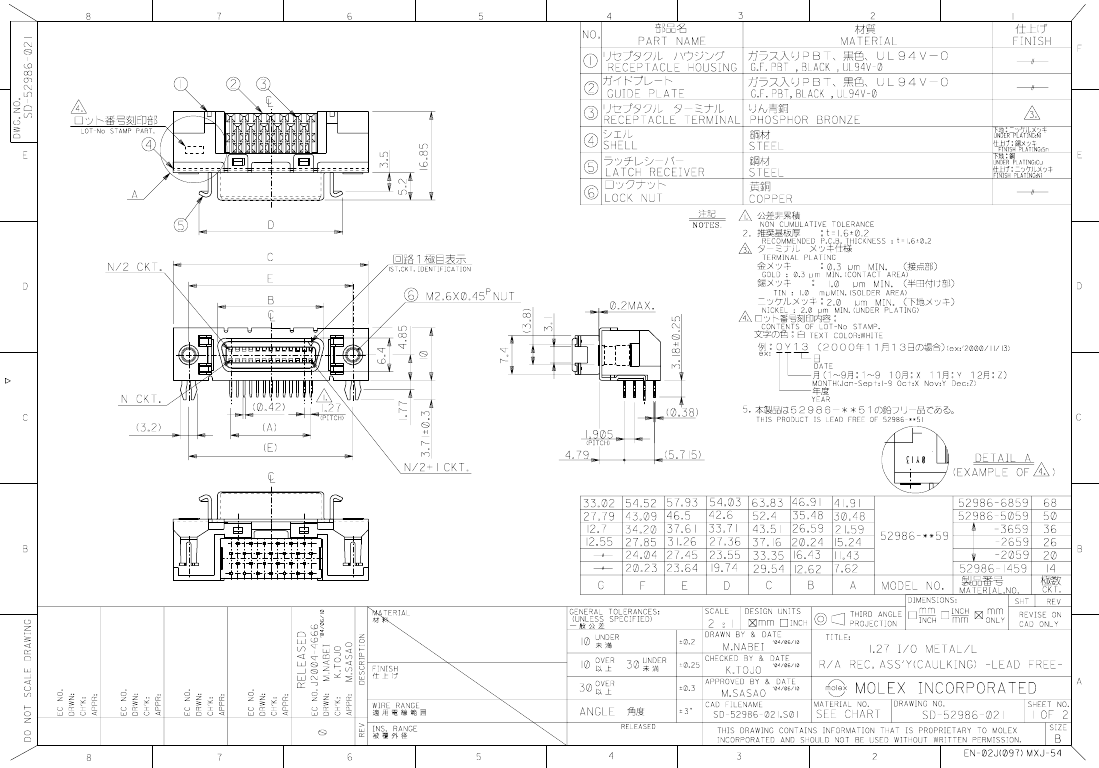

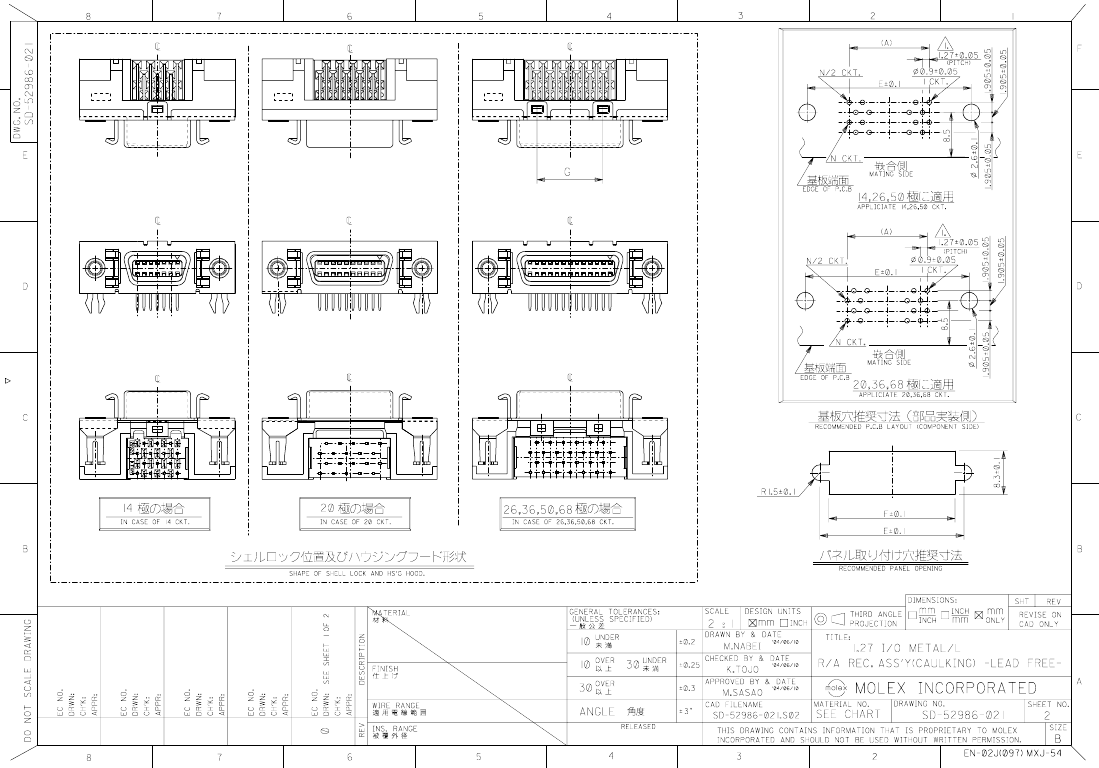

52986-3659 Overview

I/O Connectors 1.27I/O RecRA Nut-In MtlL DipHsgAssy36Ckt

52986-3659 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
body width0.394 inch
subject depth0.459 inch
body length1.713 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number52986
Plug contact pitch0.05 inch
Match contact row spacing0.12 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number4
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness12u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell materialSTEEL
Terminal length0.125 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts36
Base Number Matches1

52986-3659 Related Products

52986-3659 52986-2069 52986-2071
Description I/O Connectors 1.27I/O RecRA Nut-In MtlL DipHsgAssy36Ckt I/O Connectors 1.27 I/O RecRA NutIn Metal/L DipAssy20Ckt I/O Connectors SHIELDED RECP RA 20 dual row 1.27mm
Maker Molex Molex Molex
Reach Compliance Code unknown compliant unknown
body width 0.394 inch 0.394 inch 0.394 inch
subject depth 0.459 inch 0.459 inch 0.459 inch
body length 1.713 inch 1.313 inch 1.313 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Contact to complete cooperation AU ON NI AU ON NI NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE
Insulator color BLACK BLACK BLACK
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch 0.05 inch 0.05 inch 0.05 inch
Installation option 1 LOCKING LOCKING M2.6X0.45
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
PCB row number 4 4 4
Number of rows loaded 2 2 2
PCB contact pattern STAGGERED STAGGERED STAGGERED
PCB contact row spacing 1.905 mm 1.905 mm 1.905 mm
Plating thickness 12u inch 12u inch 12u inch
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Shell material STEEL STEEL STEEL
Terminal length 0.125 inch 0.125 inch 0.125 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 36 20 20
Base Number Matches 1 1 1
Contact completed and terminated TIN OVER NICKEL TIN OVER NICKEL -
Manufacturer's serial number 52986 - 52986
Match contact row spacing 0.12 inch 0.12 inch -
Is it Rohs certified? - conform to incompatible
ECCN code - EAR99 EAR99
