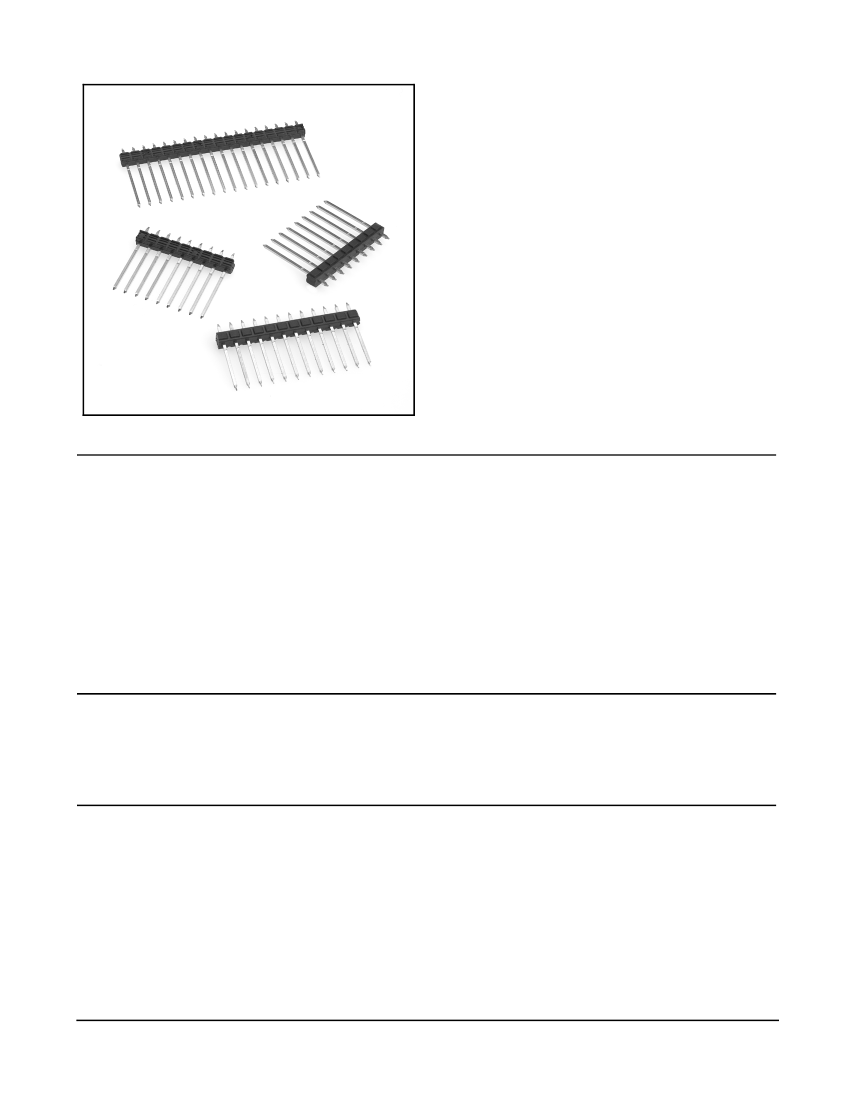

3M
™
Pin Strip Header
.100″ Board Stacking
•
•
•
•
•
929 Series
36 sizes (1 to 36 position)
Standard .025″ square posts
.100″ spacing between posts
Board pin retention feature available
See Regulatory Information Appendix (RIA)
for chemical compliance information.
Date Modified: March 8, 2007
TS-0539-11
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Marking:
Glass Filled Polyester (PBT) or PCT
UL 94V-0
Black
Copper Alloy
50
μ″
[ 1.27
μm
] Nickel
10
μ″
[ 0.25
μm
] Gold
None
Electrical
Current Rating:
2.5 A
Insulation Resistance:
> 5
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1500 V
RMS
at Sea Level
Environmental
-40°C to +105°C
Process Rating:
260°C (per J-STD-020C) PCT version insulators only
(PBT insulator version), maximum insulator temperature 191°C
(Wave Solder Process Only)
Moisture Sensitivity Level:
1 (per J-STD-020C) PCT version insulators only
Temperature Rating:
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
.100″ Board Stacking
Mating Length
Code
Tail Length Code
A
Dimensions
B
E
929 Series
4717
6141
6381
4517
10
01
01
28
0.125 [ 3.18]
0.428 [10.87]
0.545 [13.84]
0.235 [ 5.97]
0.110 [2.79]
0.100 [2.54]
0.100 [2.54]
0.793 [20.14]
0.335 [ 8.51]
0.628 [15.95]
0.745 [18.92]
1.128 [28.65]
C
( See Note )
.115 [2.92]
2X .05 Max
[1.27]
(See Note 1)
.060 [1.52]
A
±
.008
E Ref
.025 Sq Typ
[0.64]
B
±
.015
.100 Typ [2.54]
.100 [2.54]
∅
.040
±
.003 After Plating
[1.02]
.100 [2.54]
Recommended Hole Pattern
[mm]
Tolerance Unless Noted
.0
Inch
±
.1
.00
.000
±
.01
±
.005
Inch
Note:
C = .10" [2.5] × pin quantity. Dimension C is a maximum when the pin strip is cut to length, not when the strip is broken to length.
[ ] Dimensions for
Reference only
Ordering Information
92XXXX-XX-XX-XX
Mating Length Code
(See Table)
Tail Length Code
(See Table)
Plating Suffix
I = 10
μ″
[0.25
μ
m] all over, PBT insulator
(RIA E1 & C1 apply)
EU = 10
μ″
[0.25um] all over, PCT insulator
(RIA E1 & C1 apply)
TS-0539-11
Pin Quantity
Sheet 2 of 2
(01-36)
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon
information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision
2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party
suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
