51441-0893 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51441-0893

51441-0893: DescriptionFFC & FPC Connectors .5MM FPC 8 POS R/A SMT ZIF BOTTOM; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51441-0893 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51441-0893	-	-	View	Buy Now

51441-0893 Overview

FFC & FPC Connectors .5MM FPC 8 POS R/A SMT ZIF BOTTOM

51441-0893 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ELV & ROHS COMPLAINT, T/R PKG
Board mount options	FITTING NAIL
body width	0.043 inch
subject depth	0.126 inch
body length	0.248 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

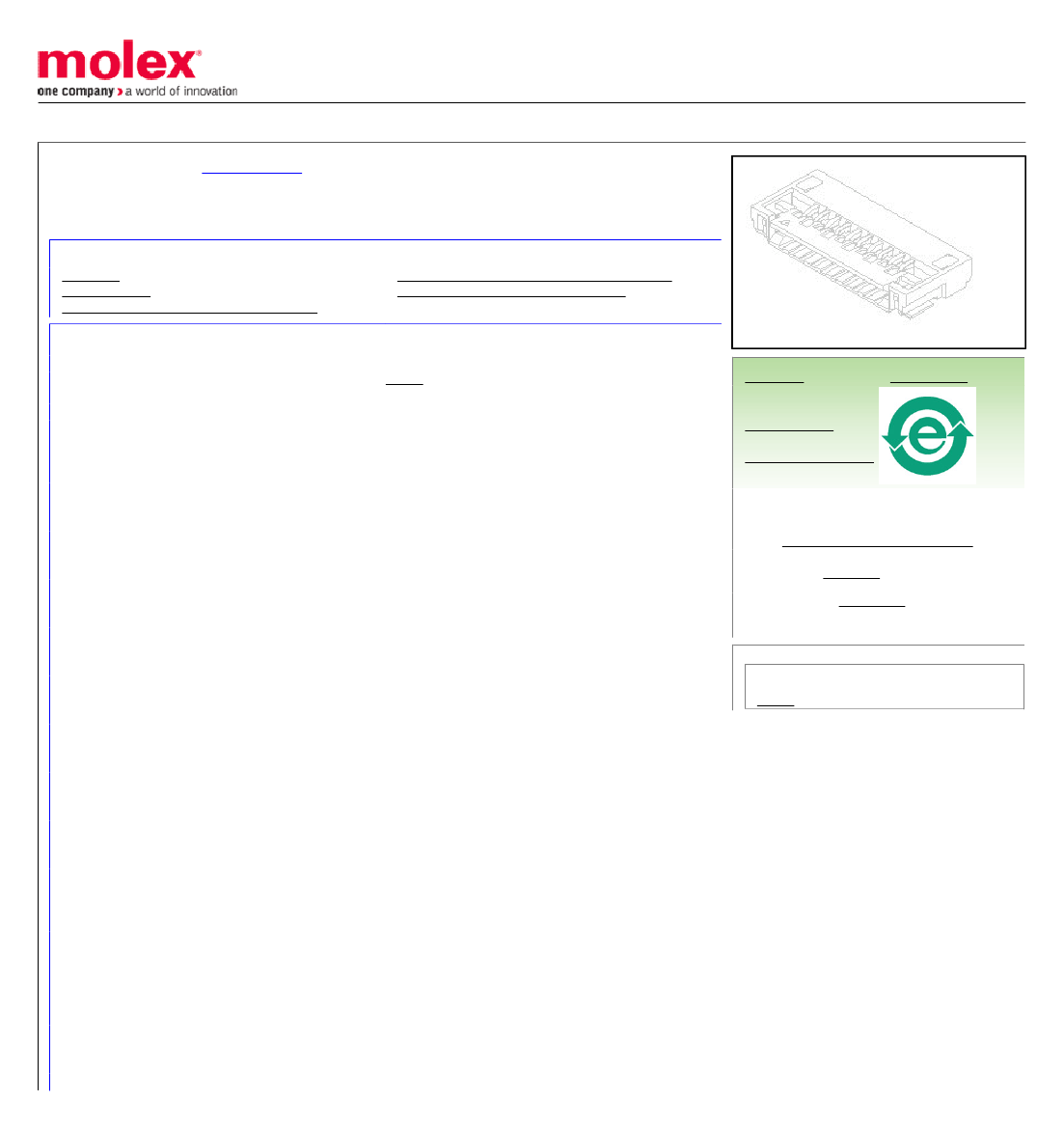

Preview

Download Datasheet

View All

This document was generated on 08/20/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

51441-0893

Active

0.50mm Pitch Easy-On™ Type FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom

Contact Style, 1.10mm Mated Height, 8 Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51441-005 (PDF)

Application Specification AS-51441-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Product Name

UPC

FFC/FPC Connectors

51441

Easy-On™

822348116102

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black, Natural

Bottom

90° Angle

1.10mm

Phosphor Bronze

Tin-Bismuth

High Temperature Thermoplastic

34.601/mg

Right Angle

None

Embossed Tape on Reel

0.50mm

1.016µm

Yes

-20°C to +85°C

Surface Mount

FFC/FPC

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

51441Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

AS-51441-001

PS-51441-005, RPS-51441-006, RPS-51441-008,

RPS-51441-009, RPS-51441-011, RPS-51441-018,

RPS-51441-023

SD-51441-007, SD-51441-008

Sales Drawing
