REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JUN-23-2014
BY
BEN
APPR
TOMMY
1" 1/16-18 UNEF THREAD
MASTER KEYWAY
.2
4-ø3
TITLE:
Ø28.6
33.3
27.0

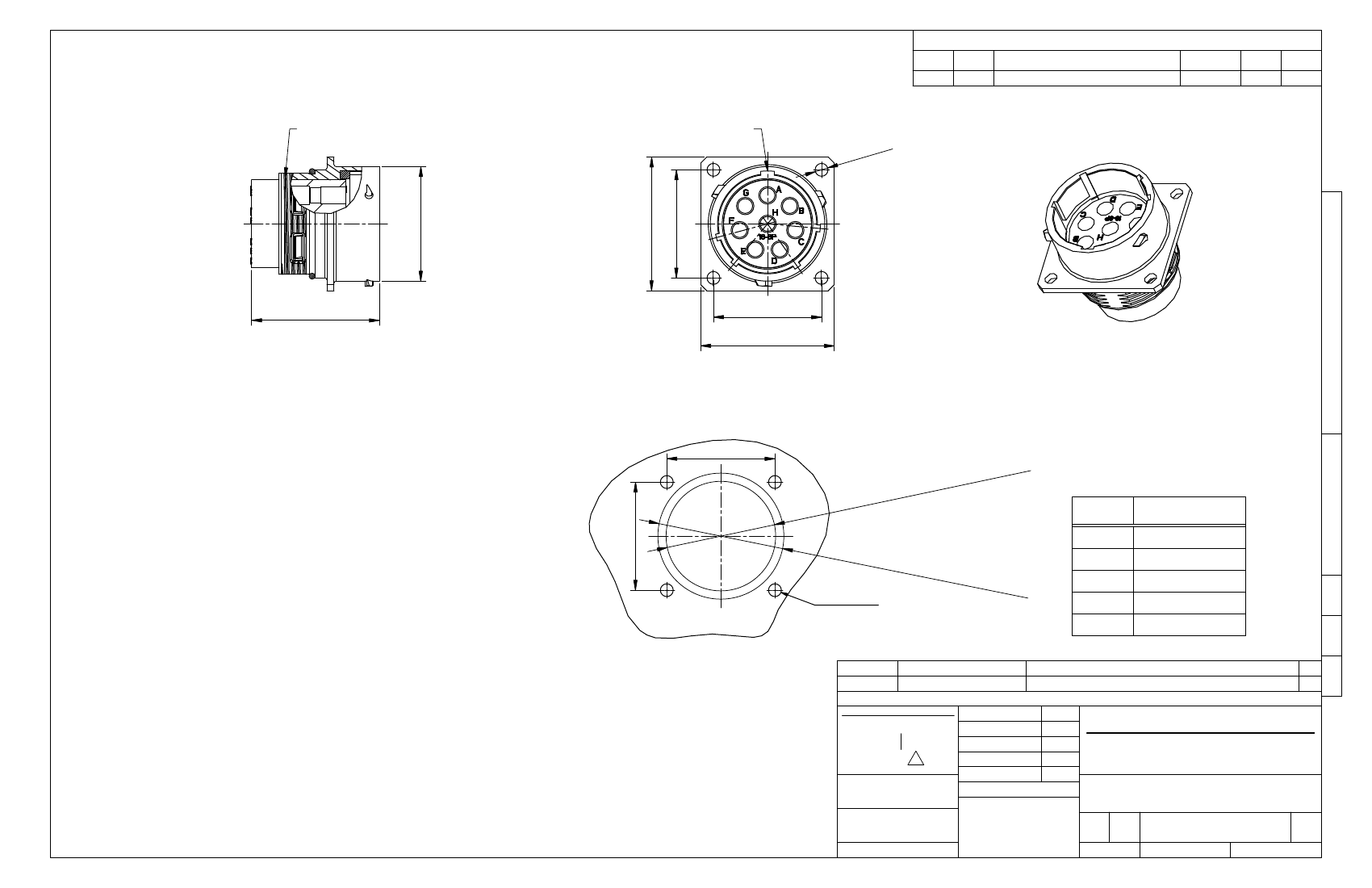

ECO-MATE,RECEPTACLE,SIZE 18 ,8POS,PIN.
32.5 Max
27.0
33.3
DWG NO:
27.0
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
SEAL GASKET：NBR.
O-RING：NBR.
2. SPECIFICATIONS：
2.1 RATED CURRENT：23A (MAX).
2.2 RATED VOLTAGE：375V（AC/DC）.
2.3 OPERATING TEMPERATURE：-40°C ½+105°C.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@2000 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES MIN.
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：2.5mm CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
g)
ountin
el M
nt Pan
ro
+0.2
(For F
ø27.3
0
ø31.4
+0.2
0
(For
Rear P
anel M
ountin
g)
+0.2
4-ø3.2
0
RT00188P*H
KEY POS
N
W
X
Y
Z
PART NUMBER
RT00188PNH
RT00188PWH
RT00188PXH
RT00188PYH
RT00188PYH
27.0
REV:
B1
SH:
1
PANEL CUT OUT REFERENCE
QUANTITY
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JUN-23-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,RECEPTACLE,
SIZE 18 ,8POS,PIN.
TYPE
DWG NO:
REVISION
B
C-
RT00188P*H
SHEET
B1
1
OF
NONE
1
