52435-2972: DescriptionFFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 29Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52435-2972 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52435-2972	-	-	View	Buy Now

52435-2972 Overview

FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 29Ckt EmbsTp Pkg

52435-2972 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Samacsys Description	FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 29Ckt EmbsTp Pkg
Other features	ZIF
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.185 inch
body length	0.85 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	39u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	29
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

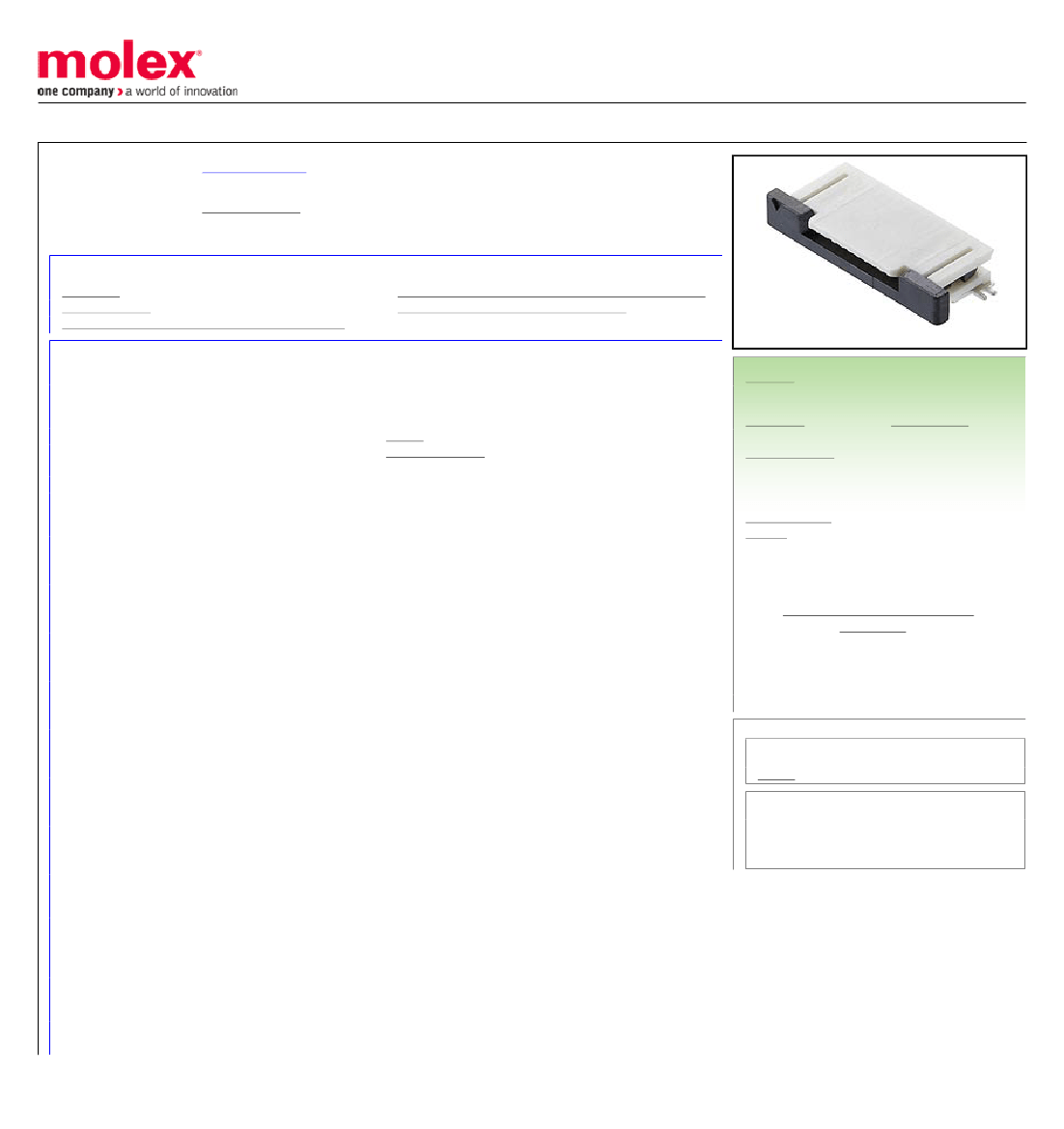

Preview

Download Datasheet

View All

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0524352971

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Top

Contact Style, 29 Circuits, Gold (Au) Contact Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52435-025-001 (PDF)

Agency Certification

General

Product Family

Series

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-52435-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

52435

FFC-FPC (SMT)

Easy-On

Slider

822350206457

Top

90° Angle

94V-0

2.00mm

Phosphor Bronze

Gold

Nylon

381.634/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

52435 Series

Mates With

<a href="http://www.molex.com/product/

premoflex_ffc-fpc.html">Molex Premo-Flex

FFC</a>. Be sure to match like plating

SPK-52435-001-001

PS-52435-025-001

SD-52435-016, SD-52435-017

52435-2972 Related Products

	52435-2972	52435-2971
Description	FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 29Ckt EmbsTp Pkg	FFC & FPC Connectors 0.5 FPC ZIF SMT RA 29P EmbsTp Pkg
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	LEAD FREE	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	ZIF	EASY-ON, POLARIZED
Board mount options	FITTING NAIL	FITTING NAIL
body width	0.079 inch	0.079 inch
subject depth	0.185 inch	0.204 inch
body length	0.85 inch	0.831 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω
insulator material	NYLON	NYLON
MIL compliance	NO	NO
Plug contact pitch	0.02 inch	0.02 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.05 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	29	29
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
