Datasheet> All Categories > The connector> The connector> 87340-2013

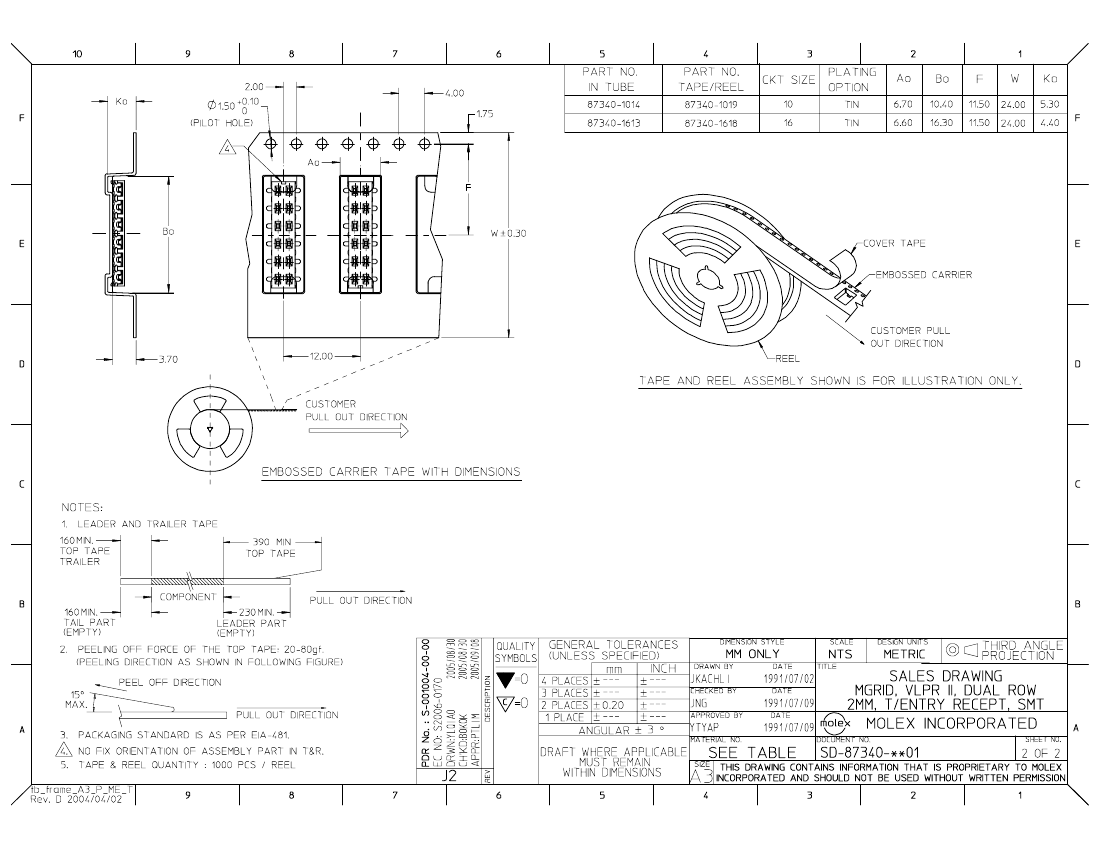

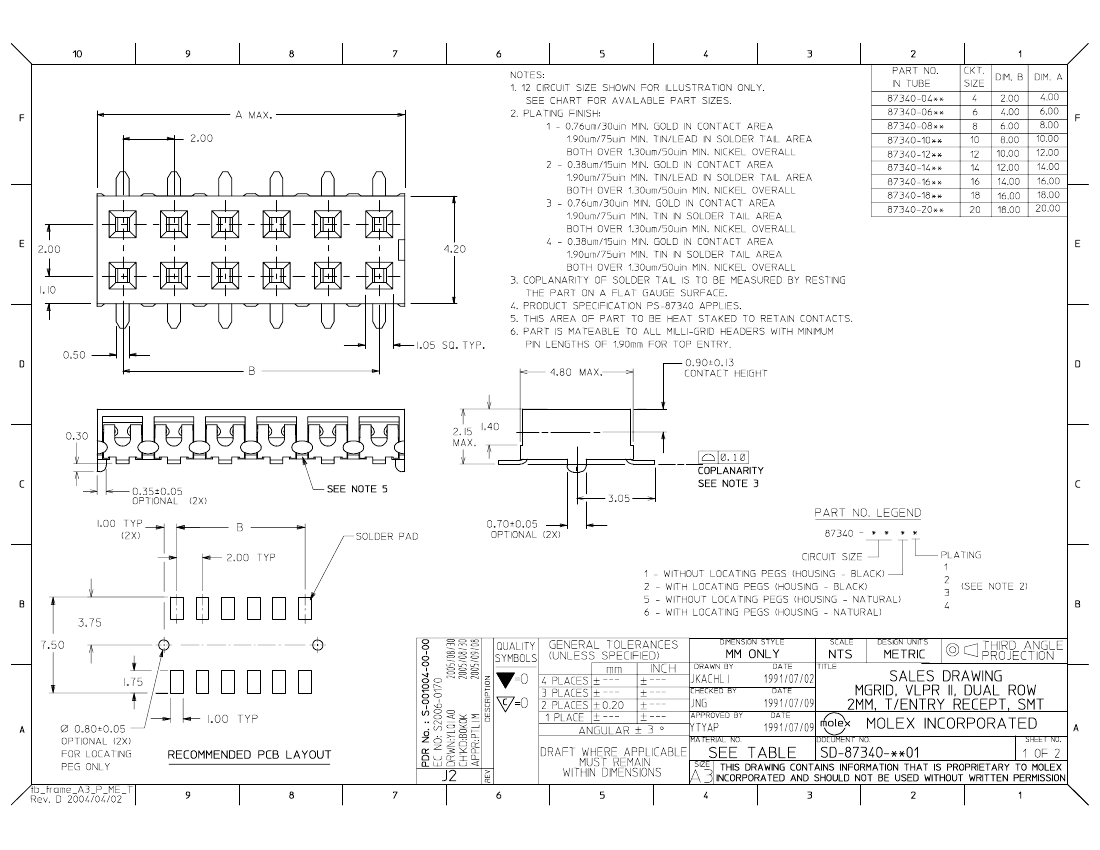

Preview

87340-2013: DescriptionHeaders & Wire Housings MGrid Rec SMT VLPR2 2 /OPg .76AuLF 20Ckt; CategoryThe connector The connector; File Size156KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87340-2013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87340-2013	-	-	View	Buy Now

87340-2013 Overview

Headers & Wire Housings MGrid Rec SMT VLPR2 2 /OPg .76AuLF 20Ckt

87340-2013 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TOP ENTRY
body width	0.173 inch
subject depth	0.085 inch
body length	0.787 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87340
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7404 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

87340-2013 Related Products

	87340-2013	87340-1823	87340-0414	87340-1698	87340-1013
Description	Headers & Wire Housings MGrid Rec SMT VLPR2 2 /OPg .76AuLF 20Ckt	Headers & Wire Housings MGrid Rec SMT VLPR2 R2 /Pg .76AuLF 18Ckt	Headers & Wire Housings MGrid Rec SMT VLPR2 R2 /OPg .38AuLF 4Ckt	Headers & Wire Housings MGrid Rec SMT VLPR2 /Cap T&R.76AuLF 16Ck	Headers & Wire Housings MGrid Rec SMT VLPR2 2 /OPg .76AuLF 10Ckt
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TOP ENTRY	TOP ENTRY	TOP ENTRY	MILLI-GRID	TOP ENTRY
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (15) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	20	18	4	16	10
Base Number Matches	1	1	1	1	1
body width	0.173 inch	0.173 inch	0.173 inch	-	0.173 inch
subject depth	0.085 inch	0.085 inch	0.085 inch	-	0.085 inch
body length	0.787 inch	0.709 inch	0.157 inch	-	0.394 inch
Contact completed and terminated	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	TIN (75) OVER NICKEL	-	TIN (75) OVER NICKEL
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	-	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	-	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	-	25 Cycles
maximum insertion force	1.7514 N	1.7514 N	1.7514 N	-	1.7514 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	-	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC
JESD-609 code	e3	e3	e3	-	e3
Manufacturer's serial number	87340	87340	87340	-	87340
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING	LOCKING	LOCKING	-	LOCKING
Number of connectors	ONE	ONE	ONE	-	ONE
PCB row number	2	2	2	-	2
Maximum operating temperature	105 °C	105 °C	105 °C	-	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	5.7404 mm	5.7404 mm	5.7404 mm	-	5.7404 mm
Plating thickness	30u inch	30u inch	15u inch	-	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	-	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	-	.1946 N
