85003-1378 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 85003-1378

85003-1378: DescriptionDIN 41612 Connectors DINCON C/3 MLE 30CKT; CategoryThe connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

85003-1378 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85003-1378	-	-	View	Buy Now

85003-1378 Overview

DIN 41612 Connectors DINCON C/3 MLE 30CKT

85003-1378 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	DIN 41612 Connectors
RoHS	Not Applicable
Number of Rows	3 Row
Termination Style	Through Hole
Contact Plating	Gold
Packaging	Bulk
Factory Pack Quantity	1020

Preview

Download Datasheet

View All

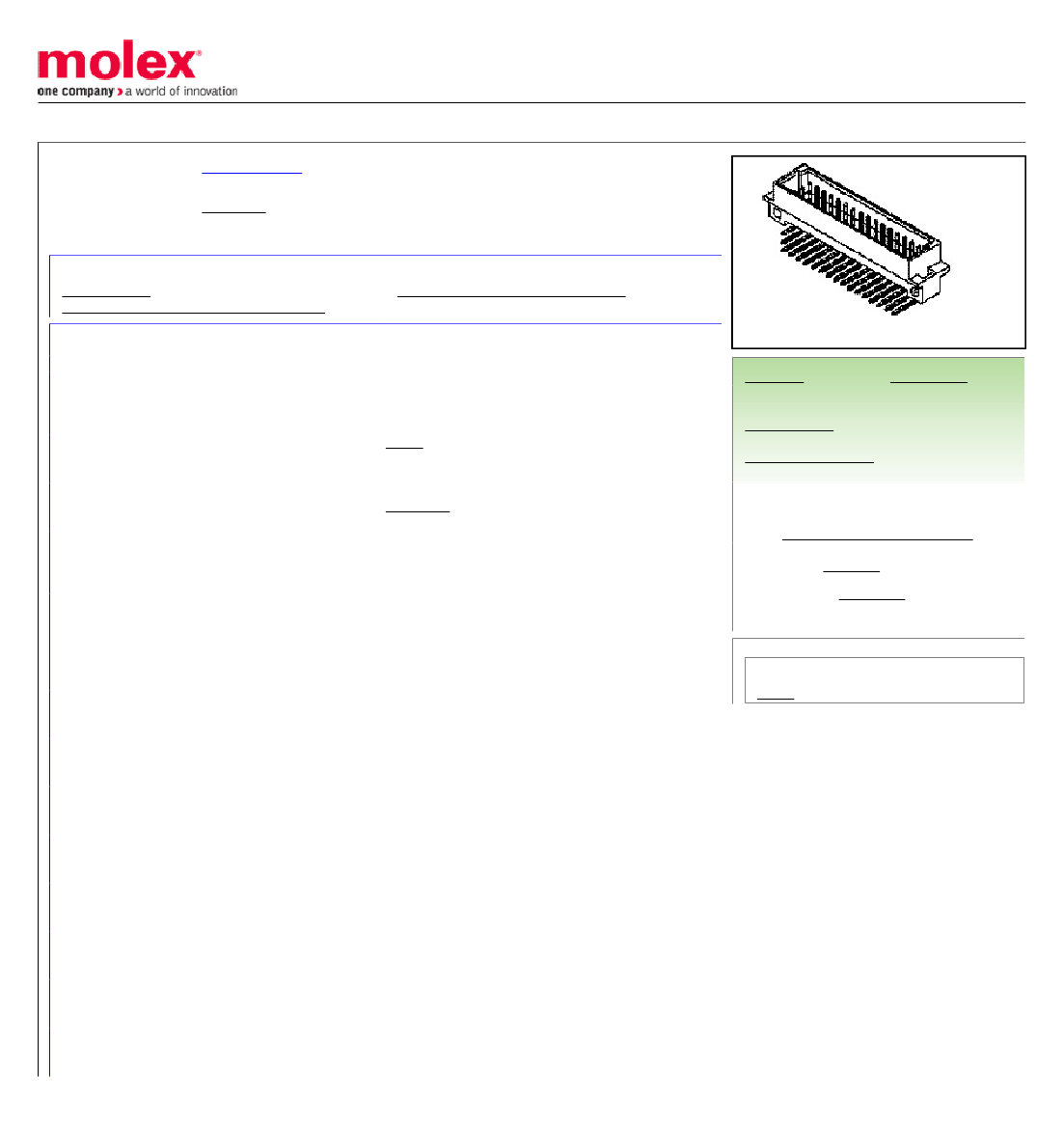

This document was generated on 02/17/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

85003-1378

Active

DIN 41612

2.54mm Pitch DIN 41612 C/3 Style Male Header, Right Angle, Through Hole, 1.27µm

Selective Gold (Au) Plating, 30 Circuits, without Mounting Clips, No Flux Proof

Documents:

Drawing (PDF)

Product Specification PS-85003-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

UPC

Backplane Connectors

85003

Backplane

No Mounting Clips. No Flux Proof

PCB Header

DIN 41612

IEC 603-2/DIN 41612

C/3

800754895729

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Standard Contact Positions at: A:a1-a10; B:b1-b10;

C:c1-c10

Gray

500

94V-0

Yes

Brass

Gold

Tin

Polyester

Open Pin Field

Right Angle

3.00mm

Yes

1.60mm

Carton

2.54mm

1.270µm

2.540µm

Yes

Search Parts in this Series

85003Series
