87682-2003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87682-2003

87682-2003: DescriptionPower to the Board Pwr Hdr RA THole W/B e W/Bld .76AuLF 4Ckt; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87682-2003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87682-2003	-	-	View	Buy Now

87682-2003 Overview

Power to the Board Pwr Hdr RA THole W/B e W/Bld .76AuLF 4Ckt

87682-2003 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYETHYLENE
Termination type	PRESS FIT
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

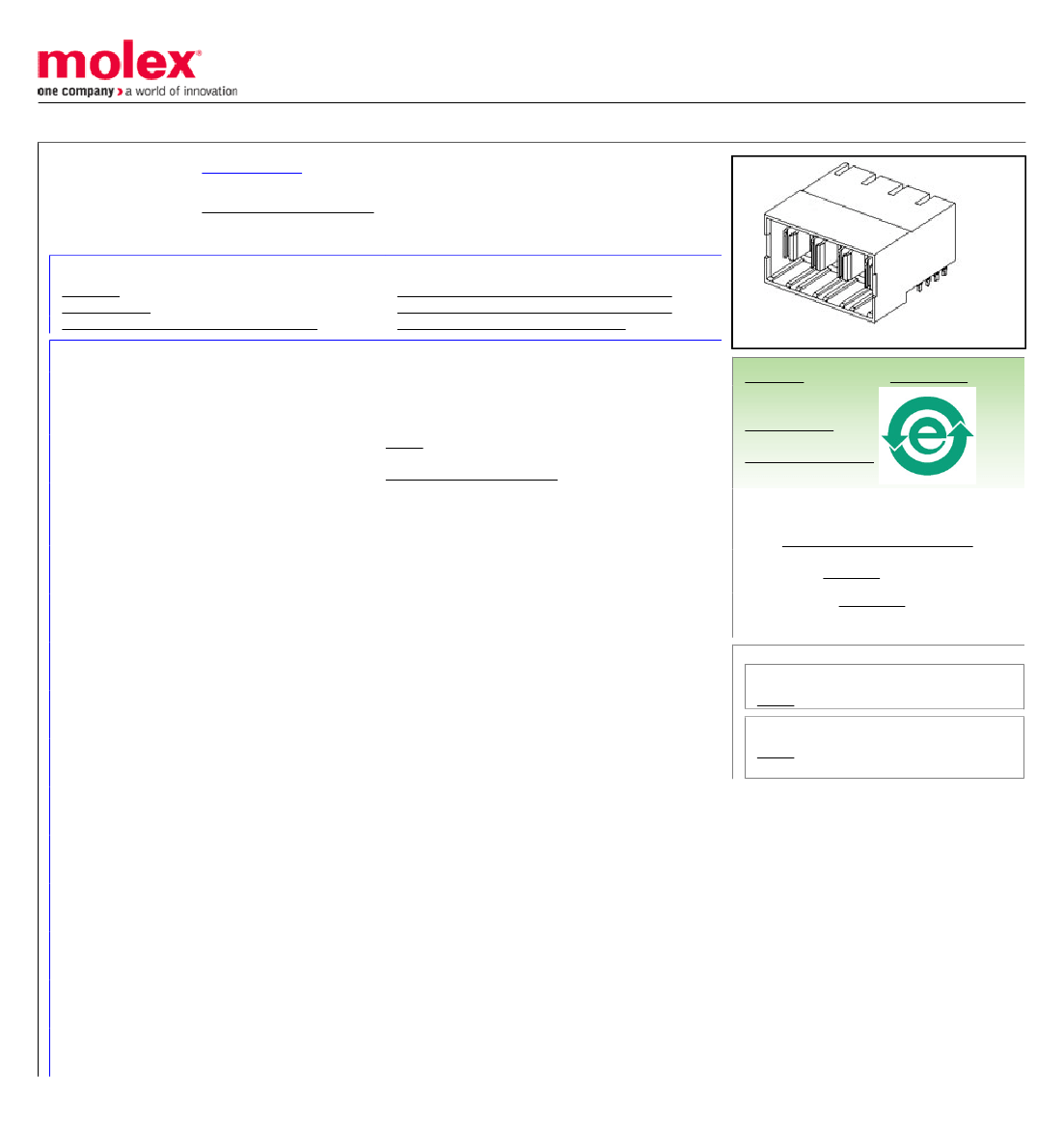

This document was generated on 07/08/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

87682-2003

Active

EXTreme PowerPlus™ (SSI)

6.35mm Pitch EXTreme PowerPlus™ Header, All Power, Press-fit, Right Angle, 4

Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87680-006 (PDF)

Application Specification AS-87631-018 (PDF)

Application Specification AS-87682-009 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

87682

Board-to-Board, Power

EXTreme PowerPlus™ (SSI)

EXTreme PowerPlus™

822348529353

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

4p - 0s

Black

100

94V-0

None

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

10.632/g

Right Angle

3.43mm

Yes

1.60mm

Tray

6.35mm

0.762µm

2.540µm

Yes

Fully

-20°C to +70°C

Through Hole - Compliant Pin

Search Parts in this Series

87682Series

Mates With
