09-48-2159 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09-48-2159

09-48-2159: DescriptionHeaders & Wire Housings KK 156 PCB Assy Bott 15 Ckts Tin; CategoryThe connector The connector; File Size337KB，11 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

09-48-2159 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	09-48-2159	-	-	View	Buy Now

09-48-2159 Overview

Headers & Wire Housings KK 156 PCB Assy Bott 15 Ckts Tin

09-48-2159 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	KK, BOTTOM ENTRY, STACKED
body width	0.308 inch
subject depth	0.449 inch
body length	2.336 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	50000000000 Ω
Insulator color	NATURAL
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.3782 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	3.753 N
Base Number Matches	1

Preview

Download Datasheet

View All

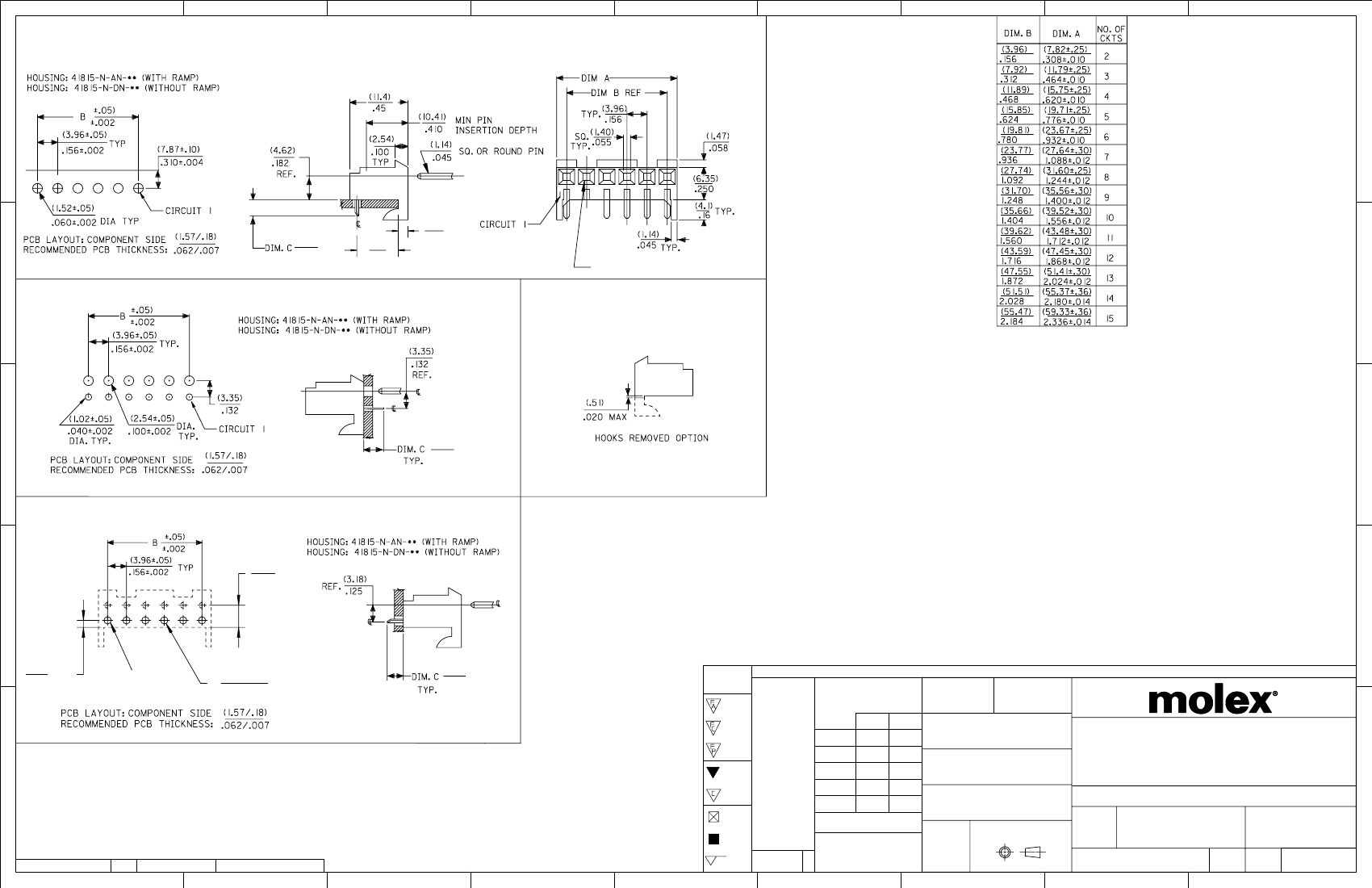

RIGHT ANGLE

+0.97

-0.00

+.038

-.000

(7.9)

.31

REF

(1.91)

.075

OPTIONAL VOIDED CIRCUIT

SEE CHART FOR LOCATION

BOTTOM ENTRY

+0.15

-0.71

+.006

-.028

SEE NOTE 9

(NOT AVAILABLE ON RIGHT ANGLE)

TOP ENTRY

(4.62)REF.

.182

2016/08/22

2016/08/24

2016/08/26

(1.47)REF.

.058

CIRCUIT 1

⌀

(1.52)

0.05 DIA TYP

.060

.002

+0.28

-0.48

+.011

-.019

SEE NOTE 9

NOTES:

1. MATERIAL: HOUSING: POLYESTER, RATED UL 94V-0, COLOR: NATURAL (WHITE)

2. FINISH:

(197) = OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN

OVER 0.00127/.000050 MIN NICKEL.

(208) = SELECT GOLD: 0.00038/.000015 MIN,

SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(228) = SELECT GOLD: 0.00076/.000030 MIN,

SELECT TIN: 0.00254/.000100 MIN,

OVERALL NICKEL UNDERPLATE: 0.00127/.000050 MIN.

(909) = OVERALL TIN: 0.00254/.000100 MIN.

3. PRODUCT SPECIFICATION: PS-08-50

4. PACKAGING: SEE CHARTS

5. FOR TOP ENTRY AND RIGHT ANGLE ASSEMBLIES WITH LOWER INSERTION

FORCE USE SINGLE BEAM CONTACT. (TERMINAL NO. 4244)

6. SOLDERABILITY: WHEN PARTS ARE SOLDERED AT A TEMPERATURE OF 230

(446

F) FOR 5 SECONDS EACH SOLDERED SURFACE SHALL BE A MINIMUM OF 95%

COVERED WITH A SMOOTH CONTINUOUS ADHERENT COATING. FOR ADDITIONAL

INFORMATION SEE SMES-152.

7. PARTS ARE STACKABLE END TO END ON (3.96)/.156 CENTERLINE.

8. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPEC PS-45499-002.

9. DIMENSION ‘C” MEASURED WITH TERMINAL PUSHED IN AGAINST THE STOP.

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

DIM C TOLERANCE

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

NTS

INCH

0.01

0.015

4 PLACES

3 PLACES

2 PLACES

0.25

0.38

SAMIEC

CHK'D BY

DATE

1987/01/28

DATE

107740

MKIPPER

JBELL

FSMITH

SAMIEC

APPR BY

KK 156 HOUSING PCB

41815 SERIES

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0 PLACES

SAMIEC

DRAWING SIZE

1987/01/28

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

0.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-B

REVISION: C

DATE: 2016/04/04

RELEASE DATE

41815

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

SDA-41815

PSD

000

1 OF *

REV
