64322-1029 (Cut Strip) datasheet, PDF

Datasheet> All Categories > The connector> 64322-1029 (Cut Strip)

64322-1029 (Cut Strip): DescriptionAutomotive Connectors SN PLTD .75MMF/M TRM Cut Strip of 100; CategoryThe connector; File Size55KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

64322-1029 (Cut Strip) Overview

Automotive Connectors SN PLTD .75MMF/M TRM Cut Strip of 100

64322-1029 (Cut Strip) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Automotive Connectors
RoHS	Details
Product	Terminals
Number of Positions	-
Gender	Female
Mounting Style	Wire
Termination Style	Crimp
Contact Plating	Tin
Wire Gauge Range	24 AWG to 22 AWG
Packaging	Cut Tape
Contact Type	Female
Current Rating	6 A
Family	Crimp Terminals
Voltage Rating	14 V
Contact Material	Phosphor Bronze
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	100
Unit Weight	0.006702 oz

Preview

Download Datasheet

View All

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

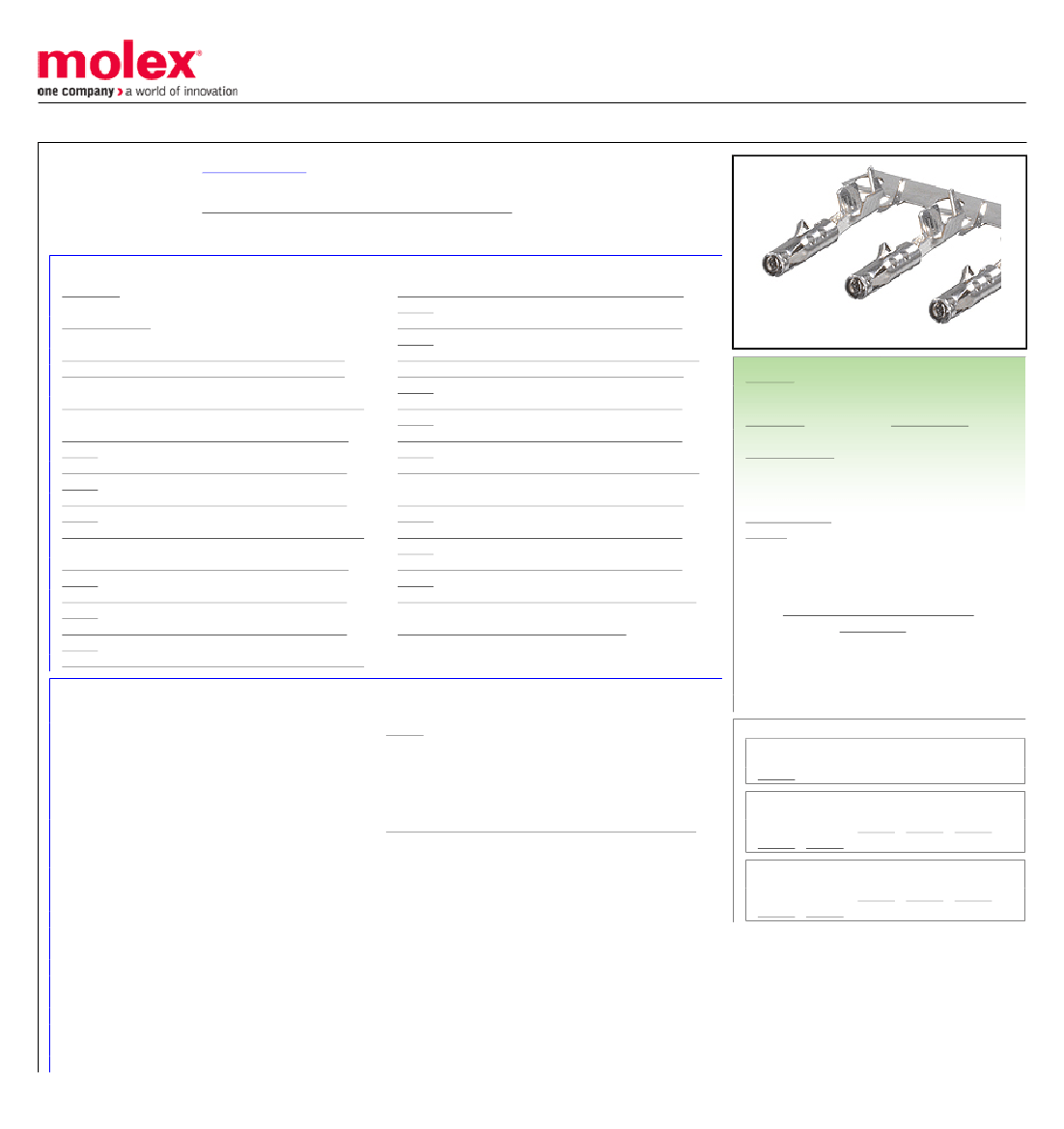

0643221029

Active

CMC and CMX Sealed, Hybrid, Modular Connectors

0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire

Size 0.75mm²

Documents:

3D Model

Drawing (PDF)

Product Specification PS-64319-002-001 (PDF)

Product Specification PS-64326-001-001 (PDF)

Application Specification AS-64318-002-001 (PDF)

Application Specification AS-64318-002-CH-001

(PDF)

Application Specification AS-64318-002-FR-001

(PDF)

Application Specification AS-64318-002-SP-001

(PDF)

Application Specification AS-64319-002-001 (PDF)

Application Specification AS-64319-002-CH-001

(PDF)

Application Specification AS-64319-002-FR-001

(PDF)

Application Specification AS-64319-002-SP-001

(PDF)

Application Specification AS-64322-001-001 (PDF)

General

Product Family

Series

Application

Comments

Application Specification AS-64322-001-CH-001

(PDF)

Application Specification AS-64322-001-FR-001

(PDF)

Application Specification AS-98420-001-001 (PDF)

Application Specification AS-98420-001-CH-001

(PDF)

Application Specification AS-98420-001-FR-001

(PDF)

Application Specification AS-98420-001-SP-001

(PDF)

Application Specification AS-98420-002-001 (PDF)

Application Specification AS-98420-002-CH-001

(PDF)

Application Specification AS-98420-002-FR-001

(PDF)

Application Specification AS-98420-002-SP-001

(PDF)

Packaging Specification PK-98913-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Crimp Terminals

64322

Signal

* Current tested on a 5 terminals loaded connector,

current for temperature increase of 40°C. Current max =

6A for 0.635mm Terminal(0.75mm² wire)

Yes

CMC and CMX Sealed, Hybrid, Modular Connectors

CMC, CP Terminal

883906129477

Female

Phosphor Bronze

Tin

0.160/g

Reel

1.524µm, 3.048µm

Crimp or Compression

1.65-1.80mm

0.75

Search Parts in this Series

64322 Series

Mates With

CMC Connector 64318 , 64319 , 64320 ,

64321 , 64326

Use With

CMC Connector 64318 , 64319 , 64320 ,

64321 , 64326
