853-43-016-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 853-43-016-10-001000

853-43-016-10-001000: DescriptionIC & Component Sockets STANDARD SOCKET HEADER; CategoryThe connector The connector; File Size374KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

853-43-016-10-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	853-43-016-10-001000	-	-	View	Buy Now

853-43-016-10-001000 Overview

IC & Component Sockets STANDARD SOCKET HEADER

853-43-016-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

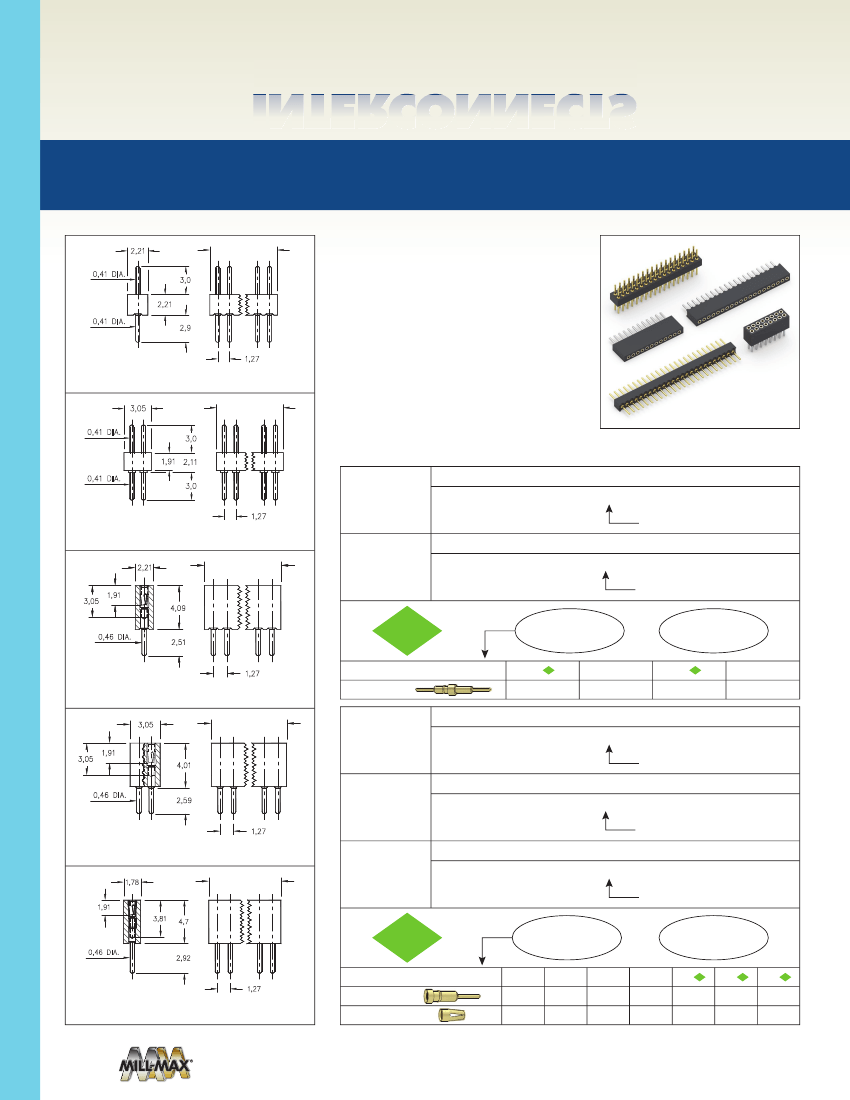

INTERCONNECTS

SERIES 850, 851, 852, 853 • 1,27 GRID HEADERS AND SOCKETS •

SINGLE AND DOUBLE ROW STRIPS

(Number of Pins

X 1,27) + 0,38

3,0

2,21

0,41 DIA.

2,9

2,21

0,41 DIA.

•

Series 850, 851, 852, 853 single and double

row interconnects have 1,27 pin spacing and

permit board stacking as low as 6,3

See page 208 for details

•

Pin headers have 0,41 dia. pins (MM #4006-0)

•

MM #0467 and MM #4890 receptacles use

1,27

FIG. 1

3,05

0,41 DIA.

Hi-Rel, 3- nger BeCu #11 contact rated at

3 amps. ( #11 contact accepts pin diameters

from 0,38 - 0,51). See pages 158 and 160 for

details

suitable for all soldering operations

(Number of Pins

X 1,27/2) + 0,38

3,0

1,91

2,11

3,0

•

Insulators are high temperature thermoplastic,

ORDERING INFORMATION

Series 850...001

0,41 DIA.

FIG. 1

1,27

Single Row 2,21 Pro le Pin Header

850 XX 0_ _ 10 001000

01-50

FIG. 2

2,21

Specify number of pins

Series 852...001

(Number of Pins

X 1,27) + 0,38

FIG. 2

RoHS - 2

Double Row 2,11 Pro le Pin Header

852 XX _ _ _ 10 001000

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

3,05

1,91

4,09

Specify number of pins

XX=Plating Code

See Below

0,25µm Au

0,46 DIA.

2,51

2011/65/EU

1,27

SPECIFY PLATING CODE XX=

Pin Plating

5,08µm Sn/Pb

5,08µm Sn

FIG. 3

3,05

(Number of Pins

X 1,27/2) + 0,38

Series 851...001

3,05

1,91

4,01

FIG. 3

Series 853...001

Single Row 4,09 Pro le Socket

851 XX 0_ _ 10 001000

01-50

Specify number of pins

0,46 DIA.

2,59

FIG. 4

1,27

Double Row 4,09 Pro le Socket

853 XX _ _ _ 10 001000

004-100

Specify number of pins

FIG. 4

PAGE 34 | INTERCONNECTS

1,78

1,91

3,81

4,7

Series 851...002

(Number of Pins

X 1,27) + 1,02

FIG. 5

RoHS - 2

Single Row 4,7 Pro le Socket

851 XX 0_ _ 10 002000

01-77

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

2011/65/EU

0,46 DIA.

2,92

1,27

FIG. 5

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

Au Flash

5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn/Pb

5,08µm Sn 5,08µm Sn 5,08µm Sn

0,25µm Au 0,76µm Au

2,54µm Sn/Pb

0,25µm Au 0,76µm Au
