0LCH1321Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0LCH1321Z

0LCH1321Z: DescriptionTerminal Block Tools & Accessories 600V Blocks and Covers; CategoryThe connector; File Size1MB，8 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0LCH1321Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0LCH1321Z	-	-	View	Buy Now

0LCH1321Z Overview

Terminal Block Tools & Accessories 600V Blocks and Covers

0LCH1321Z Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Terminal Block Tools & Accessories
RoHS	N
Product	Hardware
Type	Distribution Block Covers
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

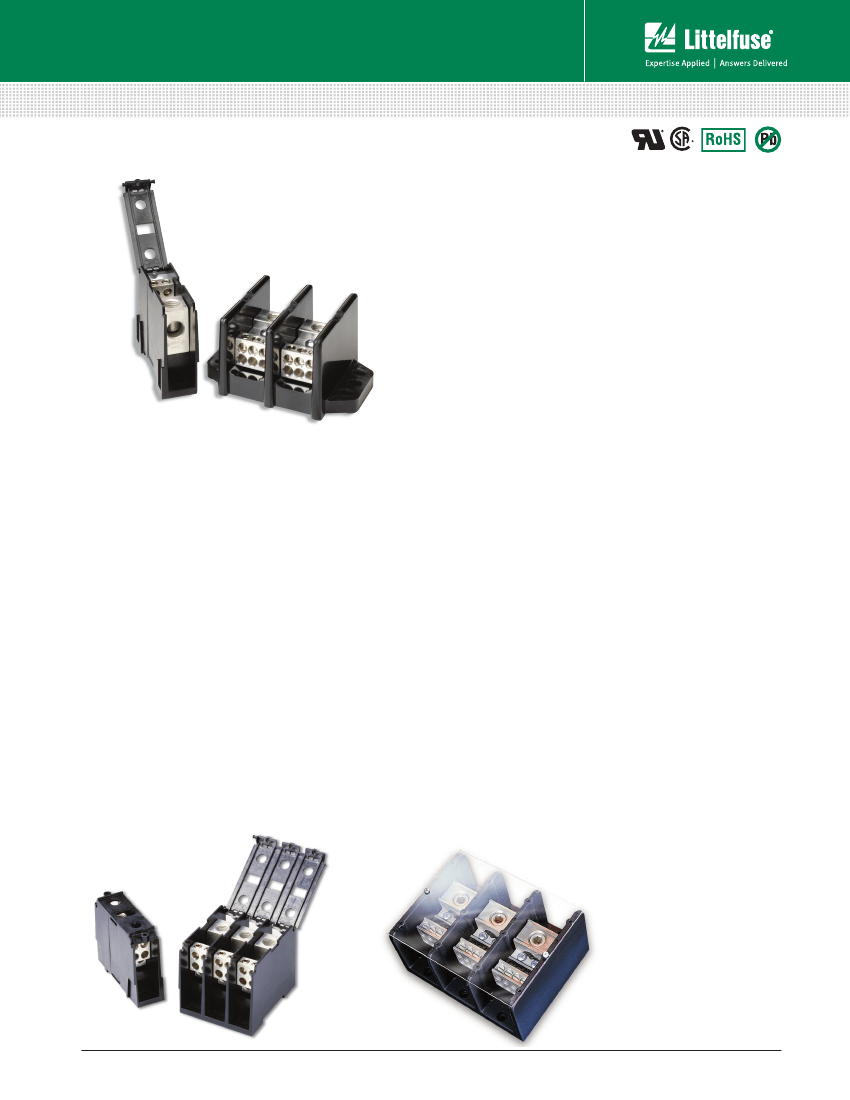

POWR-GARD

Blocks and Holders Datasheet

POWR-BLOKS

Distribution Blocks • Splicer Blocks • Covers

Connectors

Box lug connectors are designed for use with a single or

multiple, solid or class B or C stranded conductor. For UL

approved use of more than one conductor per connector

opening, contact Littelfuse Technical Service. Manufacturers

of cable terminations can furnish crimp-on sleeves for fine

stranded conductors which permit these conductors to be

used with box lugs.

Ampere Ratings

The ampere rating per pole for power distribution blocks is

based on the line ampacity of 75°C insulated conductors per

NEC

Table 310.16. If 60°C insulated conductors are used,

load must not exceed the ampacity of 60°C conductors.

Use of conductors rated in excess of 75°C is permitted (for

example 90°C), however, load must not exceed the ampacity

of 75°C conductors.

Description

POWR-BLOKS power distribution blocks offer a safe,

convenient way of splicing cables, providing a fixed junction

tap-off point or splitting primary power into secondary

circuits. Lx2xxx-DIN series offers integral DIN-Rail mount

and an optional hinged safety cover.

Optional power distribution block covers provide protection

against accidental shorting between poles caused by

loose wires, tools, or other conductive material. They also

protect personnel from accidentally contacting energized

connectors.

Specifications

Voltage Rating

Current Rating

SCCR

Material

Connector

Flammability Rating

Approvals

600 V

Based on NEC Table 310.16, using 75°C copper wire

Consult Factory

Phenolic rated at 150°C and Thermoplastic

rated at 125°C (LD1400 and LS1300 series only)

Aluminum: Highly conductive aluminum, tin plated

Copper: Highly conductive copper, tin plated

UL94 V-0

UL Recognized - 0LD/0LS Series (File: E171395)

LFD/LFS Series (File: E309688)

CSA Certified - 0LD/0LS Series (File: LR700111)

LFD/LFS Series (File: 007316_0_000)

UL Listed - 0LD57xxxx (File: E482231)

RoHS compliant, Lead (Pb) free

Applications

Typical applications include heating, air conditioning and

refrigeration systems, elevator systems, material handling

equipment, control panels, motor controls, switchgear,

and anywhere power needs to be distributed to more

than one load.

Environmental

Ordering Information

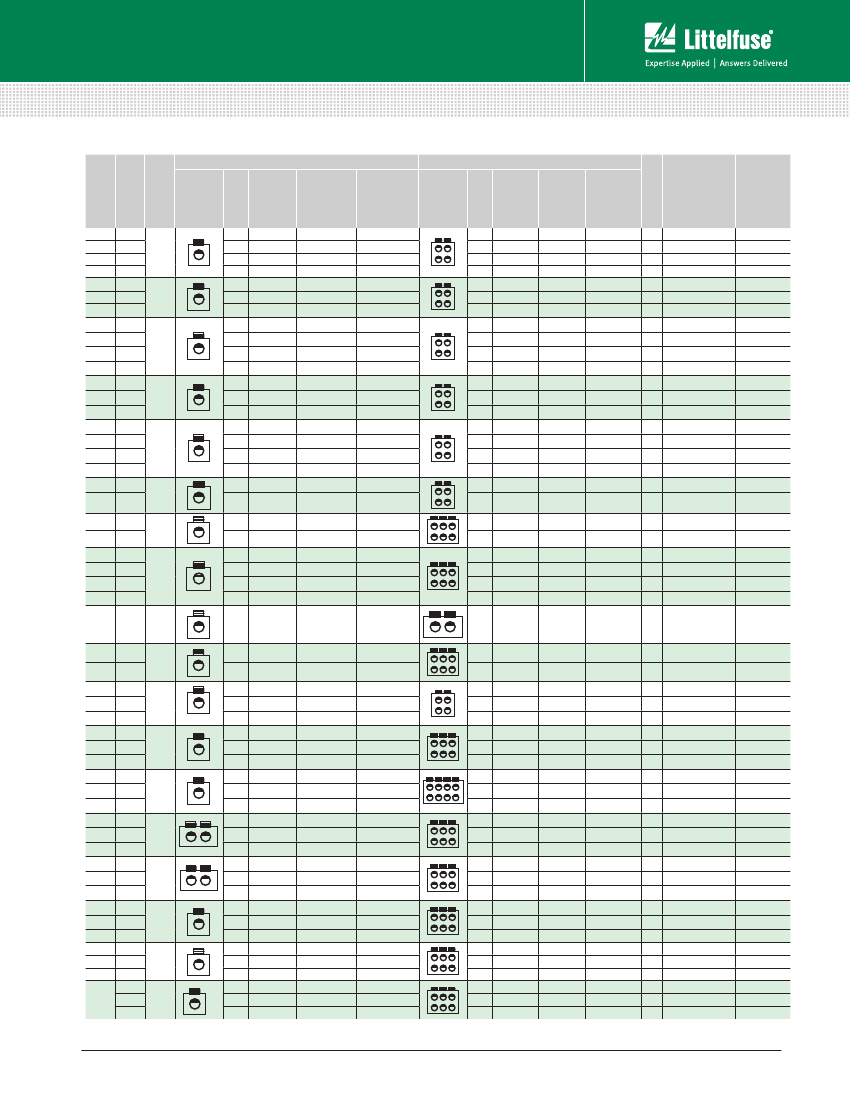

See Selection Guide on next page

Web Resources

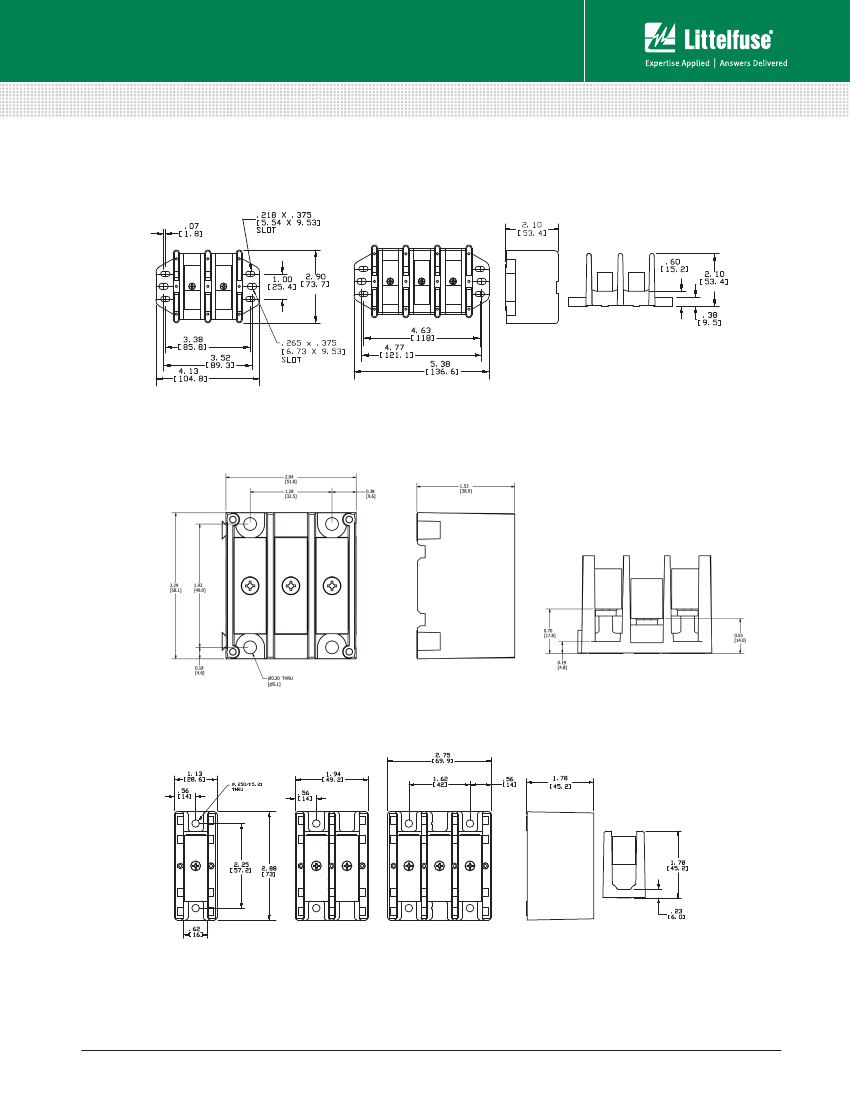

For dimension, CAD and 3-D drawings, visit:

Littelfuse.com/powrbloks

Hinged Plastic Covers

Clear Plastic Covers

littelfuse.com

1 of 8

Products

Rev: 2-B-112917
