HK-2125-3N3STK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> HK-2125-3N3STK

HK-2125-3N3STK: Description1 ELEMENT, 0.0033 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size414KB，32 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

HK-2125-3N3STK Overview

1 ELEMENT, 0.0033 uH, GENERAL PURPOSE INDUCTOR, SMD

HK-2125-3N3STK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.13 Ω
Nominal inductance(L)	0.0033 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Minimum quality factor (at nominal inductance)	12
Maximum rated current	0.3 A
self resonant frequency	4000 MHz
shield	NO
special characteristics	INDUCTANCE TOLERANCE IS 0.3 NANO HENRY
surface mount	YES
Terminal surface	Matte Tin (Sn)
Test frequency	100 MHz
Tolerance	9.091%
Base Number Matches	1

Preview

Download Datasheet

View All

F3115C 5/07

Table of Contents

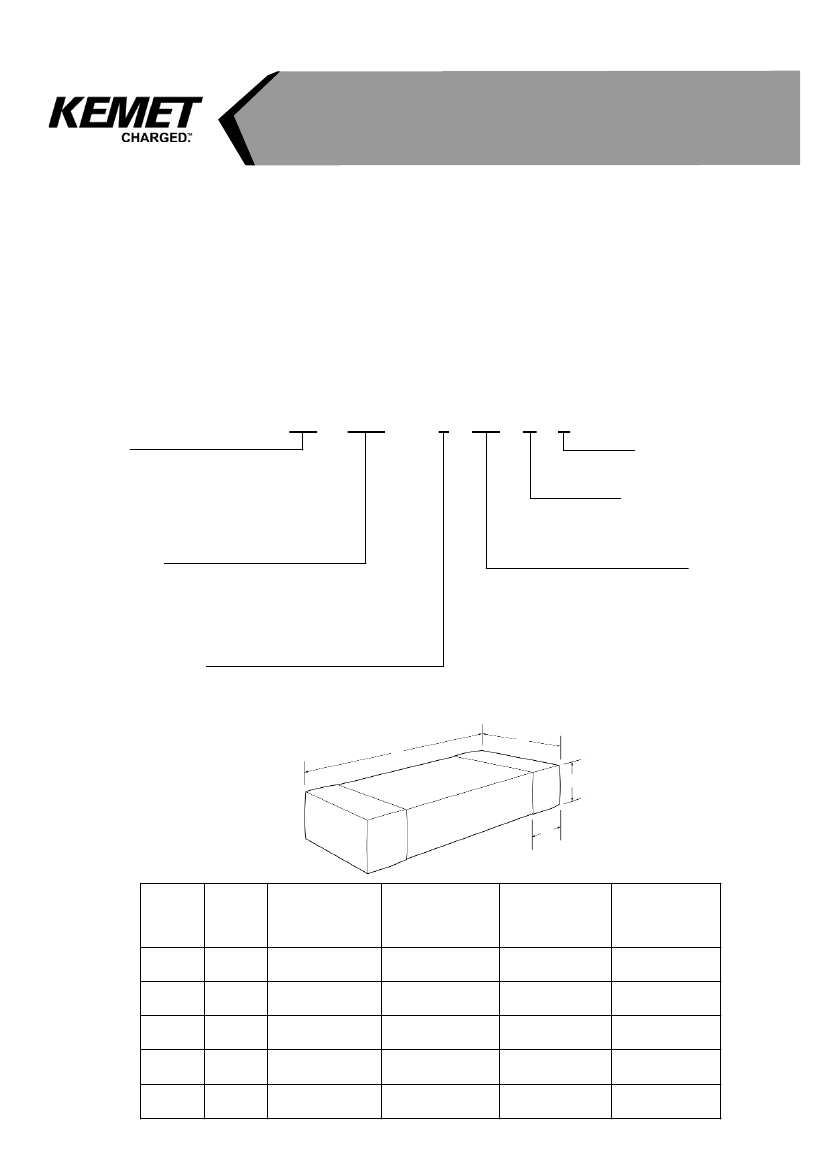

Wire Wound Chip Inductors - LB Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

0603 Case Size Standard Type (LB 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

0805 Case Size Standard Type (LB 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

0806 Case Size Standard Type (LB 2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

1007 Case Size Standard Type (LB 2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

1207 Case Size Standard Type (LB 3218 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

0603 Case Size Standard Type (LB MF 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

0805 Case Size High Current Type (LB C2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

0806 Case Size High Current Type (LB C2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

1007 Case Size High Current Type (LB C2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

0805 Case Size Low RDC Type (LB R2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

1007 Case Size Low RDC Type (LB R2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Wire Wound Chip Inductors - CB Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

0805 Case Size Low RDC Type (CB 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

0806 Case Size Low RDC Type (CB 2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

1007 Case Size Low RDC Type (CB 2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

0805 Case Size High Current Type (CBC 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

0806 Case Size High Current Type (CBC 2016 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9

1007 Case Size High Current Type (CBC 2518 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

1210 Case Size High Current Type (CBC 3225 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

0805 Case Size Low Profile Type (CBL 2012 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

0603 Case Size Power, Bottom Surface Electrode Type (CBMF 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

Multilayer Chip Inductors for High Frequency - HK Series. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11

0201 Case Size Multilayer Chip Inductors for High Frequency (HK 0603 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 12

0402 Case Size Multilayer Chip Inductors for High Frequency (HK 1005 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 13

0603 Case Size Multilayer Chip Inductors for High Frequency (HK 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 14

0805 Case Size Multilayer Chip Inductors for High Frequency (HK 2125 Series) . . . . . . . . . . . . . . . . . . . . . . . Page 15

Multilayer Chip Inductors - LK/CK/CKP Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16

0402 Case Size Multilayer Chip Inductors (LK 1005 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17

0603 Case Size Multilayer Chip Inductors (LK 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18

0805 Case Size Multilayer Chip Inductors (LK 2125 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19

0603 Case Size Multilayer Chip Inductors (CK 1608 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

0805 Case Size Multilayer Chip Inductors (CK 2125 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

1206 Case Size Multilayer Chip Inductors (CKP 3216 Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

Low Profile SMD Inductors (NR Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

NR3010 Type (1.0mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

NR4010 Type (1.0mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

NR4012 Type (1.2mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

NR4018 Type (1.8mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

NR6012 Type (1.2mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

NR8040 Type (4.2mm Max. Height) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22

High Current Ferrite Chip Beads - FB Series M Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23

0603 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

0805 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

1206 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

1806 Case Size High Current Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24

High Impedence Type Ferrite Chip Beads (FB Series M Type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25

Multilayer Ferrite Chip Beads - BK Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26

0201 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

0402 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

0402 Multilayer Ferrite Chip Beads for Power Lines (BKP Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

0603 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28

0603 Multilayer Ferrite Chip Beads for Power Lines (BKP Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28

0805 Multilayer Ferrite Chip Beads Standard Type (BK Series). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29

0805 Multilayer Ferrite Chip Beads for Power Lines (BKP Series) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29
