89438-002 datasheet, PDF - EEWORLD Datasheet

89438-002: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size193KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

89438-002 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	OTHER STACKING CONNECTOR: 15 CONTACTS; SHELL SIZE: 2/A
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	89438
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

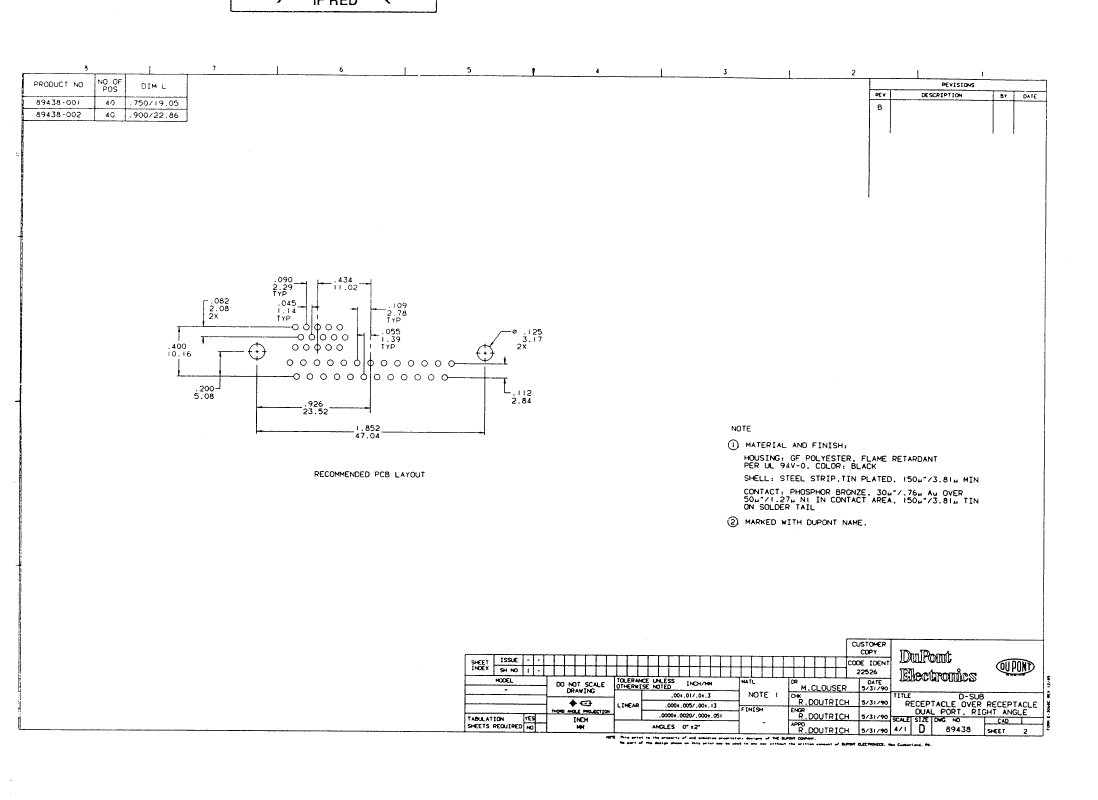

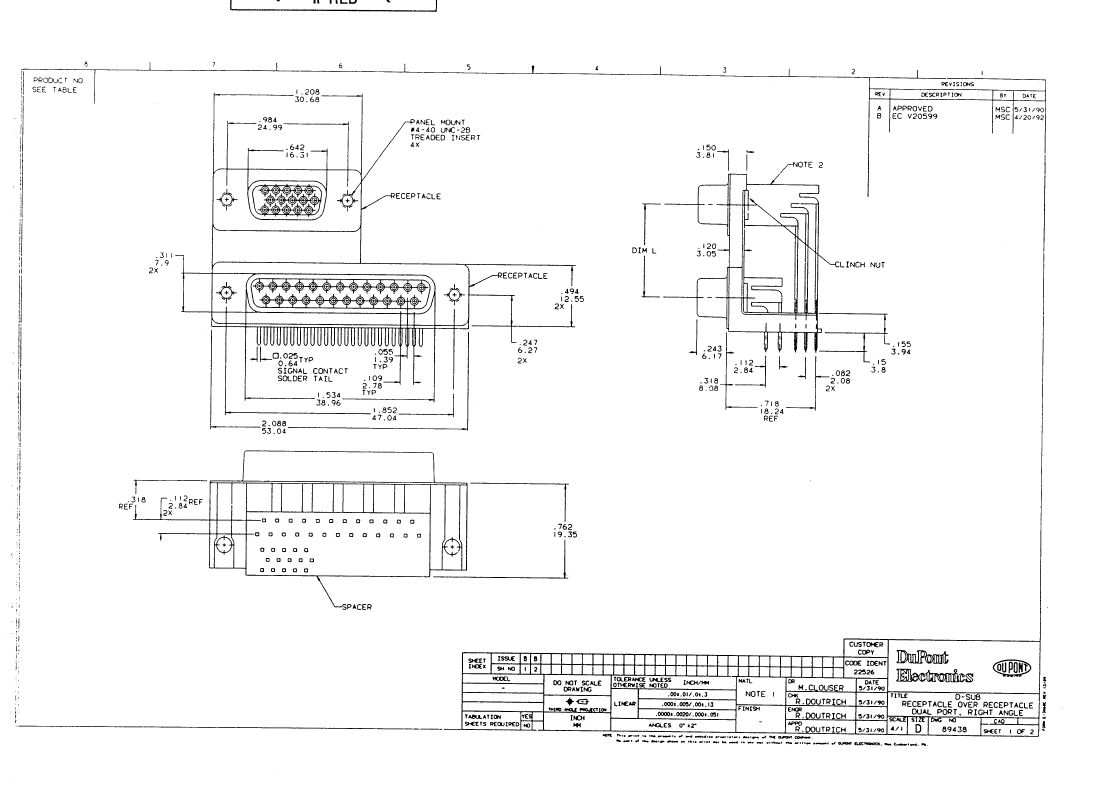

PDM: Rev:B

STATUS:

Released

Printed: Nov 10, 2004
