FN380-6-21

Description
AC Power Entry Modules 6A SNAP IN-1FUSE POWER ENTRY MODULES
CategoryThe connector    The connector
File Size718KB,5 Pages
ManufacturerSchaffner
Environmental Compliance
Download Datasheet Parametric View All

FN380-6-21 Online Shopping

Suppliers Part Number Price MOQ In stock
FN380-6-21 - - View Buy Now

FN380-6-21 Overview

AC Power Entry Modules 6A SNAP IN-1FUSE POWER ENTRY MODULES

FN380-6-21 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSchaffner
package instructionROHS COMPLIANTS
Reach Compliance Codecompliant
Other featuresSTANDARD: IEC 60939, UL 94V-2
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings6A, 250VAC
Installation typePANEL
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts3
Base Number Matches1
DATASHEET

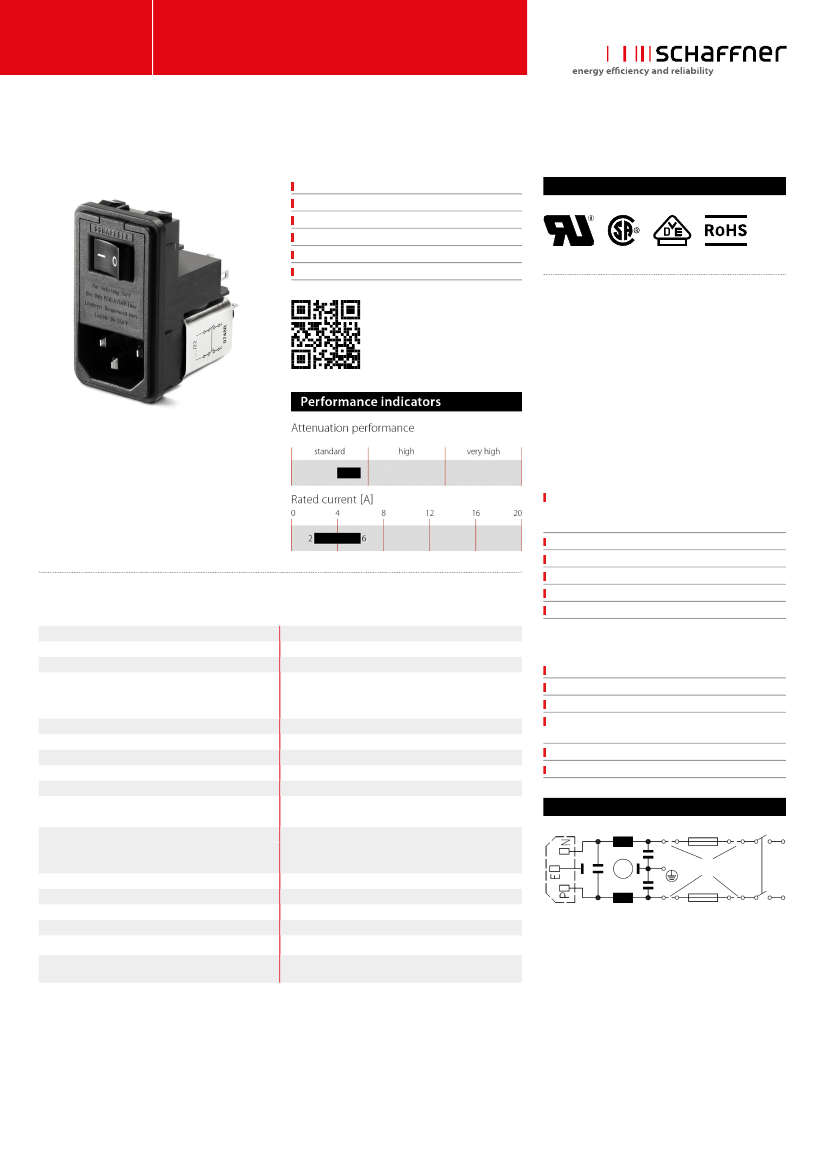

IEC Inlet Filters FN 380
Versatile Filtered Power Entry Module
Rated currents up to 6 A
Single or dual-fuse holder
Fuses Ø 6.3 x 32 mm Ø 5 x 20 mm
2-pole rocker switch
General purpose application
Optional medical versions (B type)
The FN 380 power entry module combines an IEC
inlet, a mains filter with a single or dual fuse holder
and a 2-pole rocker switch. Choosing FN 380 product
line brings you the rapid availability of a standard
filter associated with the necessary safety
acceptances. Standard IEC connector filters are a
practical solution helping you to pass EMI system
approval in a short time. A wide selection on
amperage ratings, fuse options, mounting
possibilities and filters for medical applications are
designed to offer you the desired solution.
Approvals
Features and benefits
Good conducted attenuation performance, based
on chokes with high saturation resistance and
excellent thermal behavior
Front or snap-in mounting
Single or dual-fuse holder
USA Ø 6.3 x 32 mm or EU Ø 5 x 20 mm fuses
2-pole rocker switch
Custom-specific versions are available on request
Maximum continuous operating voltage
Operating frequency
Rated currents
High potential test voltage
250 VAC, 50/60 Hz
50 to 400 Hz
2 to 6 A @ 40 °C max.
P –> PE 2000 VAC for 2 sec (standard types)
P –> N 760 VAC for 2 sec
P –> PE 2500 VAC for 2 sec (B types)
IP40 according to IEC 60529
-25 °C to +85 °C (25/85/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
UL 94 V-2 or better
550,000 hours
2-pole, dark not illuminated
Marking I - 0
Inrush current 51 A
6,000 on-off operations according to UL 1054, TV 5
10,000 on-off operations according to ENEC
50,000 cycles
6 A (4 A), 250 VAC*
6A, 125 VAC; 4 A, 250 VAC; 1/10 HP
6 A, 125 VAC; 4 A, 250 VAC; 1/10 HP
Blade terminals acc. DIN 46 244-A4.8-0.8 (do not
connect by soldering)
Technical specifications
Typical applications
Portable electrical and electronic equipment
Consumer goods
EDP and office equipment
Single-phase power supplies, switch-mode power
supplies
Test and measurement equipment
Medical equipment
Protection category
Temperature range (operation and storage)
Design corresponding to
Flammability corresponding to
MTBF @ 40°C/230V (Mil-HB-217F)
Function
Electrical specifications
Typical electrical schematic
Mechanical life
Switch ratings
Europe (ENEC)
USA (UL)
Canada (CSA)
Output connections

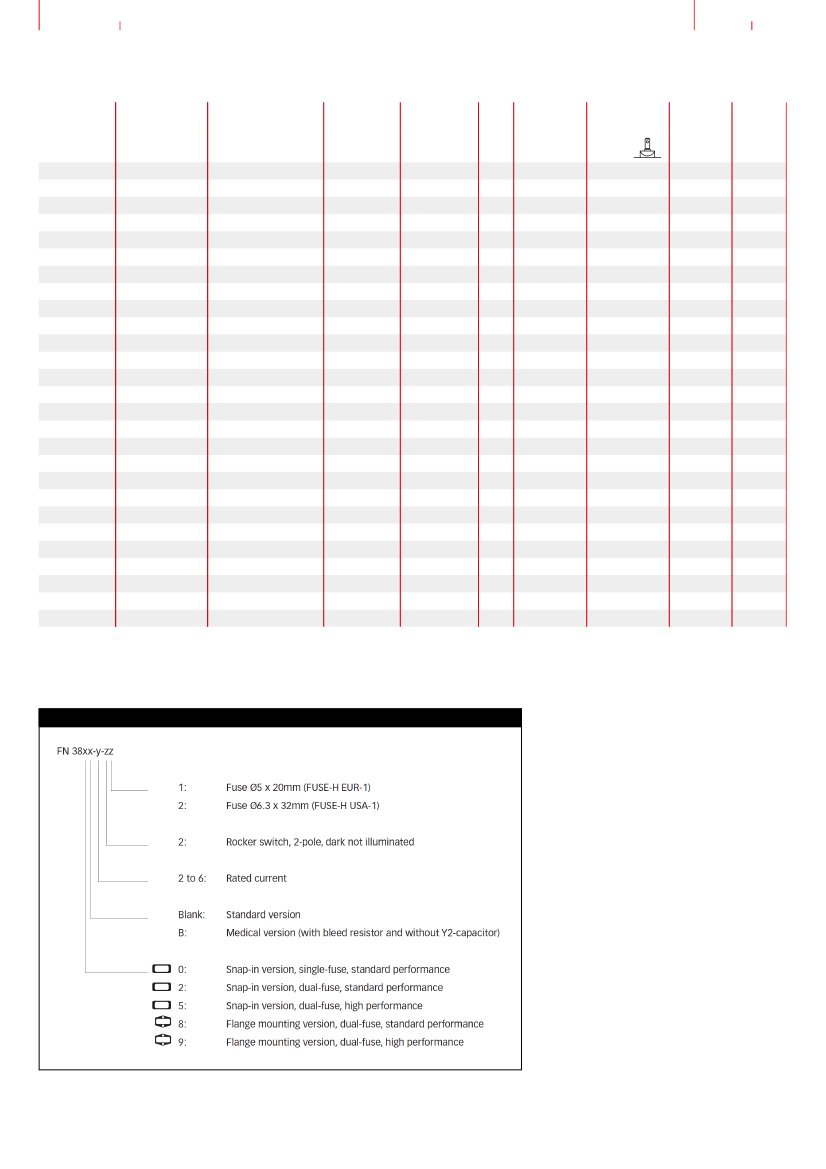

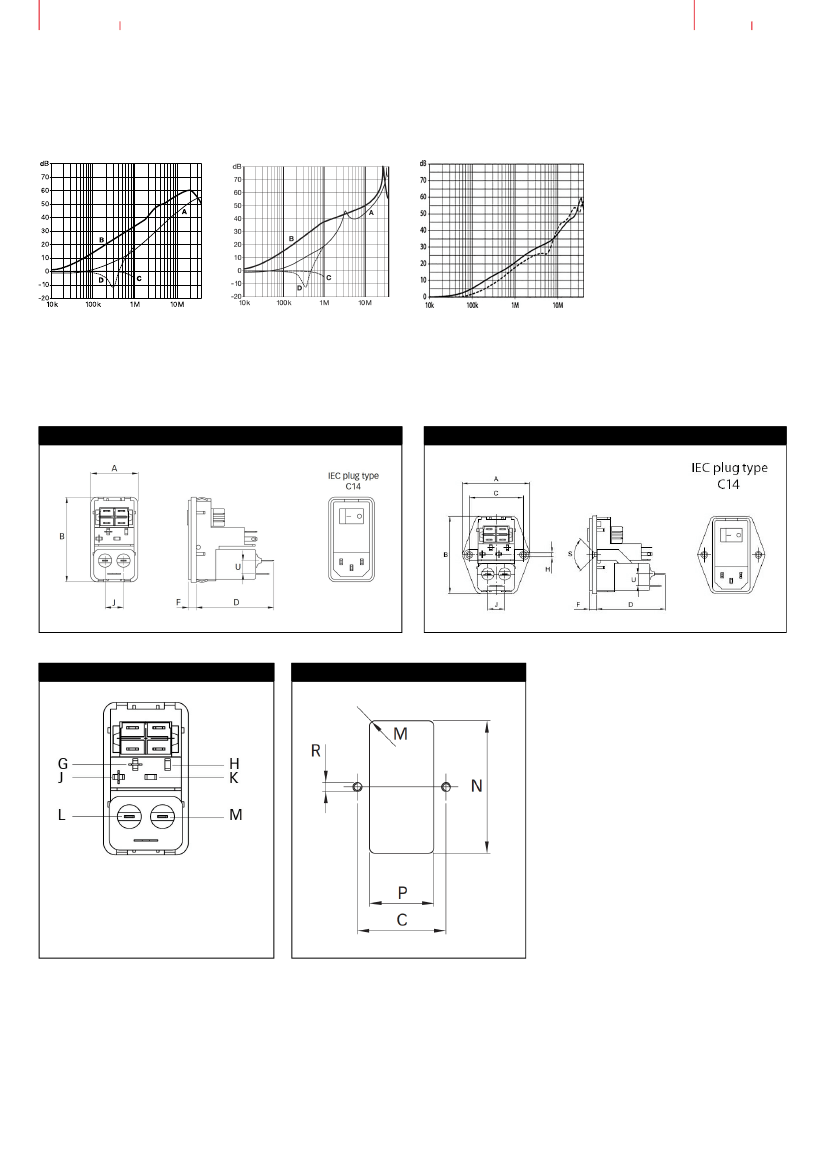

* Value in () relates to the inductive current charge: cos φ = 0.65
